Product Summary:

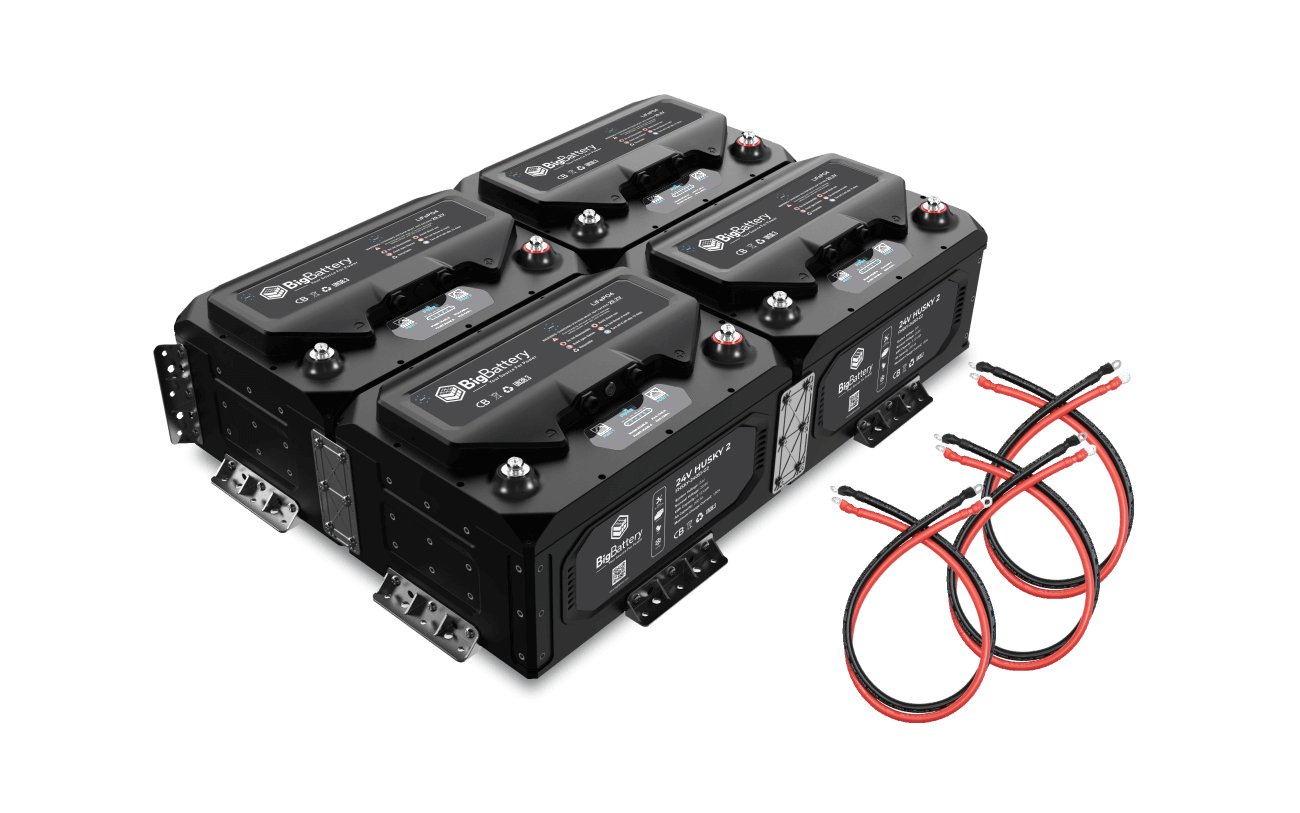

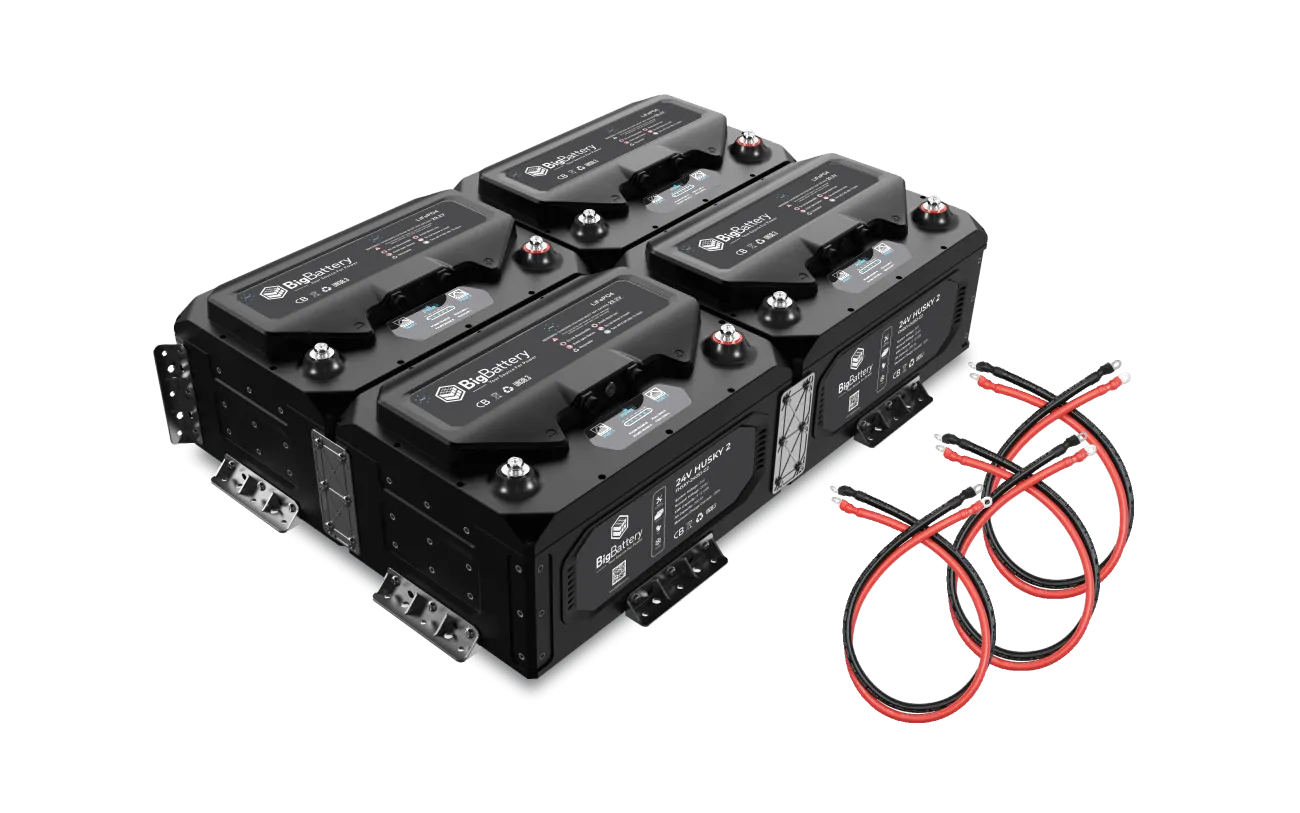

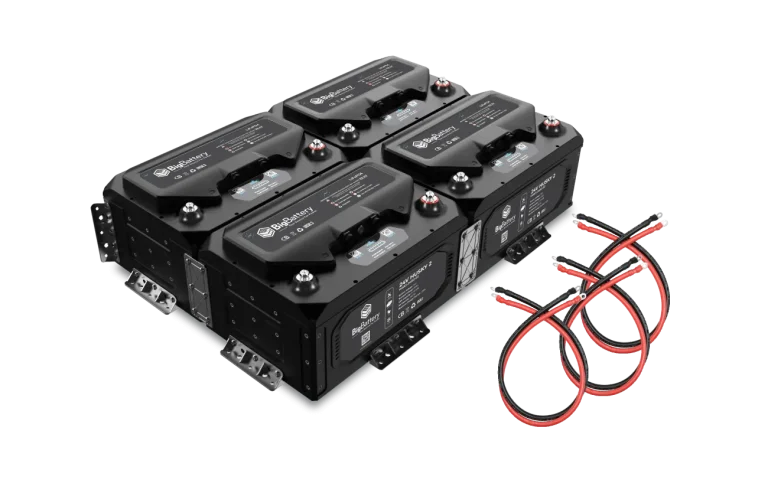

The 24V 20.48kWh LiFePO4 HUSKY 2 Kit is the latest and greatest from BigBattery, providing unmatched reliability and efficiency in your RVs, camper vans, and marine applications.



The HUSKY 2 is our most energy-dense 24V solution to date, designed to power your adventures no matter how far they take you. From its Tier 1 LFP cells to its generous operating parameters and wide temperature range, this battery redefines versatility and durability when it comes to lithium power storage. But that’s not all…



The HUSKY 2 comes with state-of-the-art features to enhance the safety and visibility of your power. Not only is it housed in an IP65-rated casing, and equipped with an advanced BMS capable of auto-balancing cells, but it also boasts a self-heating function to ensure you have reliable power through every winter excursion. Plus, the HUSKY 2 features full CANBus and RS485 communication protocols so you can always monitor the status and performance of your power.



Our HUSKY 2 Kit was designed to serve as a plug-and-play solution for your adventure vehicles and aquatic vessels, and comes with all cables and components included for a quick and easy installation, all while requiring zero routine maintenance. Equipped with the HUSKY 2, you’ll be powered and prepared to hit the road, or the water, worry-free every time. Shop the all-new 24V HUSKY 2 Kit today.

Designed For 24V Applications

  • LEAD ACID REPLACEMENT
  • CLASS A, B, & C RVs
  • CAMPER VANS
  • TOW-BEHIND TRAILERS
  • COMMERCIAL VEHICLES
  • FOOD TRUCKS
  • TROLLING MOTORS
  • FISHING BOATS
  • HOUSE BOATS
  • YACHTS

See More On YouTube

Battery Downloads

SKU#:K0752
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
CE Certificate:DownloadDOWNLOAD
UN38.3 Certificate:DownloadDOWNLOAD
Safety Data Sheet:DownloadDOWNLOAD

Battery Specifications

GTIN-12 (U.P.C.):850061252265
System Voltage:24V
Nominal Voltage:25.6V
Chemistry:LiFePO4
kWh Capacity:5.12kWh
Ah Capacity:200Ah
Charging Voltage Range:27.8 – 28V
Max Charge Voltage:29.2V
Operating Voltage Range:24 – 28.8V
Suggested Low Voltage Cutoff:24 – 25.4V
BMS Cutoff Range:21 – 23.5V
Cell Configuration:8S
Max Continuous Discharge Current:200A
Max Continuous Power:5120W
Max Discharge Peak Current:300A (Max 5 seconds)
Max Charge Current:150A
Charge Temperature Range:-4°F – 113°F (-20°C – 45°C)
Discharge Temperature Range:-4°F – 131°F (-20°C – 55°C)
Optimal Discharge Temperature Range:59°F – 95°F (15°C – 35°C)
Storage Temperature Range:-4°F – 113°F (-20°C – 45°C) (Max 6 months)
Weight:95 lb (43.1 kg)
Depth:12.6 in (320 mm)
Width:18.1 in (460 mm)
Height:9.8 in (249 mm)
Max Connections:Up to (16) Parallel
Protection Rating:IP65 / NEMA 4X
Communications:CANBus / RS485
Self-Heating:Yes
×
