Product Summary:

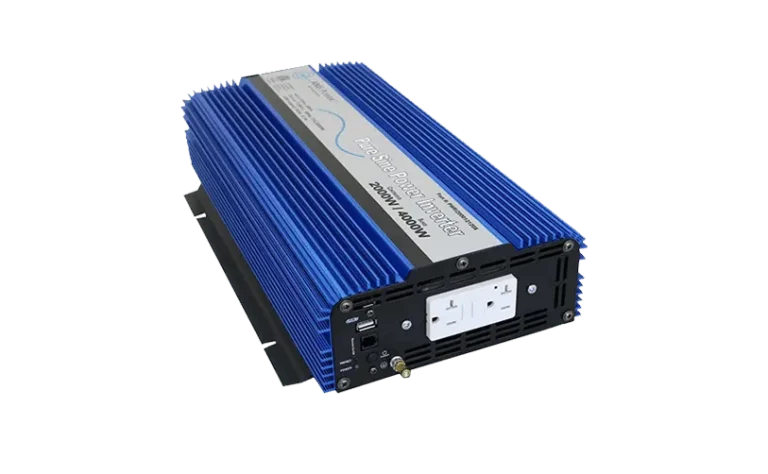

2000W Inverter from AIMS Power®. Designed for a diverse range of applications, this pure sine inverter guarantees reliable DC to AC power conversion for your RV, camper van, emergency power supply, industrial tools, backup system, or mobile power setup. Plus, this inverter’s pure sine wave output allows the unit to provide cleaner power, with greater efficiency, to your equipment and appliances than the modified sine alternative. This means less noise coming from your power system, motors that run cooler, and equipment that runs smoother from start to finish, for even the most sensitive of use-cases.

Features

  • 20A Resettable GFCI AC Outlet
  • 2.1A USB Outlet
  • Dual Thermally-Controlled Cooling Fans
  • LED Power & Fault Indicators
  • Low Voltage Alarm
  • Overload, Over Temperature & Short Circuit Protections
  • ETL Listed to UL458 Standards
  • Compact, Lightweight & Portable

Suitable For

  • 12V Power Systems
  • RV & Camper Van Systems
  • Home, RV & Van Appliances
  • Industrial Power Tools
  • Emergency & Backup Power
  • Mobile Power Conversion

Inverter Downloads

SKU#:INV006
User Manual:DownloadDOWNLOAD

Inverter Specifications

Battery Voltage:12VDC
Continuous Output Power:2000W
Surge Power (Peak):4000W
Operating Voltage (DC Input):9.5 – 16VDC
Output Voltage:120VAC
Output Waveform:Pure Sine Wave
Output Frequency:60Hz
Efficiency (Full Load):90%
AC Current:16.6A
Battery Low Voltage Alarm:9.8V (±0.5V)
Battery Low Voltage Shutdown:9.5V (±0.5V)
Low Input Voltage Shutdown:9.5V (±0.5V)
High Input Voltage Shutdown:16V
Min. Operating Temperature (No Load):0ºC (32ºF)
Max. Operating Temperature (Full Load):40ºC (104ºF)
Weight:11.8 lbs
Depth:17.1 in
Width:9.4 in
Height:3.9 in
×
