12V MultiPlus-II 120V Inverter/Charger
$1,052
12 Year Warranty
Applied To Batteries Only
[pr_view_popup_btn]

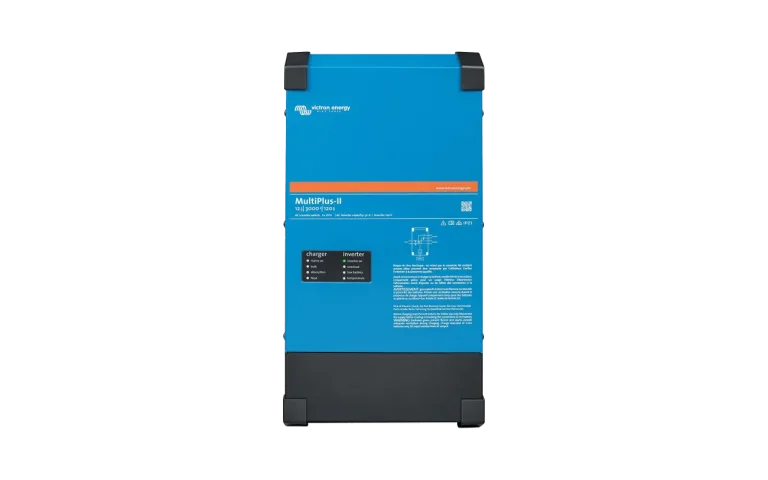

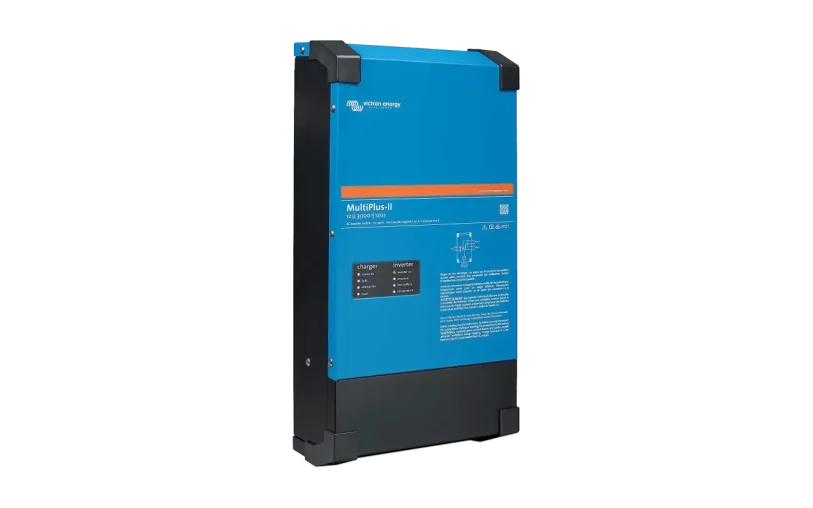

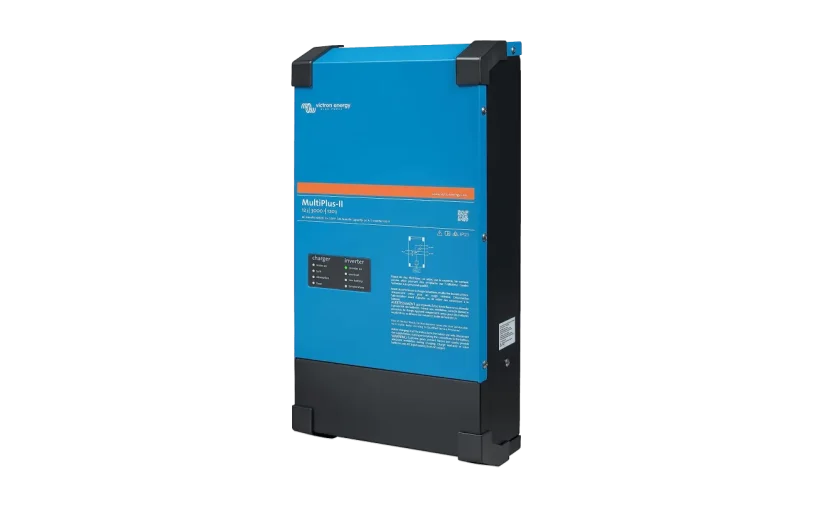

12V MultiPlus-II 120V Inverter/Charger
$1,052
[pr_view_size_popup]
The MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 100A.
A maximum grid or generator current can be set. The MultiPlus-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).
PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the MultiPlus-II will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.
The MultiPlus-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters.
Tech Specs
| SKU: | INV017 |
| GTIN-12 (U.P.C.): | 850061252418 |
| Battery Voltage: | 12VDC |
INVERTER OUTPUT
| Rated Power: | 3000 VA / 2400 W |
| Peak Power: | 5500 W |
| Parallel Capacity: | Yes |
| Nominal Output Voltage RMS: | N/A |
| Output Frequency: | 60 Hz ± 0.1% |
| AC Voltage Regulation: | 120 VAC ± 2% |
| Inverter Efficiency (Peak): | 94% |
| Waveform: | Pure Sine Wave |
| Transfer Time: | N/A |
AC INPUT
| Voltage: | 120VAC |
| Selectable Voltage Range: | 90-140 VAC |
| Frequency Range (Auto-Sensing): | 45 – 65 Hz |
| Max. Charging Current: | 120A |
SOLAR CHARGER
| Max. PV Array Power: | N/A |
| Max. PV Charge Current: | N/A |
| Max. PV Array Open Circuit Voltage: | N/A |
| Max. Efficiency: | N/A |
| No. of Independent MPP Trackers / Strings per MPP Tracker: | N/A |
| MPPT Range at Operating Voltage: | N/A |
DIMENSIONS
| Weight: | 42 lbs |
| Depth: | 5.8 in |
| Width: | 10.9 in |
| Height: | 21.1 in |
OPERATING ENVIRONMENT
| Operating Temperature: | N/A |
| Altitude: | N/A |
| Protection Rating: | N/A |
| Spec Sheet Download | Click Here |
