Product Summary:
The EG4 WallMount All Weather Battery (14.3kWh, 200A) paired with the EG4 8K Hybrid Inverter (8,000W / 12,000W PV input) delivers a powerful, all-in-one energy storage solution. With 8,000+ cycles at 80% DoD, EMP protection, and closed-loop communication, this system provides reliable backup power, peak shaving, and smart load control. Dual MPPTs, rapid 20ms UPS switching, and remote monitoring make it perfect for home or off-grid energy independence.

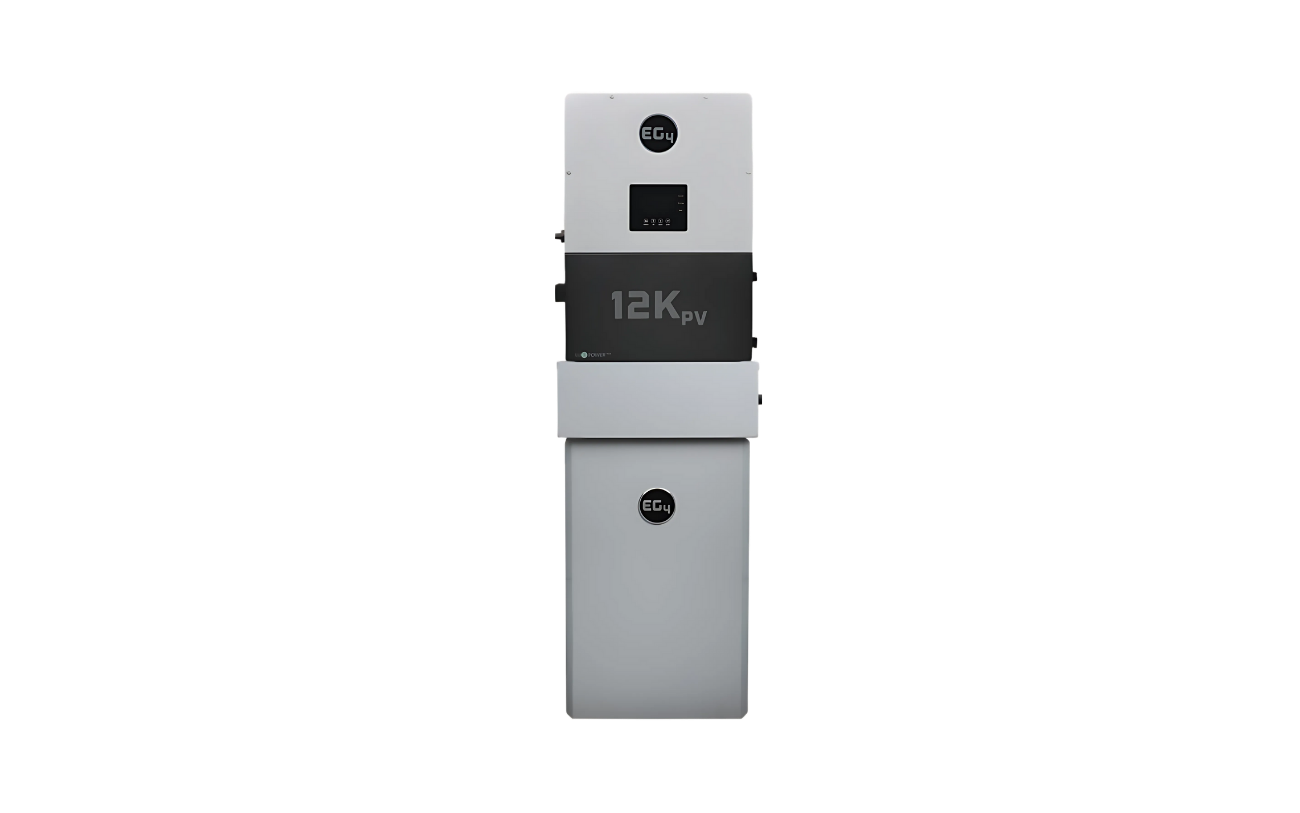

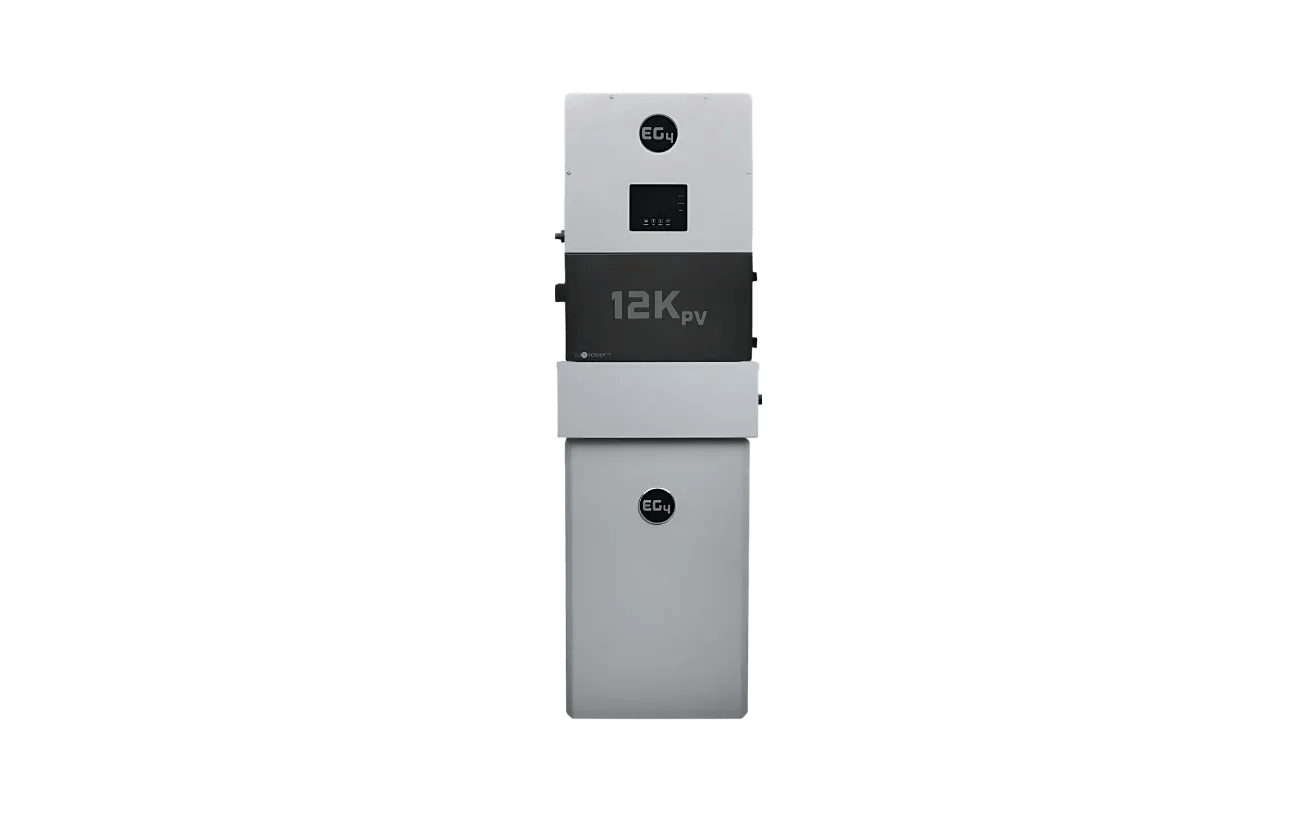

EG4 Wallmount All Weather Battery & 12kPV Hybrid Inverter (ESS) | 14.3-85.8kWh | UL9540 | Grid-Tied Home Solar System (12kW-36kW PV)
$7,135.00
SKU# K0104
Battery Selected
1× EG4 All Weather
Total Capacity
14.3 kWh
Inverter Selected
1× EG4 12kPV
Input / Output
12 kW / 8 kW
Choose Your ESS Configuration*
1x Inverter
Standard
2x Inverter
Large
3x Inverter
3 Phase
Quantity:
.
See More On YouTube
Battery Downloads
DOWNLOAD

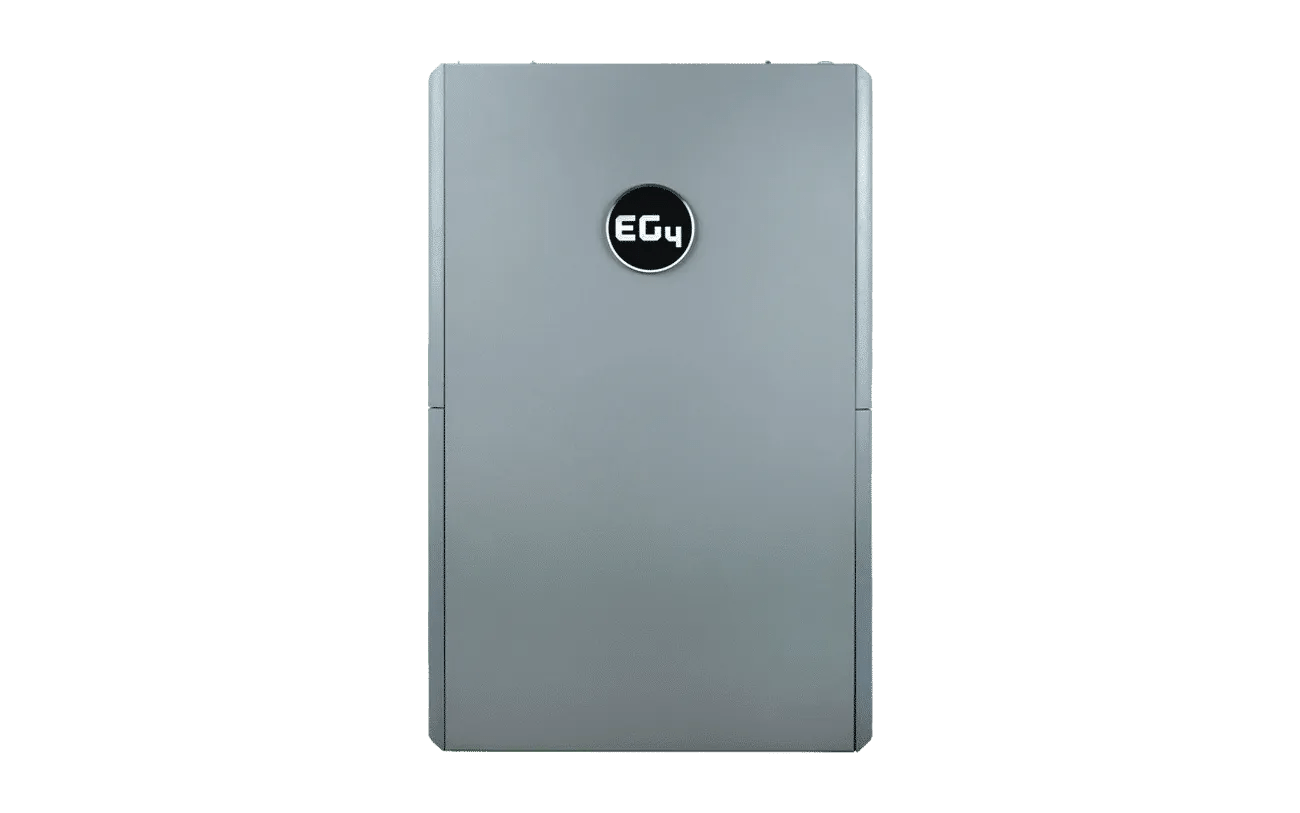

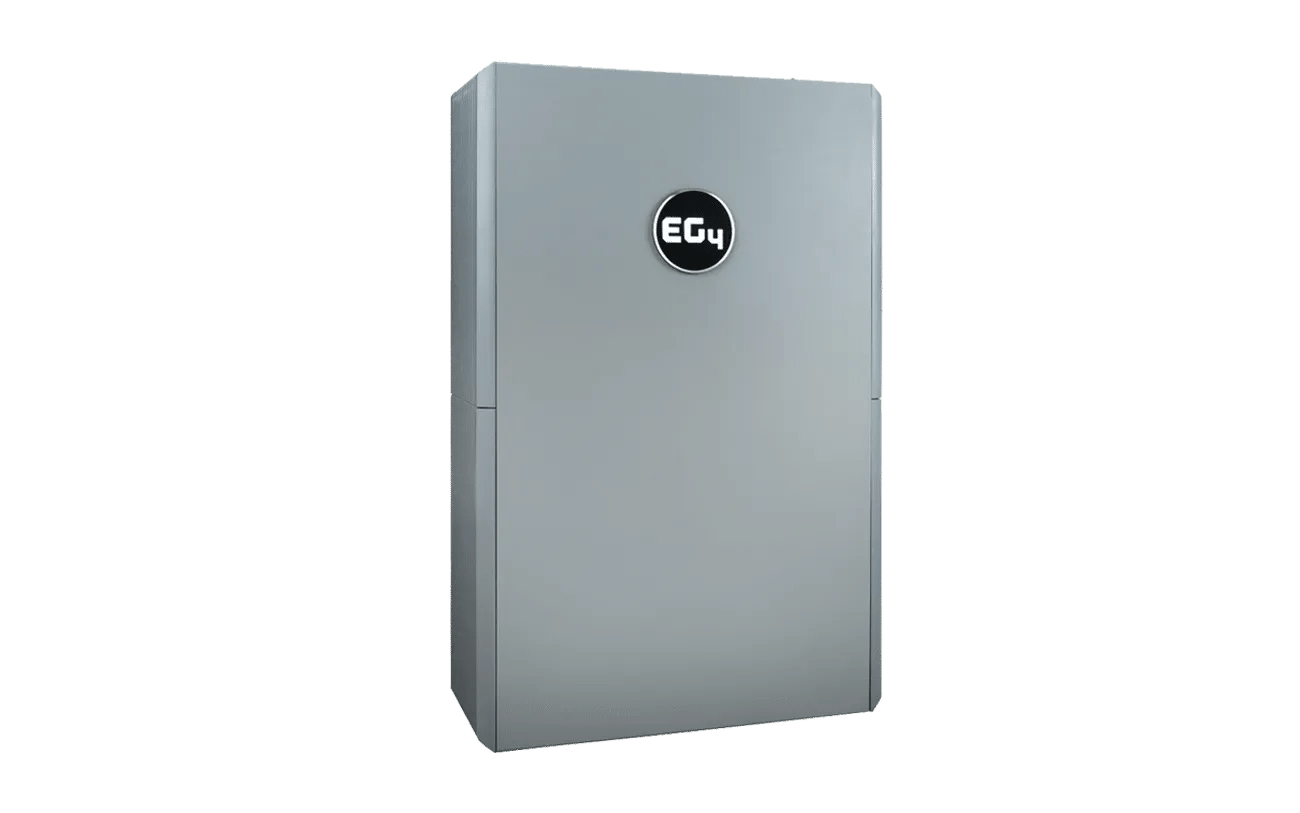

GO TO LINKBattery Specifications
Nominal Voltage:51.2V
Chemistry:Lithium Iron Phosphate (LiFePO4)
kWh Capacity:14.3kWh
Ah Capacity:280Ah
BMS Charging Voltage (Bulk/Absorb):56.0V (±0.8V)
Rec. Charging Voltage (Bulk/Absorb):56.2V (±0.2V)
Rec. Float Setting:54V (±0.2V)
Rec. SoC Cutoff Setting:20%
Max. Continuous Charge Current:140A
Max. Continuous Discharge Current:140A (200A Max. Continuous for 30 min)
Rec. Charge Current:60 – 140A
Rec. Discharge Current:60 – 140A
Max Continuous Discharge Rate:10,240W
Voltage:56V
Power Consumption:224W
Internal Temperature Cutoffs:≤32ºF (On) | ≥41ºF (Off)
Charging Temperature Range:32ºF – 122ºF (0ºC – 50ºC)
Discharging Temperature Range:-4ºF – 131ºF (-20ºC – 55ºC)
Storage Temperature Range:32ºF – 113ºF (0ºC – 45ºC)
Operating Altitude:<16,404 ft (<5,000 m)
Protection Rating:IP65
Communications:RS485 | CANBus
Weight:308.6 lbs (140 kg)
Depth:9.1 in (232 mm)
Width:22.3 in (566 mm)
Height:36.1 in (916 mm)
Inverter Downloads

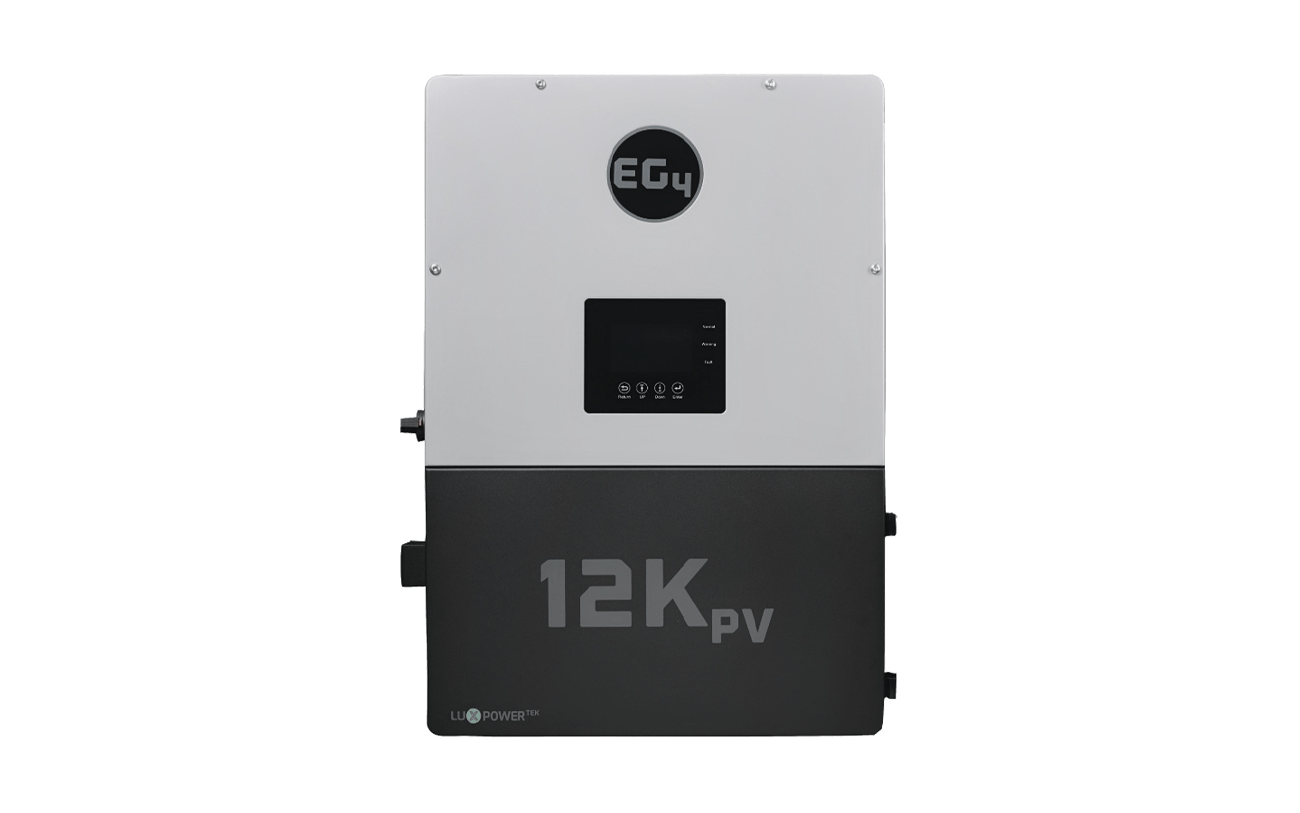

Inverter Specifications
Nominal AC Voltage:120/240VAC; 120/208VAC (L1/L2/N required)
Frequency:50/60Hz
Max. AC Input Power:8000W
Min. Generator Size:>5000W
Max. Gen | Grid Passthrough Current:80A | 80A
Max. Output Current:33.3A @ 240VAC | 38.5A @ 208VAC
Output Voltage:120/240VAC; 120/208VAC
Nominal Power Output:8000W
Output Frequency:50/60Hz
Power Factor:0.99 @ Full Load
Reactive Power Adjust Range:±0.8
Max Cont. Line Wattage:4000W
Peak Power:0.5 s / 1 s / 1 min / 12 min: 16kW / 12kW / 10kW / 8.8kW
Operating Frequency:50/60Hz
THD (V) @ Full Load:<3%
Transfer Time:Single: 20 ms – Default, 10 ms – Selectable; Parallel: 20 ms
Number of MPPTs:2
Inputs per MPPT:2
Max. Usable Input Current:25/25A; 25A per MPPT | 41.6A in total
Max. Short Circuit Input Current:31/31A
DC Input Voltage Range*:100–600 VDC
Unit Startup Voltage:100 VDC
MPPT Operating Voltage Range**:120–500 VDC
Nominal MPPT Voltage:360 VDC
MPPT Voltage High Protection***:550 VDC
Maximum Utilized Solar Power:12000W
Recommended Maximum Solar Input:15000W
Maximum Efficiency (PV → Grid):97.5%
Maximum Efficiency (Battery → Grid):94%
CEC Weighted Efficiency:96.4%
Maximum Efficiency (PV → Battery):99.9%
Idle Consumption (Standby Mode):<55W
Compatible Battery Types:Lead-Acid / Lithium
Max. Charge/Discharge Current:167A @ 48 VDC
Nominal Voltage:48 VDC
Voltage Range:40–60 VDC (Lithium); 40–60 VDC (Lead-Acid)
Recommended Battery Capacity per Inverter:>200Ah
Max. Units in Parallel:10
Product Dimensions (H×W×D):29.5×20.5×11.2 in (750×520×285 mm)
Unit Weight:110 lbs. (50 kg)
Design Topology:High Frequency – Transformerless
Relative Humidity:0–100%
Operating Altitude:<2000m (<6561 ft)
Operating Ambient Temperature Range:-13°F – 140°F (-25°C – 60°C)
Storage Ambient Temperature Range:-13°F – 140°F (-25°C – 60°C)
Noise Emission (Typical):<50 dB @ 3 ft
Locked Rotor Amps (LRA):195A
Communication Interface:RS485/Wi-Fi/CAN
Standard Warranty**:10-year standard warranty
Enclosure Rating:NEMA 4X
Protections:PV Arc Fault Protection, PV Ground Fault Protection, PV Reverse Polarity Protection, Pole Sensitive Leakage Current Monitoring Unit, Surge Protection Device, integrated PV disconnect
Compare Battery & Inverter
EG4 12kPV Inverter: 10-Year EG4 Manufacturer Warranty
EG4 All Weather Battery: 10-Year EG4 Manufacturer Warranty
×
