      EG4 6kW (8kPV) OFF-GRID INVERTER

      $1,399

      10 Year Warranty

      Applied To Batteries Only

      [pr_view_popup_btn]

      EG4 6kW (8kPV) OFF-GRID INVERTER

      $1,399

      ||
      [pr_view_size_popup]
      SKU INV026 Categories , SKU#: ON BACKORDER || SHIPS JULY 18TH

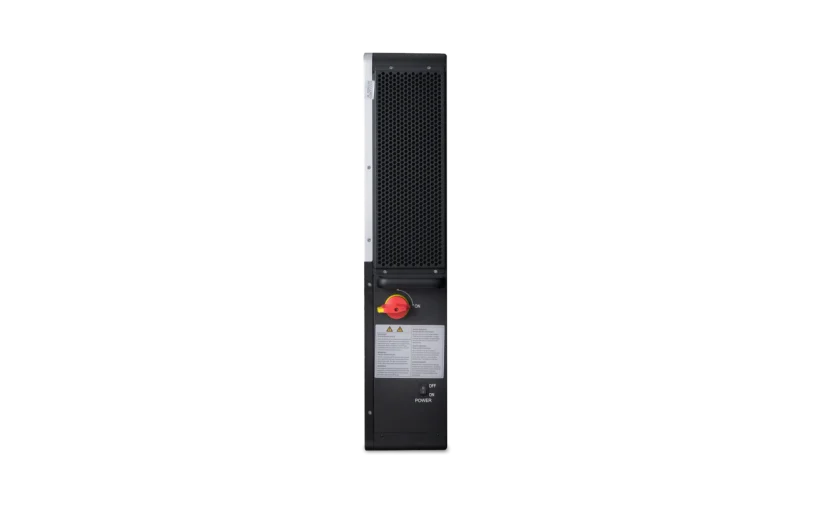

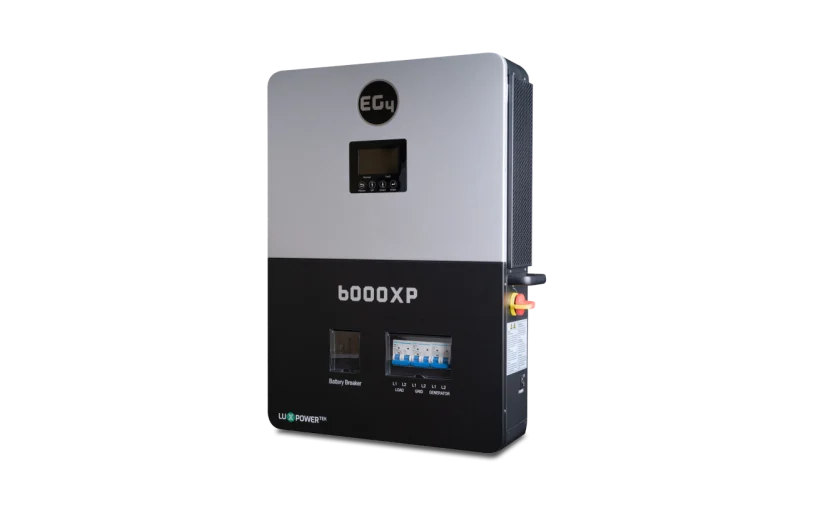

      This cutting-edge 6000XP All-in-One Inverter & Charger from EG4 is a multifunctional, split-phase off-grid and solar inverter, capable of supporting even the most robust home power systems with a rated power of 6000W and the ability to handle PV arrays of up to 8000W. This high-tech inverter features a built-in switchgear for simple, secure installations, and comes equipped with an in-depth LCD touch screen interface and remote monitoring capabilities for enhanced visibility and a smoother user experience, as well as 2 MPPT inputs, built-in circuit breakers, and an integrated UPS module for seamless input switching in only 15 – 30ms. Plus, by leaving behind outdated transformer-based designs, the 6000XP inverter is able to remain lightweight and energy-efficient, consuming minimal power during idling periods, without having to compromise on surge capacity or line imbalance capabilities.



      The 6000XP inverter supports a variety of working modes and system configurations, so whether you’re looking to enhance your home’s solar backup system, or upgrade your homestead’s off-grid ESS setup, this inverter can handle a wide range of home power applications. Plus, through its smart load control, AC coupling abilities, and peak shaving function, you can meet your power needs and protect your home against unstable grids and rolling blackouts, while seeing huge savings each month on your electric bill. Order today to optimize your home’s power with the state-of-the-art 6000XP All-in-One Inverter & Charger from EG4!

      Tech Specs

      SKU:INV026

      AC INPUT

      AC Voltage:120V AC / 240V AC
      AC Frequency:50 Hz / 60 Hz
      Max. Continuous AC Current:37.5A @ 240V
      Max. AC Input Power:9000W
      AC Bypass:50A

      AC OUTPUT

      Output Voltage:120V AC / 240V AC
      Output Frequency:50 Hz / 60 Hz
      Max. Continuous Output Current:25A @ 240V
      Output Power:6000W
      Surge Capacity:12000W (3.5 sec) / 11000W (5 sec)
      Power Factor:0.99 (Full Load)
      Reactive Power Adjustment Range:-0.8 - 0.8 Leading Adjustable
      Total Harmonic Distortion:<3%
      Switching Time:<15 ms (Single) / <30 ms (Parallel)

      PV INPUT

      No. of MPPTs (Inputs per MPPT):2 (1)
      Max. Input Current:17A / 17A
      Max. Short Circuit Input Current:25A / 25A
      DC Input Voltage Range:100 - 480V DC
      Start Up Voltage:100V DC ± 10V DC
      MPPT Operating Voltage Range: 120 - 385V DC
      MPPT Voltage:320V DC
      Max. PV Array Power: 8000W (4000W per MPPT)
      MPPT Efficiency:99%

      BATTERY

      Nominal Voltage:48V DC
      Battery Voltage Range:46.4 - 60V DC
      Max. Discharge Current:140A
      Max. Charge Current:125A
      DC Cut-Off Voltage:59V DC
      DC Recovery Voltage:57.4V DC
      Charge Cut-Off Voltage:58.4V DC

      OPERATING ENVIRONMENT

      Operating Temperature:32ºF - 113ºF (0ºC - 45ºC)
      Storage Temperature:5ºF - 140ºF (-15ºC - 60ºC)
      Altitude:<6,561 ft (2000 m)
      Relative Humidity:5 - 95%
      Typical Noise Emission:<58 dB
      Protection Rating:IP20
      Max. Parallel Connections:16

      DIMENSIONS

      Weight:52.9 lbs (24 kg)
      Depth:5.25 in (132 mm)
      Width:18 in (457 mm)
      Height:25.5 in (648 mm)
      Spec Sheet:
      User Manual:
      Monitoring System Guide:
      Monitoring Adapter Installation Guide:
      UL1741 Certificate:
      Warranty:
