About this item
The 72V RAPTOR 2 – 7.68kWh LiFePO₄ Battery is a high-voltage, high-performance lithium solution designed for golf carts, airport ground support equipment, resort transport vehicles, and industrial machinery. Delivering 7.68kWh of energy in a compact, energy-dense design, the RAPTOR 2 provides strong, consistent power for demanding 72V applications. Built with Tier 1 LiFePO₄ cells, the RAPTOR 2 ensures long-lasting performance, enhanced safety, and superior efficiency. Its advanced Battery Management System (BMS) with automatic cell balancing protects against voltage, current, and temperature risks while optimizing battery lifespan. Engineered for real-world environments, the battery features an IP65-rated, vibration-resistant enclosure for protection against dust, water, and harsh operating conditions. With an integrated LED state-of-charge indicator and RS485 communication, users can monitor performance in real time and maintain system visibility with ease. Designed for durability, reliability, and seamless integration, the RAPTOR 2 is ideal for continuous-duty applications where power, uptime, and efficiency are critical. Ships From: Texas, USA
Warranty: 12 Years
Support: Lifetime USA-Based Tech Support
Compatibility
Best-Fit Applications:
- Golf carts (72V systems)
- Airport ground support equipment
- Resort and hospitality transport vehicles
- Industrial equipment and material handling
System Compatibility:
- Designed for 72V battery systems
- Suitable for high-voltage mobile and industrial applications
- Integrates with compatible controllers and vehicle systems
Key Features
- 7.68kWh LiFePO₄ Capacity (72V)High-energy, high-voltage lithium performance
- High Voltage System DesignOptimized for demanding 72V applications
- Tier 1 Lithium CellsSafe, stable, and long-lasting battery chemistry
- Advanced BMS with Cell BalancingProtects and optimizes battery performance
- IP65-Rated EnclosureBuilt for dust and water resistance in harsh environments
- Vibration-Resistant ConstructionIdeal for industrial and mobile use
- LED State-of-Charge IndicatorQuick visual battery status monitoring
- RS485 CommunicationEnables system integration and real-time data access
- High Power OutputConsistent performance under heavy load conditions
- Maintenance-Free OperationNo watering or routine servicing required
- Long Cycle LifeBuilt for years of reliable, daily use
A high-voltage lithium battery built for performance, durability, and continuous operation across demanding commercial and industrial applications.
Real Installations From Customer’s Like You!
Enter your build here to show off your build and receive a gift-box from us! Selected photos will be featured on our website and product pages.
Tech Specs
| SKU: | FRPTR-72076-G2 |
| GTIN-12 (U.P.C.): | 850061252371 |
| System Voltage: | 72V |
| Nominal Voltage: | 76.8V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 7.68kWh |
| Ah Capacity: | 100Ah |
| Charging Voltage Range: | 85.2 – 87.6V |
| Max Charge Voltage: | 87.6V |
| Operating Voltage Range: | 72 – 87.6V |
| Suggested Low Voltage Cutoff: | 72 – 76.2V |
| BMS Cutoff Range: | 66V – 70.5V |
| Cell Configuration: | 24S |
| Max Continuous Discharge Current: | 150A |
| Max Continuous Power: | 7680W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 100A |
| Charge Temperature Range: | 32°F – 113°F (0°C – 45°C) |
| Discharge Temperature Range: | -4°F – 149°F (-20°C – 65°C) |
| Optimal Discharge Temperature Range: | 59°F – 95°F (15°C – 35°C) |
| Storage Temperature Range: | 23°F – 95°F (-5°C – 35°C) (Max 3 months, SoC >50%) |

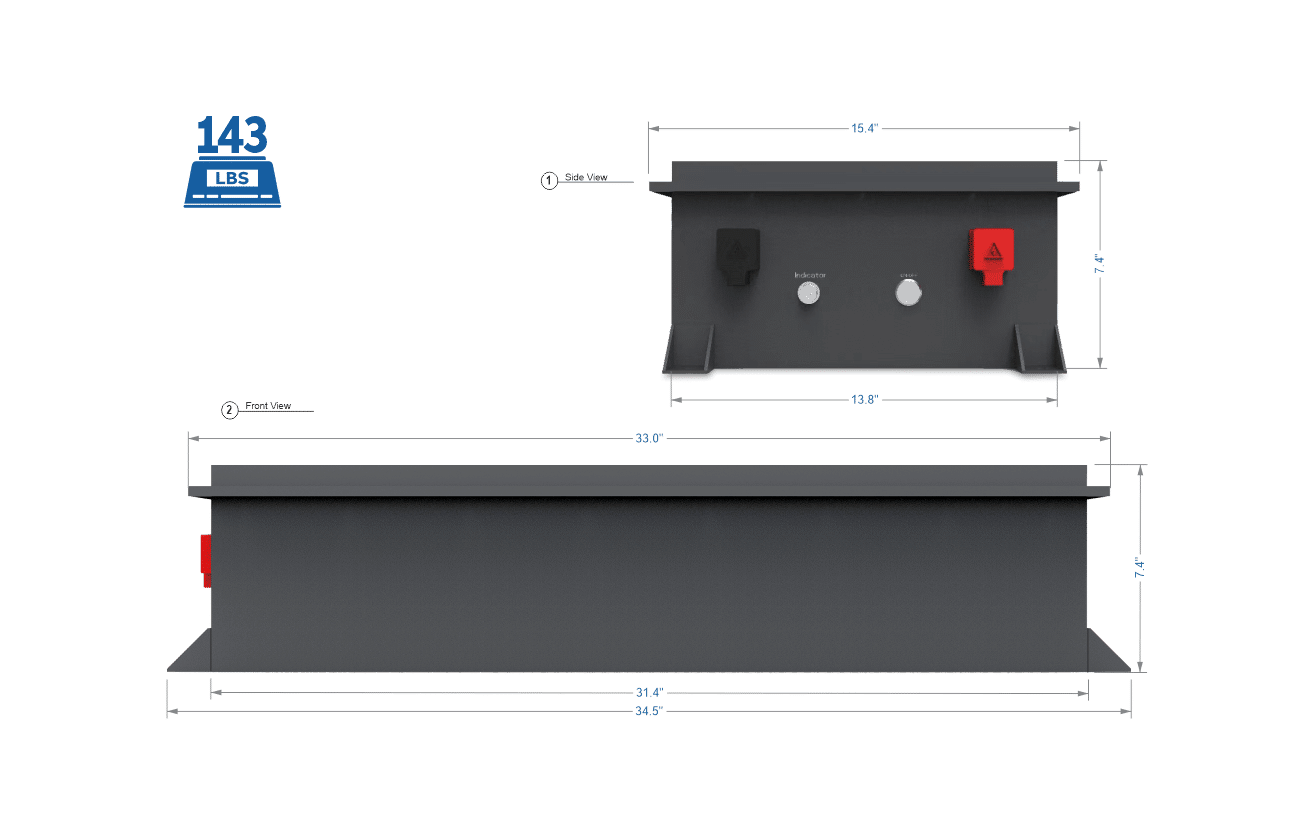

| Weight: | 143 lb (64.9 kg) |
| Depth: | 15.3 in (389 mm) |
| Width: | 34.5 in (876 mm) |
| Height: | 7.4 in (188 mm) |
| Protection Rating: | IP65 / NEMA 4X |
| Communications: | RS485 |
| Spec Sheet: | Spec Sheet |
| User Manual: | User Manual |
| UN38.3 Certificate: | UN38.3 Certificate |
Designed For 72V Applications
- 72V GOLF CARTS
- EV UTVs & LSVs
- LEAD ACID REPLACEMENT
- INDUSTRIAL EQUIPMENT
- FORKLIFTS
- LIGHT TOWERS
- DIGITAL SIGNS
- EMERGENCY BACKUP
12-Year Warranty
Real Installations From Customer’s Like You!
Enter your build here to show off your build and receive a gift-box from us! Selected photos will be featured on our website and product pages.
Tech Specs
| SKU: | FRPTR-72076-G2 |
| GTIN-12 (U.P.C.): | 850061252371 |
| System Voltage: | 72V |
| Nominal Voltage: | 76.8V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 7.68kWh |
| Ah Capacity: | 100Ah |
| Charging Voltage Range: | 85.2 – 87.6V |
| Max Charge Voltage: | 87.6V |
| Operating Voltage Range: | 72 – 87.6V |
| Suggested Low Voltage Cutoff: | 72 – 76.2V |
| BMS Cutoff Range: | 66V – 70.5V |
| Cell Configuration: | 24S |
| Max Continuous Discharge Current: | 150A |
| Max Continuous Power: | 7680W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 100A |
| Charge Temperature Range: | 32°F – 113°F (0°C – 45°C) |
| Discharge Temperature Range: | -4°F – 149°F (-20°C – 65°C) |
| Optimal Discharge Temperature Range: | 59°F – 95°F (15°C – 35°C) |
| Storage Temperature Range: | 23°F – 95°F (-5°C – 35°C) (Max 3 months, SoC >50%) |
| Weight: | 143 lb (64.9 kg) |
| Depth: | 15.3 in (389 mm) |
| Width: | 34.5 in (876 mm) |
| Height: | 7.4 in (188 mm) |
| Protection Rating: | IP65 / NEMA 4X |
| Communications: | RS485 |
| Spec Sheet: | Spec Sheet |
| User Manual: | User Manual |
| UN38.3 Certificate: | UN38.3 Certificate |
Designed For 72V Applications
- 72V GOLF CARTS
- EV UTVs & LSVs
- LEAD ACID REPLACEMENT
- INDUSTRIAL EQUIPMENT
- FORKLIFTS
- LIGHT TOWERS
- DIGITAL SIGNS
- EMERGENCY BACKUP
See More On YouTube
12-Year Warranty
Frequently Asked Questions
Can I convert my 72V golf cart to lithium?
Yes. The RAPTOR 2 delivers 7.68kWh at 100Ah in a single 72V unit, replacing a bank of lead-acid batteries. It integrates with compatible controllers and vehicle systems, so confirm your controller specification, then swap the pack rather than rebuilding the cart.
How far will a 72V RAPTOR 2 take a golf cart?
Range depends on terrain, load and driving style. A 72V cart typically draws 150 to 250Wh per mile, putting 7.68kWh in the region of 30 to 50 miles on flat ground. Hills, passengers and frequent stops reduce it.
Does the RAPTOR 2 work in a forklift or industrial equipment?
Yes. It is built for 72V golf carts, airport ground support equipment, resort transport vehicles, industrial machinery, material handling, light towers and digital signs. With 150A continuous discharge and 300A peak, it handles continuous-duty industrial loads.
What charger do I need for the RAPTOR 2?
A 72V lithium charger delivering up to 87.6V DC. BigBattery offers the 72V 15A ring terminal charger and a 72V 13A IP65 weatherproof charger. A lead-acid charger uses the wrong profile and will leave the pack undercharged.
Is the RAPTOR 2 waterproof?
It carries an IP65 / NEMA 4X rating, meaning protected against dust and water jets from any direction, with vibration-resistant construction for mobile and industrial use. It is rated for washdown and weather exposure, though not immersion.
