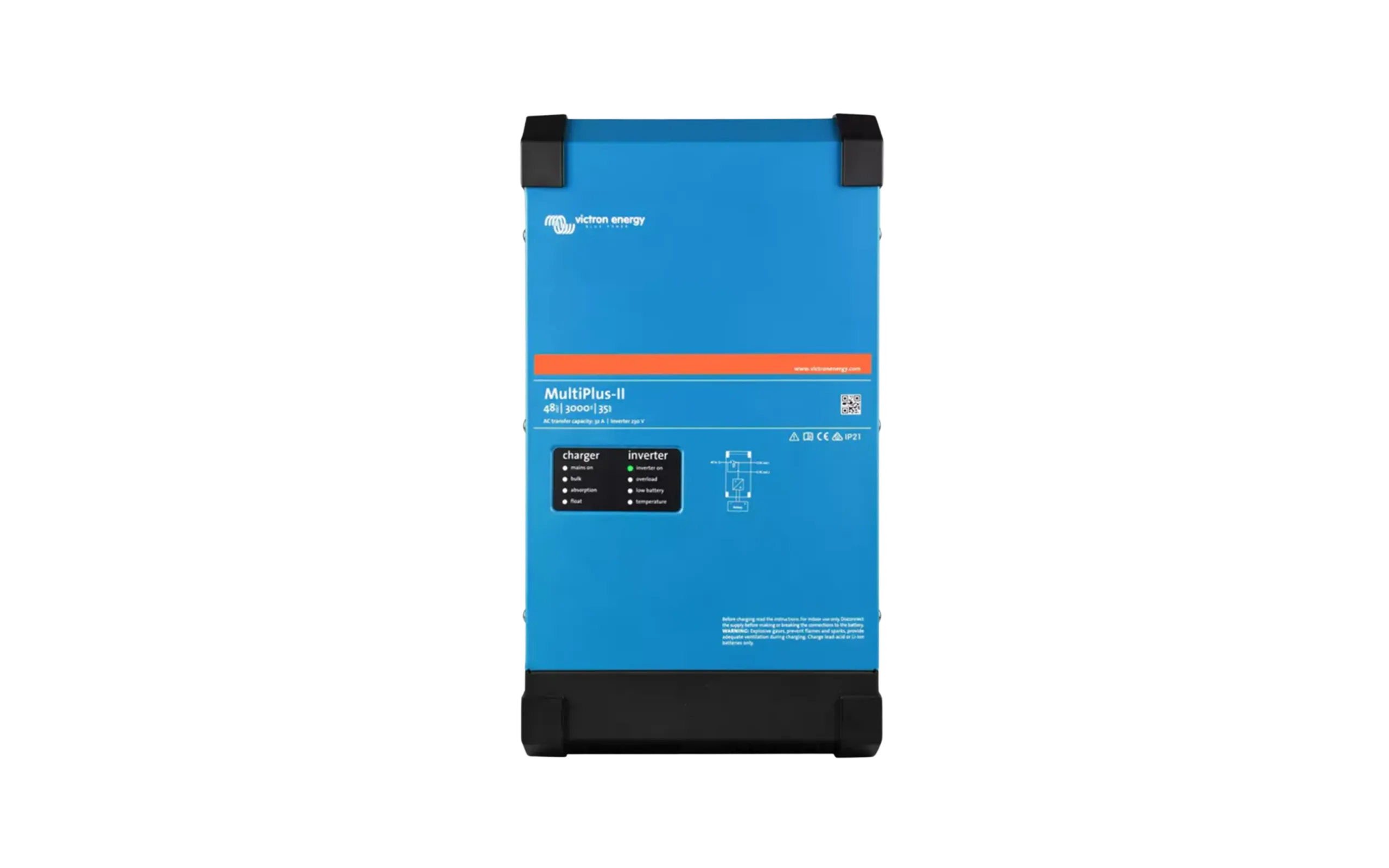

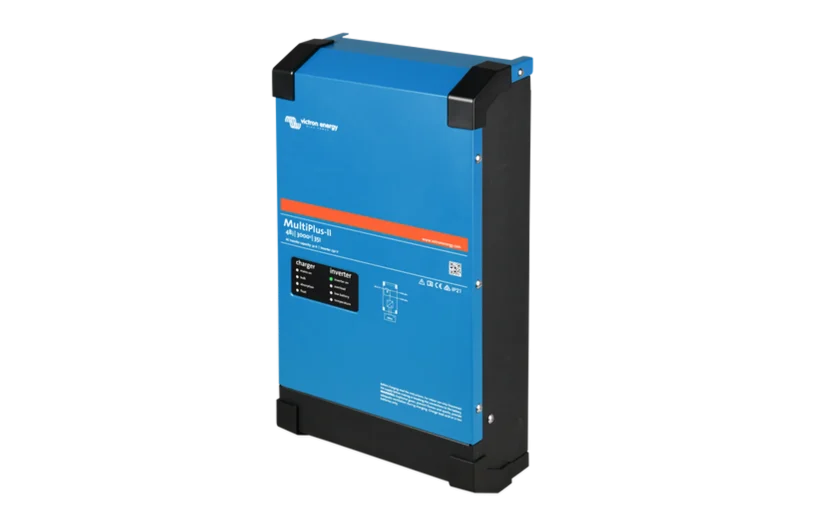

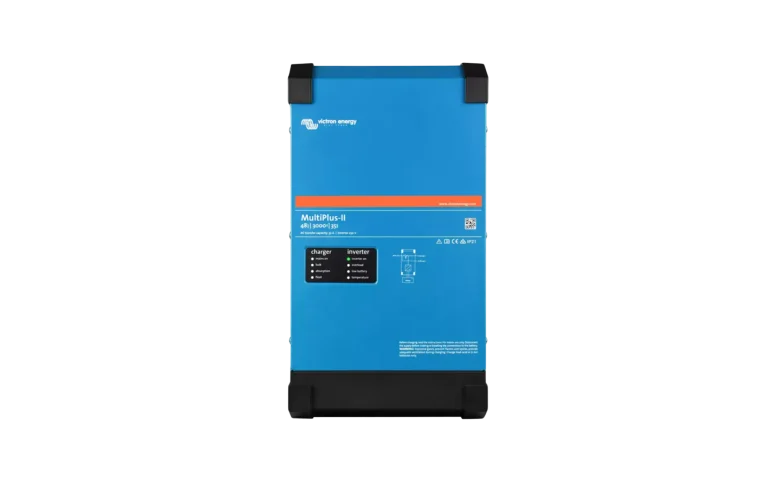

Victron MultiPlus-II 48/3000/35-50 120V (UL 1741)
Victron MultiPlus-II 48/3000/35-50 120V (UL 1741) - Image 2
Victron MultiPlus-II 48/3000/35-50 120V (UL 1741) - Image 3

Product Summary:

The Victron MultiPlus-II 48/3000/35-50 120V (UL 1741) is a compact, UL-certified inverter/charger designed for reliable off-grid, backup, and hybrid energy systems. Combining the capabilities of both MultiPlus and MultiGrid, it delivers efficient power conversion, intelligent energy management, and seamless backup in one integrated unit.



Delivering pure sine-wave output, the MultiPlus-II ensures clean, stable power for sensitive electronics and critical loads. With PowerAssist technology, it prevents AC source overload by supplementing grid or generator input with battery power – ideal for managing peak demand and maximizing system efficiency.



Designed for advanced energy systems, it supports ESS (Energy Storage System) configurations, ultra-fast UPS functionality, and full remote monitoring when paired with a Victron GX device. Built with proven Victron reliability, this unit is ideal for residential, small off-grid, and backup applications.

Ships From: Texas, USA
Warranty: 5 Years
Support: Lifetime USA-Based Tech Support



Compatibility

Battery Compatibility:

  • Works with 48V BigBattery HUSKY2 INV lithium battery systems

System Compatibility:

  • Supports off-grid and backup power systems with seamless battery and AC input integration
  • Compatible with solar charge controllers and generator input
  • Integrates with Victron GX devices for monitoring and control
Key Features
  • 3,000VA Inverter Output – Reliable power for small homes, cabins, and backup systems
  • Inverter + Charger in One – Combines power conversion and battery charging
  • Pure Sine Wave Output – Clean, stable electricity for sensitive electronics
  • PowerAssist Technology – Prevents overload by supplementing AC input with battery power
  • ESS (Energy Storage System) Ready – Advanced energy management for hybrid systems
  • Ultra-Fast UPS Functionality – Seamless backup during outages
  • UL1741 & CSA Certified – Safe, code-compliant installations
  • Remote Monitoring Ready – Full system visibility with Victron GX integration
  • Compact & Efficient Design – Space-saving and high-performance
  • Maintenance-Free Operation – No routine servicing required

A compact, reliable inverter/charger solution built for flexibility, intelligent control, and dependable energy performance.

Victron MultiPlus-II 48/3000/35-50 120V (UL 1741)

$1,052.30
SKU# INV014
SKU: INV014
Orders over $3,000 Qualify For Free Shipping!

-

.

Inverter Downloads

SKU#:INV014
Spec Sheet:DownloadDOWNLOAD

Inverter Specifications

AC Voltage:120V AC
AC Frequency:60 Hz
Max. Continuous AC Current:25A @ 120V
Max. AC Input Power:6000W (50A @ 120V)
AC Bypass:50A Transfer Switch
Output Voltage:120V AC ± 2%
Output Frequency:60 Hz ± 0.1%
Max. Continuous Output Current:25A @ 120V
Output Power:2400W (3000VA) @ 25°C
Surge Capacity:5500W Peak
Power Factor:≈1.0 (pure sine output)
Reactive Power Adjustment Range:N/A (not specified)
Total Harmonic Distortion:N/A (not specified)
Switching Time:<20 ms
No. of MPPTs (Inputs per MPPT):N/A (external MPPT required)
Max. Input Current:N/A
Max. Short Circuit Input Current:N/A
DC Input Voltage Range:38 – 66V DC (battery)
Start Up Voltage:N/A
MPPT Operating Voltage Range:N/A
MPPT Voltage:N/A
Max. PV Array Power:N/A
MPPT Efficiency:N/A
Nominal Battery Voltage:48V DC
Battery Voltage Range:38 – 66V DC
Max. Discharge Current:N/A (not specified)
Max. Charge Current:35A
DC Cut-Off Voltage:N/A (configurable)
Operating Temperature:-40°F – 150°F (-40°C – 65°C)
Storage Temperature:-40°F – 150°F (-40°C – 65°C)
Altitude:N/A
Relative Humidity:Up to 95% (non-condensing)
Typical Noise Emission:N/A
Protection Rating:IP21
Max. Parallel Connections:Up to 6 units (parallel / split-phase / three-phase)
Weight:42 lbs (19 kg)
Depth:5.8 in (147 mm)
Width:10.9 in (277 mm)
Height:22.5 in (572 mm)

Compare Inverter

5-Year – Victron Manufacturer Warranty

.

Inverter Downloads

SKU#:INV014
Spec Sheet:DownloadDOWNLOAD

Inverter Specifications

AC Voltage:120V AC
AC Frequency:60 Hz
Max. Continuous AC Current:25A @ 120V
Max. AC Input Power:6000W (50A @ 120V)
AC Bypass:50A Transfer Switch
Output Voltage:120V AC ± 2%
Output Frequency:60 Hz ± 0.1%
Max. Continuous Output Current:25A @ 120V
Output Power:2400W (3000VA) @ 25°C
Surge Capacity:5500W Peak
Power Factor:≈1.0 (pure sine output)
Reactive Power Adjustment Range:N/A (not specified)
Total Harmonic Distortion:N/A (not specified)
Switching Time:<20 ms
No. of MPPTs (Inputs per MPPT):N/A (external MPPT required)
Max. Input Current:N/A
Max. Short Circuit Input Current:N/A
DC Input Voltage Range:38 – 66V DC (battery)
Start Up Voltage:N/A
MPPT Operating Voltage Range:N/A
MPPT Voltage:N/A
Max. PV Array Power:N/A
MPPT Efficiency:N/A
Nominal Battery Voltage:48V DC
Battery Voltage Range:38 – 66V DC
Max. Discharge Current:N/A (not specified)
Max. Charge Current:35A
DC Cut-Off Voltage:N/A (configurable)
Operating Temperature:-40°F – 150°F (-40°C – 65°C)
Storage Temperature:-40°F – 150°F (-40°C – 65°C)
Altitude:N/A
Relative Humidity:Up to 95% (non-condensing)
Typical Noise Emission:N/A
Protection Rating:IP21
Max. Parallel Connections:Up to 6 units (parallel / split-phase / three-phase)
Weight:42 lbs (19 kg)
Depth:5.8 in (147 mm)
Width:10.9 in (277 mm)
Height:22.5 in (572 mm)

Compare Inverter

5-Year – Victron Manufacturer Warranty

Frequently Asked Questions

MultiPlus-II 48/3000 or 48/5000: which do I need?

The 48/3000 gives 3,000VA output with a 35A charger. The 48/5000 gives 5,000VA with a 70A charger. Choose the 3000 for smaller off-grid and backup systems. Choose the 5000 if you are running heavier loads or want faster battery recharging from shore or generator.

What does 35-50 mean on a MultiPlus?

In Victron's naming, the first figure is the battery charger output in amps and the second is the maximum AC input current the unit can pass through. So 48/3000/35-50 is a 48V unit, 3,000VA inverter, 35A charger, 50A AC transfer.

Is the MultiPlus-II 48/3000 UL 1741 certified?

Yes, this version is UL 1741 listed, which is the standard for grid-interactive inverters in North America. That matters if your system will interconnect with the utility, since UL 1741 is typically what an inspector and utility require for grid-tied equipment.

Does the 48/3000 work with BigBattery lithium?

Yes. Victron MultiPlus-II units support CAN and RS485 communication with battery management systems, and BigBattery lists the 48V HUSKY 2 INV as compatible with Victron MultiPlus-II 3000 and 5000 systems.

What is the difference between UL 1741 and UL 458 versions?

UL 1741 covers grid-interactive inverters for stationary and utility-connected use. UL 458 covers inverters in mobile and RV applications. Choose the certification that matches your install, since it is what determines code compliance and inspection sign-off.

×
