48V ETHOS 10.2KWH (2 Module)

$4,050

10 Year Warranty

Applied To Batteries Only

[pr_view_popup_btn]

48V ETHOS 10.2KWH (2 Module)

$4,050

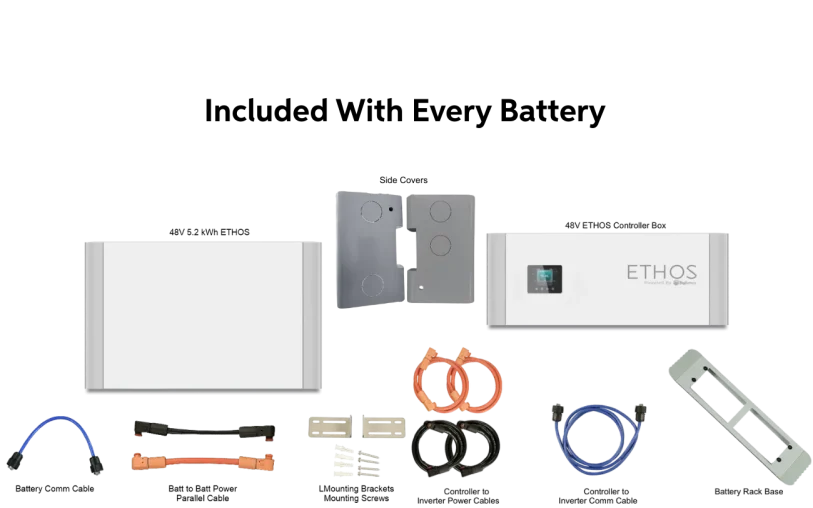

Included Components

2 × 48V ETHOS 5.12kWh Stackable Battery Module
FETHS-48051-G1
1 × ETHOS Control Box
CNT060
1 × 10kWh Ethos Controller to Battery Power Cable 31.5" inch (800mm)
CBL088

Compatible Accessories

||
[pr_view_size_popup]
SKU K0949 Category SKU#:

STACKABLE POWER STORAGE! BigBattery’s 48V ETHOS is here to revolutionize your home’s power. Our all new ETHOS battery system features a fully stackable and modular design, equipped with its own control box, in-depth LED display, and mounting system.



Whether you’re looking to ensure emergency backup power is available in your cabin or tiny home, or you’re looking to outfit your residential home with a powerful solar system, the ETHOS ensures reliable, efficient power delivery through every season. Equipped with an advanced BMS featuring an auto-cell balancing function, an IP65-rated casing, as well as an internal fire suppression system, the ETHOS ensures long-lasting safety and durability. Plus, with its interactive LED display and CANBus/RS485 communication protocols, you’re always able to monitor the health and status of your power.

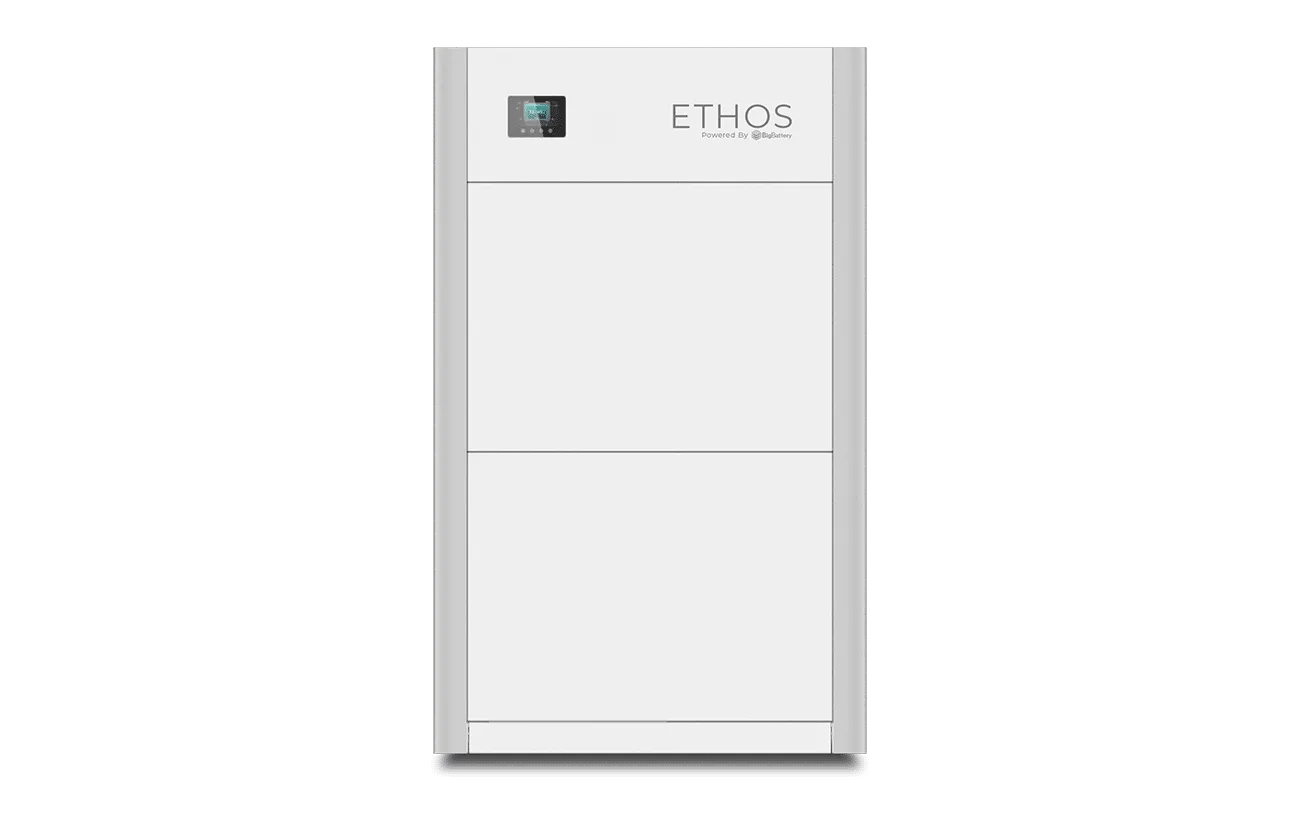

The ETHOS is now available in 2-stack (10.24 kWh) and 3-stack (15.36 kWh) configurations, with the ability to expand upon your ETHOS system as needed. It’s time to take your home’s power to the next level! Shop the all-new 48V ETHOS today!

300%

10 Year Savings Vs Lead-Acid

1/3

the weight and space

4X

Cycle-Life

100%

Safe & Reliable

Tech Specs

SKU:K0949
GTIN-12 (U.P.C.):850061252074
System Voltage:48V
Nominal Voltage:51.2V
Chemistry: LiFePO4
kWh Capacity: 10.24kWh
Ah Capacity: 200Ah
Charging Voltage Range:55.6 - 57V
Max Charge Voltage:57V
Operating Voltage Range:48 – 57V
Suggested Low Voltage Cutoff:48 – 50.8V
Cell Configuration:16S 2P
Max Continuous Discharge Current:200A
Max Continuous Power: 10240W
Max Discharge Peak Current: 300A (Max 5 seconds)
Max Charge Current:200A
Charge Temperature Range:32°F - 113°F (0°C - 45°C)
Discharge Temperature Range:-4°F - 140°F (-20°C - 60°C)
Optimal Discharge Temperature Range:59°F - 95°F (15°C - 35°C)
Storage Temperature Range (SoC >50%):-4°F - 113°F (-20°C - 45°C) (Max 6 months)
Weight:273 lb (123.8 kg)
Depth:6.7 in (170 mm)
Width: 26.5 in (674 mm)
Height:43.3 in (1100 mm)
Max Connections:Up to (16) parallel connections per control box
Protection Rating:IP65
Communications:CANBus / RS485
Certifications:UL9540, UL9540a, UL1973, & UN38.3
Spec Sheet Download:
User Manual Download:
UL9540 Certification Download:
Safety Data Sheet Download:

Designed For 48V Applications
