Everything You Need, Included
Everything in the box
1× APEX 10K Off-Grid Inverter- U.S. Support
- LiFePO₄ Safety

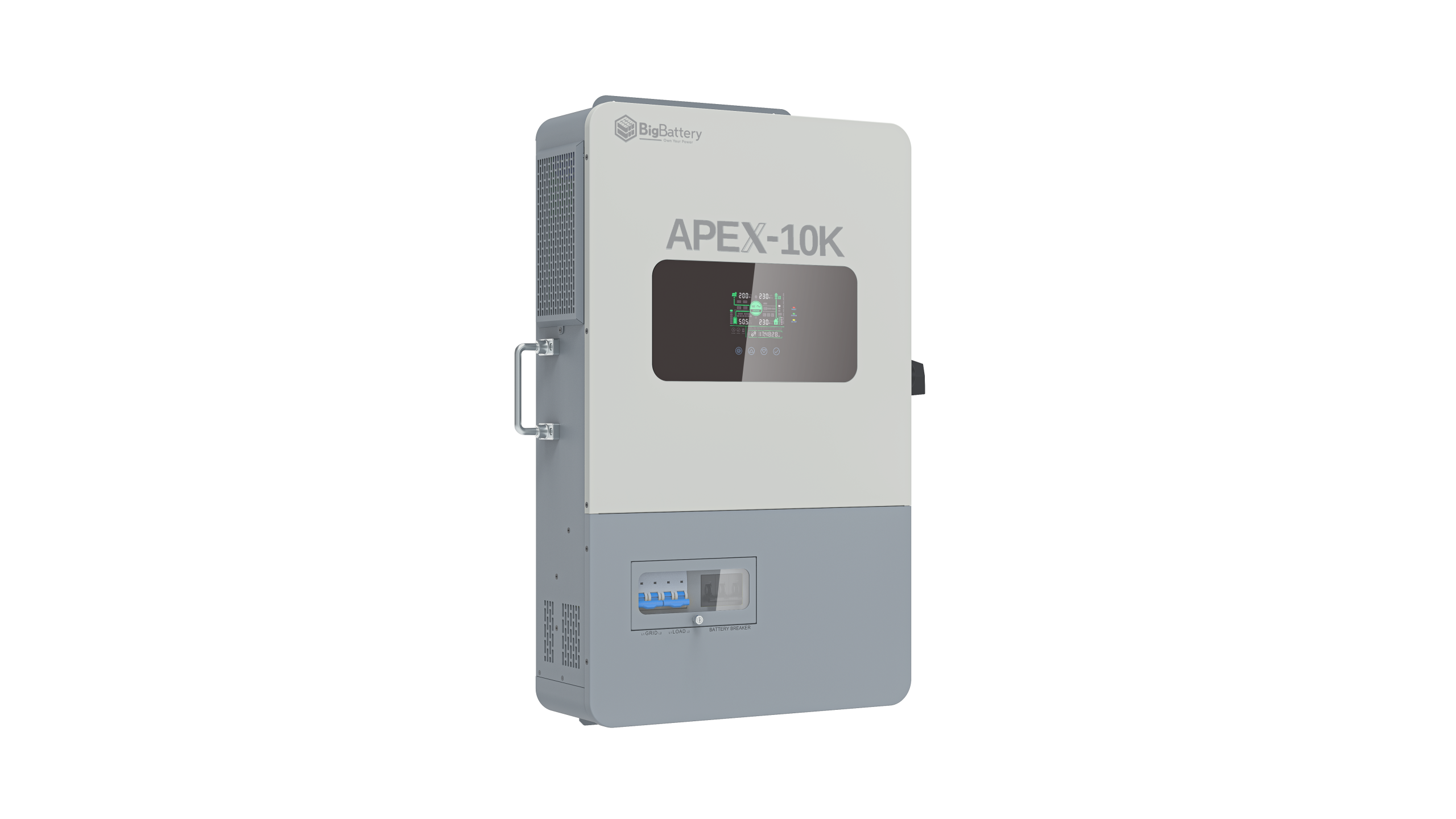

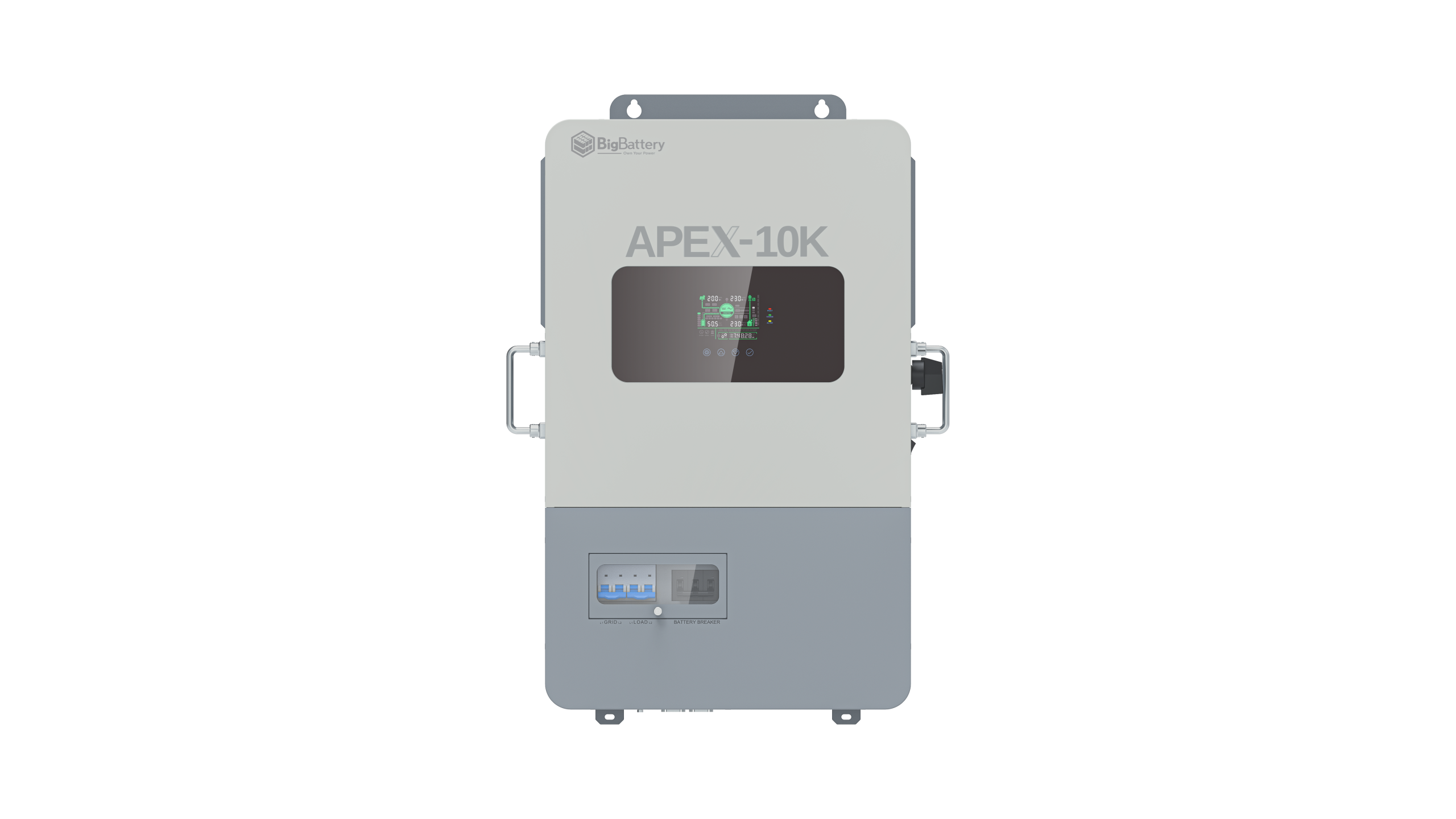

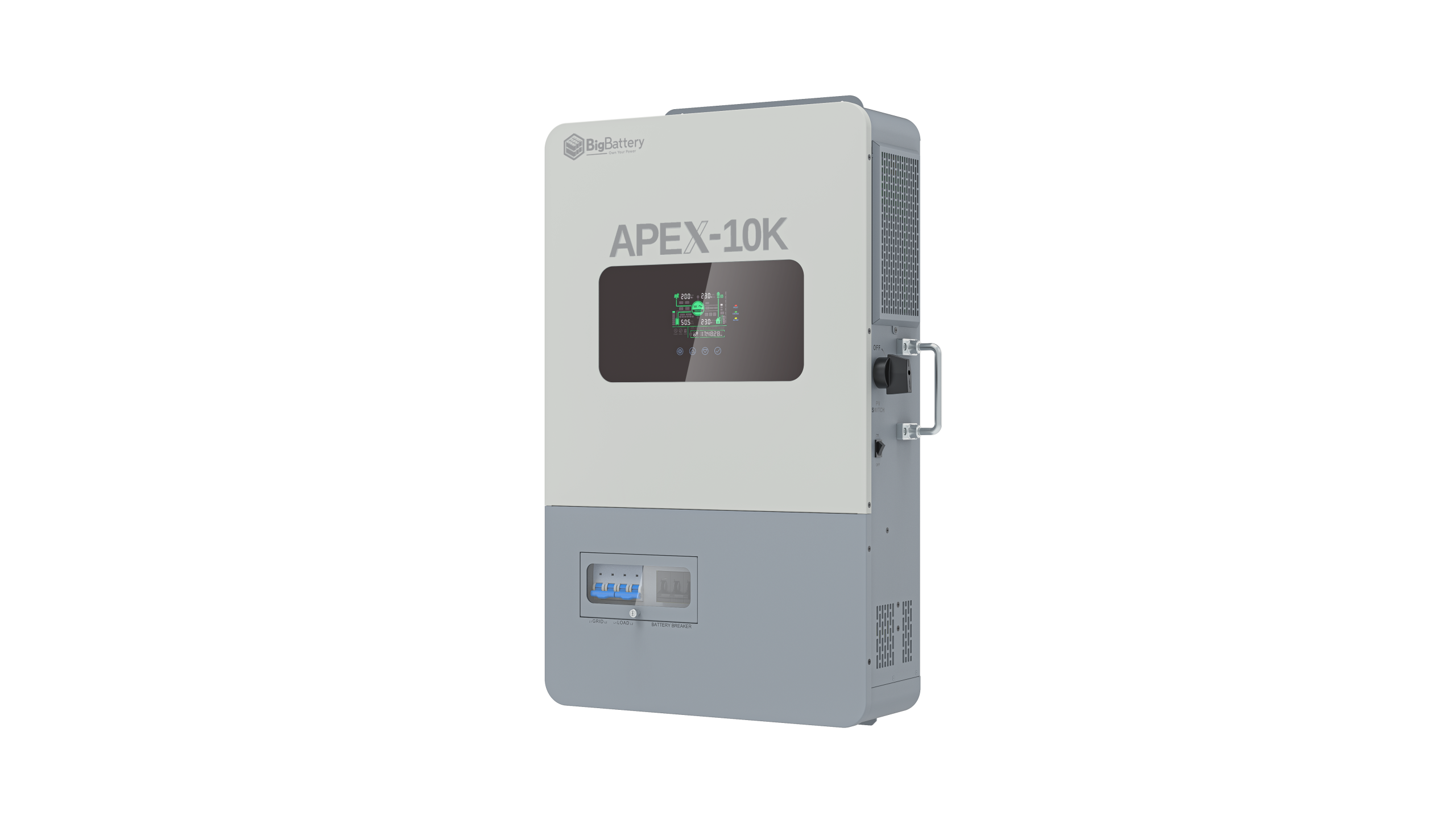

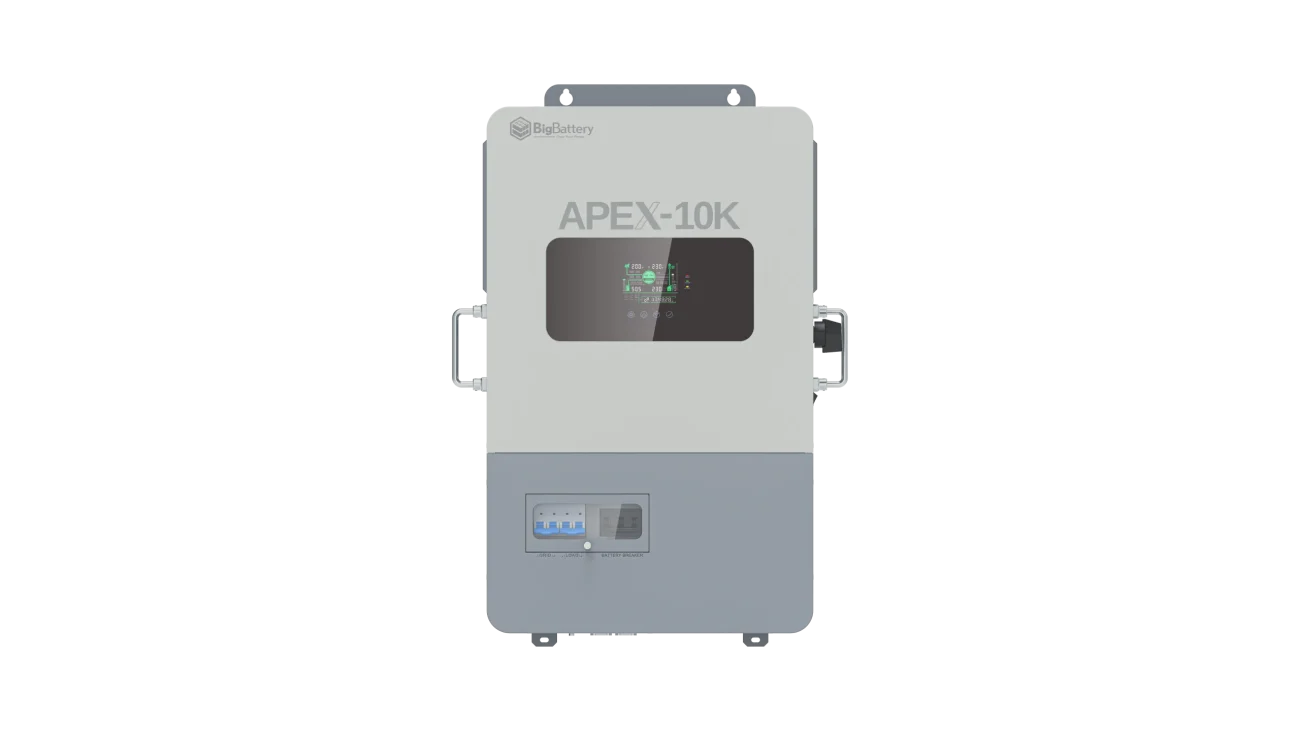

BigBattery APEX-10K Off-Grid Inverter
Choose Your Inverter Option*
Converts battery power to usable electricity.
Choose Your Battery Option*
Stores your energy for when you need it.
Choose Your Inverter Option*
Converts battery power to usable electricity.
Choose Your Battery Option*
Stores your energy for when you need it.
Choose Your Inverter Quantity*
Standard
Large
3 Phase
Items Included
-
About this item
The BigBattery APEX 10K Hybrid Inverter is a powerful, off-grid-ready solution engineered for true energy independence. Delivering split-phase 120/240V pure sine-wave output at 50/60Hz, it efficiently powers homes, cabins, and remote systems with clean, stable energy.
Designed to work seamlessly with modern LiFePO₄ battery systems, the APEX 10K supports solar or generator input for continuous, all-day operation. With an 80A pass-through for large appliances and critical loads, it ensures dependable performance when it matters most.
Built for real-world conditions, the APEX features a rugged, durable design, wide operating temperature range, and installer-friendly configuration—making it a reliable, efficient choice for off-grid and backup power applications.
Ships From: Texas, USA
Warranty: 5 Years
Support: Lifetime USA-Based Tech Support
Compatibility
Closed-Loop Communication with Batteries (Off-Grid Non-UL 9540 Installs):
- BigBattery NEXUS, ETHOS, HUSKY2 INV
- EG4 280Ah All Weather, 280Ah Indoor, 314Ah All Weather, 314Ah Indoor
Power Compatibility:
- Works with 48V battery systems
- Supports off-grid and hybrid installations
- Compatible with solar + generator input setups
Key Features
- 10kW Output Power – High-capacity energy for residential and off-grid applications
- Split-Phase 120/240V Output – Powers both standard and heavy-duty appliances
- Pure Sine Wave Output – Clean, stable electricity for sensitive electronics
- Solar + Generator Input – Flexible energy sources for continuous operation
- 80A Pass-Through Capability – Supports high-demand loads and appliances
- Indoor Installation Ready – Designed for installation in garages, utility rooms, and protected environments
- Wide Temperature Range – Reliable performance in varying climates
- Installer-Friendly Design – Bottom-entry wiring for simplified installation
- Smart Protection Systems – Built-in safeguards for safe, stable operation
A powerful, off-grid-ready inverter built for flexibility, reliability, and long-term energy independence.
Introducing The APEX Inverter Series
Meet the BigBattery APEX Off-Grid Hybrid Inverter Series (6.5K & 10K)—engineered for true energy independence with two power-class options to match your build. Both models deliver split-phase 120/240V at 50/60 Hz with clean, pure sine-wave output, pairing seamlessly with modern LiFePO₄ battery banks for stable, efficient performance. Designed for real-world autonomy, APEX 6.5K supports solar and generator inputs, the APEX-10K supports one or the other so you can stay powered day and night, season after season.
Built to handle demanding loads, the APEX Series features an 80A pass-through to keep large appliances and critical circuits running smoothly, while wide operating temperatures and an outdoor-ready enclosure provide dependable performance in harsh conditions. With installer-friendly bottom-entry wiring and intelligent protections baked in, APEX is a rugged, efficient, and practical backbone for cabins, homesteads, remote residences, and off-grid properties—delivering a streamlined path to reliable, all-day power.
Whole-Home Split-Phase Power
Delivers clean, pure sine-wave electricity to run larger appliances and essential circuits with confidence. Ideal for cabins, homesteads, and off-grid homes that need true 120/240V performance.
Solar Ready Set-Up
Designed to accept both solar and generator inputs on APEX-6.5K so you can stay powered day and night. When sunlight dips, your generator can seamlessly keep the system charging and your loads running.
Off-Grid Reliability
Installer-friendly bottom-entry wiring and built-in protections help keep your setup clean, safe, and dependable for any remote residences. Inputs vary on both inverters, read the specification sheet for more information on inputs between both inverters.
Go Big On Power
The APEX inverter series & NEXUS battery kit paired together is the ultimate solar set up for all off-grid enthusiasts, whether its a cozy log cabin, modest tiny home or a vast ranch, this ESS was designed to ensure your energy independence, protect yourself from outages & blackouts and stay powered.

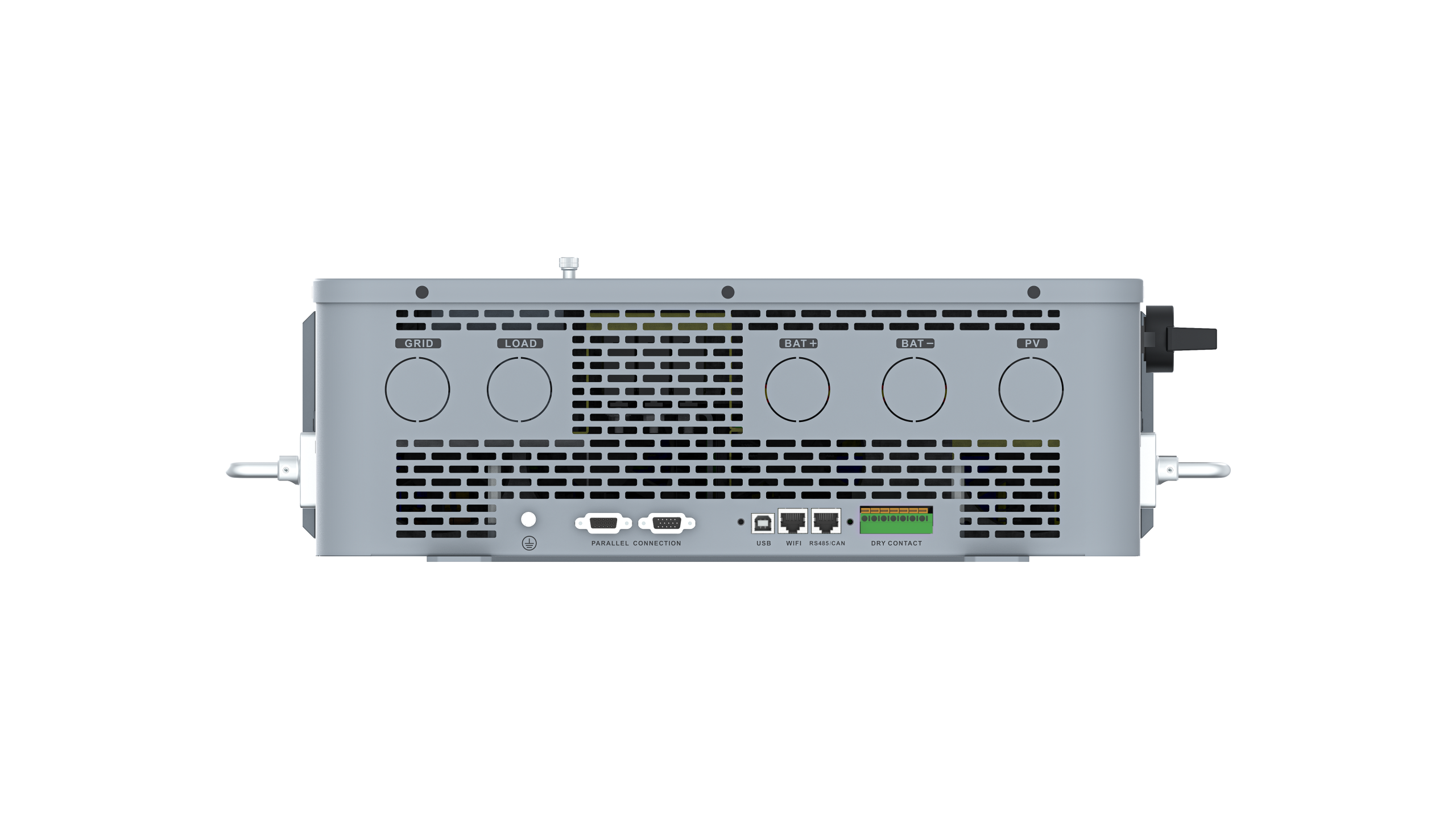

| INVERTER INPUTS | APEX-6.5K | APEX-10K |
|---|---|---|
| Grid | yes | yes |
| Load | yes | yes |
| Generator | yes | yes* |
| BAT – | yes | yes |
| BAT + | yes | yes |
| PV | yes | yes |
| Parallel Connection | yes | yes |
| USB | yes | yes |
| CT | yes | no |
| WiFi | yes | yes |
| RS485/CAN | yes | yes |
| Dry Contact | yes | yes |
Inverter Downloads
DOWNLOADInverter Specifications
At BigBattery, we stand behind the quality and reliability of our products. Our warranty coverage is designed to give you confidence and peace of mind with every purchase.
- Inverter: Covered by a 5-Year Limited Warranty
For full details on coverage, terms, and conditions, please visit our Policy Page.
Introducing The APEX Inverter Series
Meet the BigBattery APEX Off-Grid Hybrid Inverter Series (6.5K & 10K)—engineered for true energy independence with two power-class options to match your build. Both models deliver split-phase 120/240V at 50/60 Hz with clean, pure sine-wave output, pairing seamlessly with modern LiFePO₄ battery banks for stable, efficient performance. Designed for real-world autonomy, APEX 6.5K supports solar and generator inputs, the APEX-10K supports one or the other so you can stay powered day and night, season after season.
Built to handle demanding loads, the APEX Series features an 80A pass-through to keep large appliances and critical circuits running smoothly, while wide operating temperatures and an outdoor-ready enclosure provide dependable performance in harsh conditions. With installer-friendly bottom-entry wiring and intelligent protections baked in, APEX is a rugged, efficient, and practical backbone for cabins, homesteads, remote residences, and off-grid properties—delivering a streamlined path to reliable, all-day power.
Whole-Home Split-Phase Power
Delivers clean, pure sine-wave electricity to run larger appliances and essential circuits with confidence. Ideal for cabins, homesteads, and off-grid homes that need true 120/240V performance.
Solar Ready Set-Up
Designed to accept both solar and generator inputs on APEX-6.5K so you can stay powered day and night. When sunlight dips, your generator can seamlessly keep the system charging and your loads running.
Off-Grid Reliability
Installer-friendly bottom-entry wiring and built-in protections help keep your setup clean, safe, and dependable for any remote residences. Inputs vary on both inverters, read the specification sheet for more information on inputs between both inverters.
Go Big On Power
The APEX inverter series & NEXUS battery kit paired together is the ultimate solar set up for all off-grid enthusiasts, whether its a cozy log cabin, modest tiny home or a vast ranch, this ESS was designed to ensure your energy independence, protect yourself from outages & blackouts and stay powered.
| INVERTER INPUTS | APEX-6.5K | APEX-10K |
|---|---|---|
| Grid | yes | yes |
| Load | yes | yes |
| Generator | yes | yes* |
| BAT – | yes | yes |
| BAT + | yes | yes |
| PV | yes | yes |
| Parallel Connection | yes | yes |
| USB | yes | yes |
| CT | yes | no |
| WiFi | yes | yes |
| RS485/CAN | yes | yes |
| Dry Contact | yes | yes |
Inverter Downloads
Inverter Specifications
At BigBattery, we stand behind the quality and reliability of our products. Our warranty coverage is designed to give you confidence and peace of mind with every purchase.
- Inverter: Covered by a 5-Year Limited Warranty
For full details on coverage, terms, and conditions, please visit our Policy Page.
Frequently Asked Questions
Can the APEX 10K run grid and generator at the same time?
No. On the APEX 10K, the single AC input supports either grid or generator, not both simultaneously. If you need both connected at once, the APEX 6.5K handles that, since it has a separate CT input the 10K does not include.
Is 10kW enough for a whole house off-grid?
For most homes, yes. 10kW of split-phase 120/240V output with an 80A pass-through covers a well pump, air conditioning and general household circuits. All-electric homes with electric heat and an electric range may need a larger inverter or two units in parallel.
APEX 10K or EG4 12000XP: which is better?
The APEX 10K gives 10kW output with an 80A pass-through and a straightforward off-grid design. The 12000XP gives 12kW output and up to 24,000W PV input with dual MPPTs. Choose the 12000XP for large solar arrays; choose the APEX for a simpler, lower-cost off-grid build.
What size battery bank do I need for an APEX 10K?
Size the bank to your daily consumption rather than to the inverter. A home using 20kWh a day wants 40kWh or more for two days of autonomy. The APEX works with all BigBattery and EG4 48V batteries, so NEXUS at 16kWh per unit is a common pairing.
Where can the APEX 10K be installed?
It is designed for installation in garages, utility rooms and other protected environments, with a wide operating temperature range. It uses installer-friendly bottom-entry wiring, which keeps conduit runs clean and simplifies the install.
