Product Summary:
The EG4 12000XP Hybrid Inverter is a powerful, high-capacity solution designed for both off-grid and hybrid energy systems. Delivering up to 12,000W split-phase output from battery and supporting up to 24,000W PV input, it provides reliable, efficient power for whole-home backup and energy independence.
With dual MPPTs, the 12000XP maximizes solar production while seamlessly managing energy from solar, batteries, and the grid. Built-in breakers, fast UPS transfer (15–30ms), and advanced system controls ensure uninterrupted operation and dependable performance.
Designed with a transformer-free architecture, the 12000XP offers improved efficiency, reduced weight, and simplified installation. With smart features like load control, AC coupling, peak shaving, and remote monitoring, it delivers flexible, intelligent energy management for modern residential and commercial systems.
Ships From: Texas, USA
Warranty: 5 Years
Support: Lifetime USA-Based Tech Support
Compatibility
Closed-Loop Communication with Batteries (Off-Grid Non-UL 9540 Installs):
- All BigBattery Batteries
- All EG4 Batteries
Power Compatibility:
- Works with 48V battery systems
- Supports grid-tied, hybrid, and off-grid installations
- Compatible with solar + generator input setups
Key Features
- 12,000W Output Power (Battery) – Reliable power for whole-home and commercial applications
- Up to 24,000W PV Input – High solar capacity with dual MPPT optimization
- Split-Phase 120/240V Output – Powers both standard and heavy-duty loads
- Dual MPPT Inputs – Maximizes solar production across multiple arrays
- UPS Functionality (15–30ms) – Seamless backup power during outages
- Transformer-Free Design – Lightweight, efficient, and easy to install
- Built-In Breakers & Safety – Simplifies installation and enhances protection
- Smart Energy Management – Supports load control, AC coupling, and peak shaving
- Remote Monitoring & Control – Track system performance and manage settings from anywhere
- User-Friendly Interface – Simple setup and system configuration
- Maintenance-Free Operation – No routine servicing required
A high-performance hybrid inverter built for efficiency, flexibility, and reliable energy control – ideal for powering modern homes and businesses.

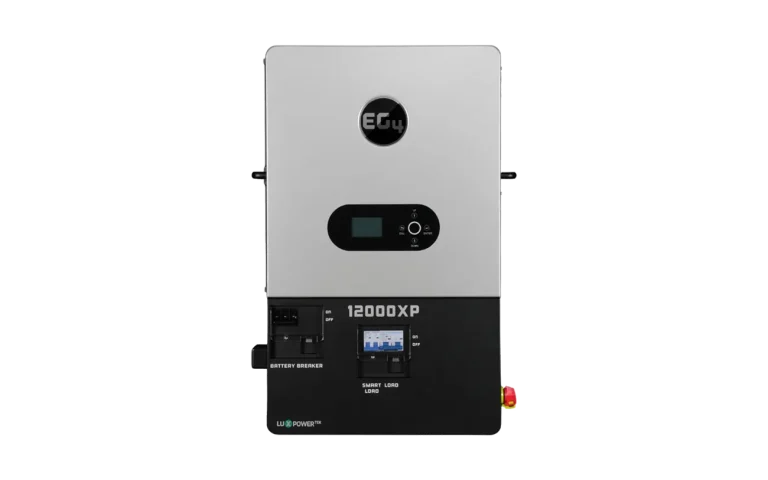

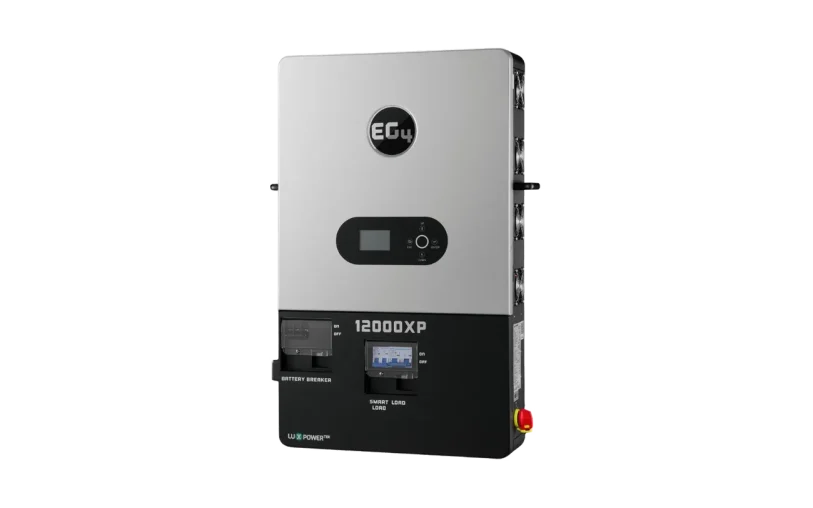

EG4 12000XP V2 OFF-GRID INVERTER
Choose Your Inverter Option*
Choose Your Battery Option*
Choose Your Inverter Quantity*
Standard
Large
3 Phase
-
.
See More On YouTube
Inverter Downloads
DOWNLOADDOWNLOADDOWNLOADDOWNLOAD
GO TO LINKInverter Specifications
Compare Inverter
5-Year EG4 Manufacturer Warranty
.
See More On YouTube
Inverter Downloads
DOWNLOADDOWNLOADDOWNLOADDOWNLOADGO TO LINKInverter Specifications
Compare Inverter
5-Year EG4 Manufacturer Warranty
Frequently Asked Questions
12000XP or 6000XP: which do I need?
The 6000XP gives 6,000W output with 8,000W PV input, suited to cabins and smaller off-grid builds. The 12000XP gives 12,000W output with up to 24,000W PV input, built for whole-home and commercial systems. Size it to your loads and your planned array, not just today's usage.
Is the 12000XP UL 9540 certified?
No. The 12000XP is listed for closed-loop communication with batteries in off-grid non-UL 9540 installations. If your project requires UL 9540 certified grid-tied operation, the FlexBOSS18, FlexBOSS21 or 18kPV are the certified options.
What is the difference between the V1 and V2 12000XP?
The current product is the V2, which is what ships from BigBattery. If you are comparing against older listings or second-hand units, confirm the version, since the V2 is the revision currently supported and stocked.
Can the 12000XP be grid-tied?
It supports grid-tied, hybrid and off-grid installations, but its closed-loop battery communication is listed for off-grid non-UL 9540 installs. For a permitted grid-tied system with battery storage, a UL 9540 certified inverter is usually what an inspector will require.
What batteries work with the 12000XP?
All BigBattery batteries and all EG4 batteries, with closed-loop communication in off-grid installations. It works with 48V battery systems and supports solar plus generator input configurations.
