Product Summary:

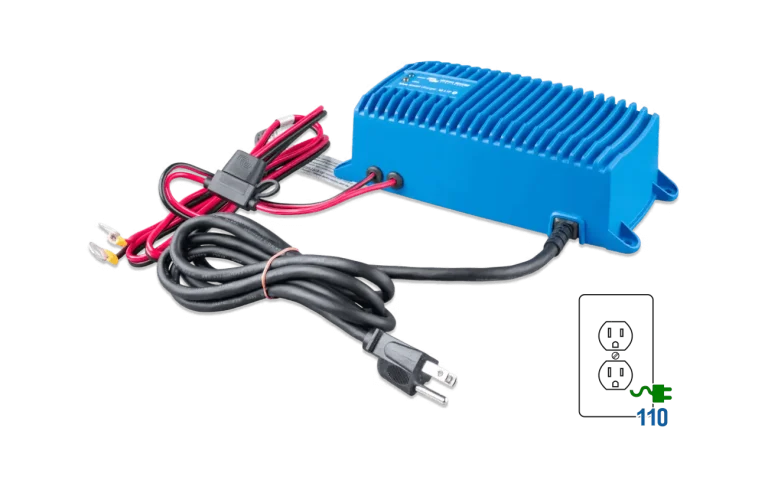

Victron products are among the most popular and reliable components on the market today. As a certified Victron dealer, BigBattery is able to combine our two technologies, bringing you cutting-edge lithium power systems, and this 24V 12A Smart Charger is the perfect addition for any battery system, providing unmatched charging efficiency and visibility.



This charger’s seven-step charging algorithm ensures you get the best out of your batteries, and it’s even capable of recovering deeply discharged, ‘dead’ batteries, through a low-current feed, ensuring sufficient voltage across the battery before resuming normal charging. But that’s not all.



This charger provides ultimate peace of mind during operation, being housed in an IP67-rated casing for protection against water, oils, dirt, and other contaminants, as well as LED status indicators on the top of the unit, and full Bluetooth monitoring capabilities, allowing you to stay up to date on the health and performance of your power with just a glance.



Ensure your power system is complete with this cutting-edge 12A Smart Charger from Victron, available now.

Features

  • IP67 PROTECTION RATING
  • BLUETOOTH MONITORING
  • LED STATUS INDICATORS
  • ADAPTIVE CHARGING ALGORITHM
  • OVERHEATING PROTECTION
  • BATTERY RECOVERY FUNCTION

Charger Downloads

SKU#: PWS055
Spec Sheet:DownloadDOWNLOAD

Charger Specifications

Battery Voltage:24V
Input Voltage Range:110 – 135V AC
Input Frequency Range:45 – 65 Hz
Input Current:≤12A
Max. Output Voltage:27V DC
Max. Charge Current:12A
Output Frequency Range:45 – 65 Hz
Efficiency:96%
No-Load Power Consumption:0.5W
Humidity:Up to 100%
Operating Temperature Range:-22ºF – 140ºF (-30ºC – 60ºC)
Protection Rating:IP67
Weight:5.3 lbs (2.4 kg)
Depth:2.6 in (66 mm)
Width:8.6 in (218 mm)
Height:3.9 in (99 mm)
DC Cable Length:60 in (1524 mm)
AC Cable Length:60 in (1524 mm)
