12-Year Warranty

Full Battery Coverage

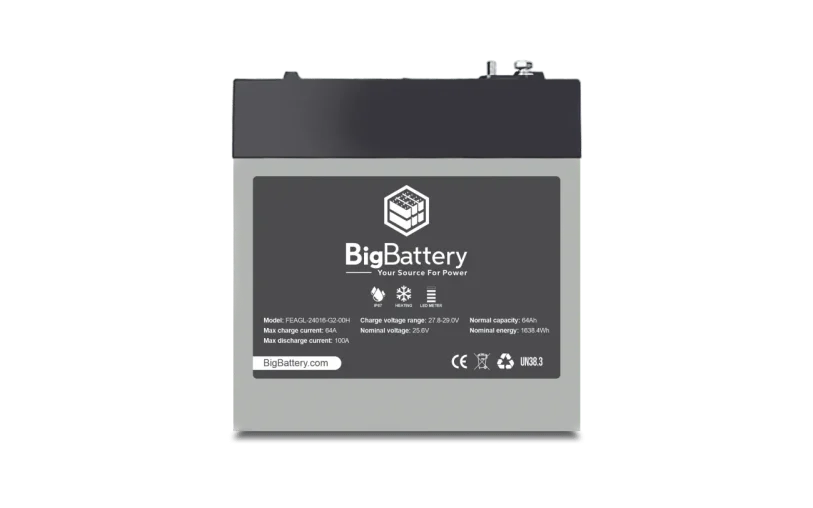

24V EAGLE 2 (No Comm) – LiFePO4 – 64Ah – 1.63kWh

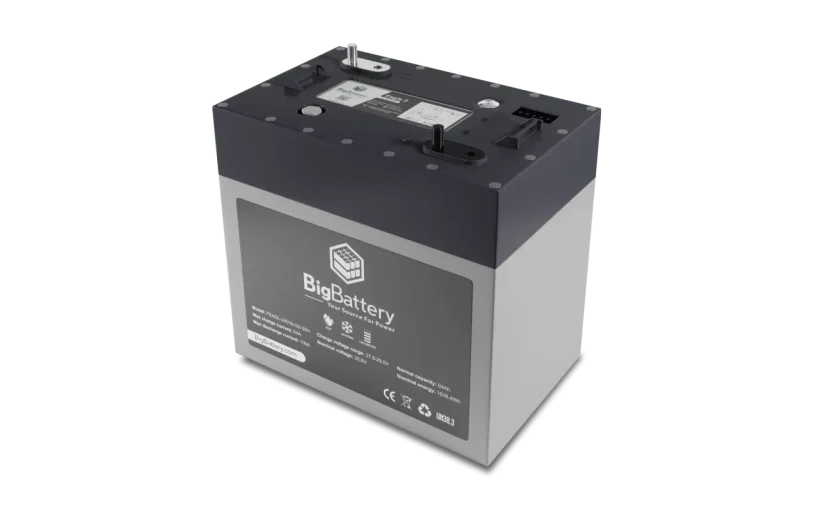

24V EAGLE 2 (No Comm) – LiFePO4 – 64Ah – 1.63kWh - Image 2

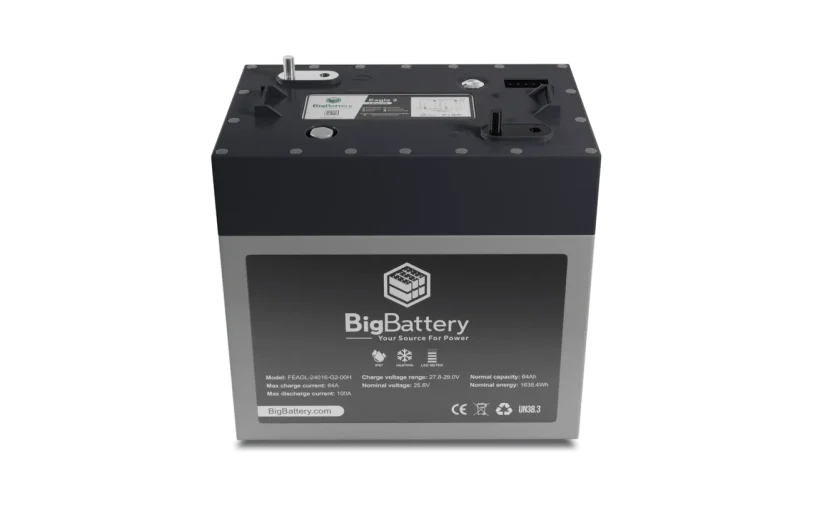

24V EAGLE 2 (No Comm) – LiFePO4 – 64Ah – 1.63kWh - Image 3

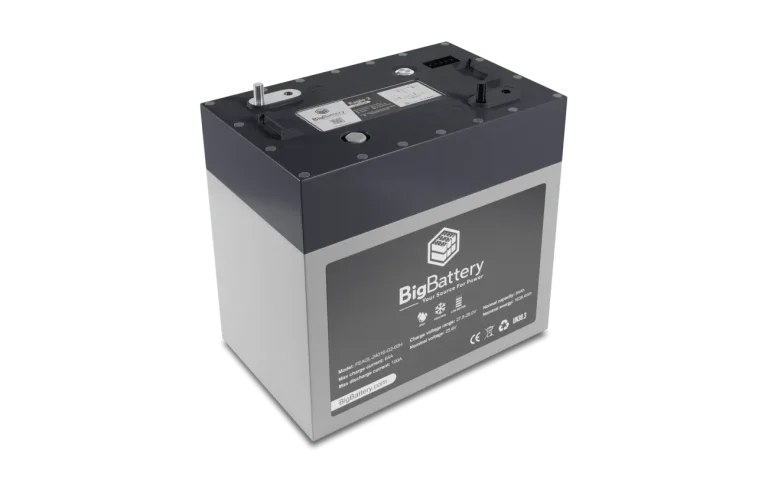

24V EAGLE 2 (No Comm) – LiFePO4 – 64Ah – 1.63kWh - Image 4

Product Summary:

Upgrade your equipment with the 24V Eagle 2 LiFePO₄ Battery (No Comm), a GC2-size, standalone lithium battery designed as a drop-in replacement for 24V lead-acid batteries, including the Trojan T-105. Delivering 1.63 kWh from Tier 1 LiFePO₄ cells, this 24-volt lithium battery provides reliable power, faster charging, and zero maintenance for industrial equipment, UTVs, RVs, marine systems, and light solar applications – without the need for CANbus communication or external monitoring.



Disclaimer: A single Eagle 2 battery is not designed to power an entire golf cart. The 2-Battery Eagle 2 Kit is the minimum recommended configuration. Always match your motor and controller power requirements to the kit’s continuous power rating. Operating outside specifications may void the warranty.

24V EAGLE 2 (No Comm) – LiFePO4 – 64Ah – 1.63kWh

$720.00$650.00
YOU SAVED: $70.00
SKU# FEAGL-24016-G2-NC

Choose Your 24V Eagle2 Configuration Kit*

Battery OnlyStandard KitPro KitUltimate KitScissor Lift KitScissor Lift Kit (No Comm)
SKU: FEAGL-24016-G2-NC Category:
Quantity:

Designed For 24V Applications

  • T-105 EXACT REPLACEMENT
  • LIGHT INDUSTRIAL EQUIPMENT
  • FLOOR SWEEPERS
  • FLOOR SCRUBBERS
  • PALLET JACKS
  • SCISSOR LIFTS
  • LIGHT TOWERS
  • CLASS A, B, & C RVs
  • CAMPER VANS
  • EMERGENCY BACKUP
  • INCLUDES INTERNAL WARMERS
  • OPERATES IN SUB-ZERO TEMPS

Battery Downloads

SKU#:FEAGL-24016-G2-NC
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD

Battery Specifications

GTIN-12 (U.P.C.):850061252616
System Voltage:24V
Nominal Voltage:25.6V
Chemistry:LiFePO4
kWh Capacity:1.63kWh
Ah Capacity:64Ah
Charging Voltage Range:27.8 – 29V
Max Charge Voltage:29.2V
Operating Voltage Range:24 – 28.8V
Suggested Low Voltage Cutoff:24 – 25.4V
BMS Cutoff Range:21 – 23.5V
Cell Configuration:8S
Max Continuous Discharge Current:100A
Max Continuous Power:2560W
Max Discharge Peak Current:200A (Max 5 seconds)
Max Charge Current:64A
Charge Temperature Range:-4°F – 131°F (-20°C – 55°C)
Discharge Temperature Range:-4°F – 140°F (-20°C – 60°C)
Optimal Discharge Temperature Range:59°F – 95°F (15°C – 35°C)
Storage Temperature Range:23°F – 95°F (-5°C – 35°C) (Max 3 months), 32°F – 77°F (0°C – 25°C) (Max 12 months)
Weight:38 lb (17.2 kg)
Depth:7.1 in (180 mm)
Width:10.2 in (260 mm)
Height:10.8 in (274 mm)
Max Connections:Up to (10) Parallel
Protection Rating:IP67
Self-Heating:Yes
×
