Product Summary:

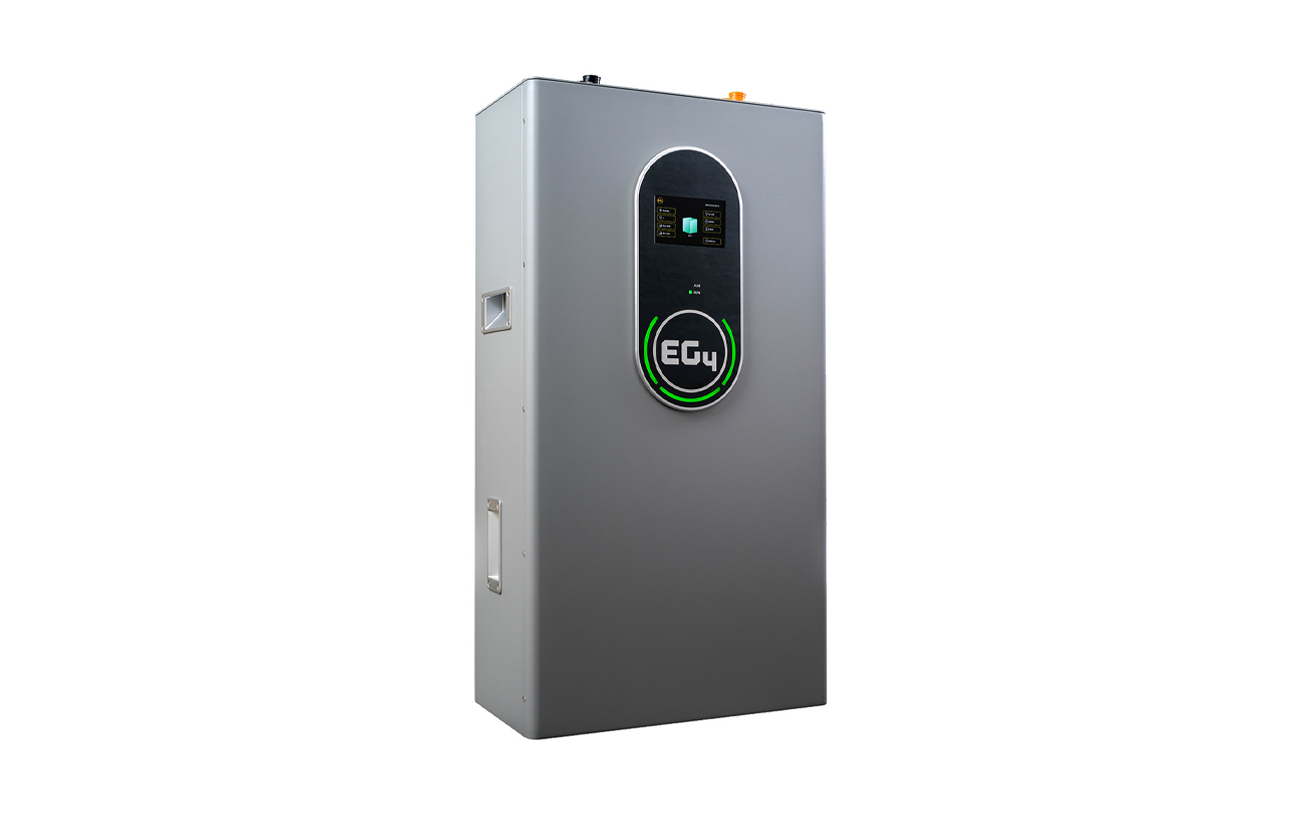

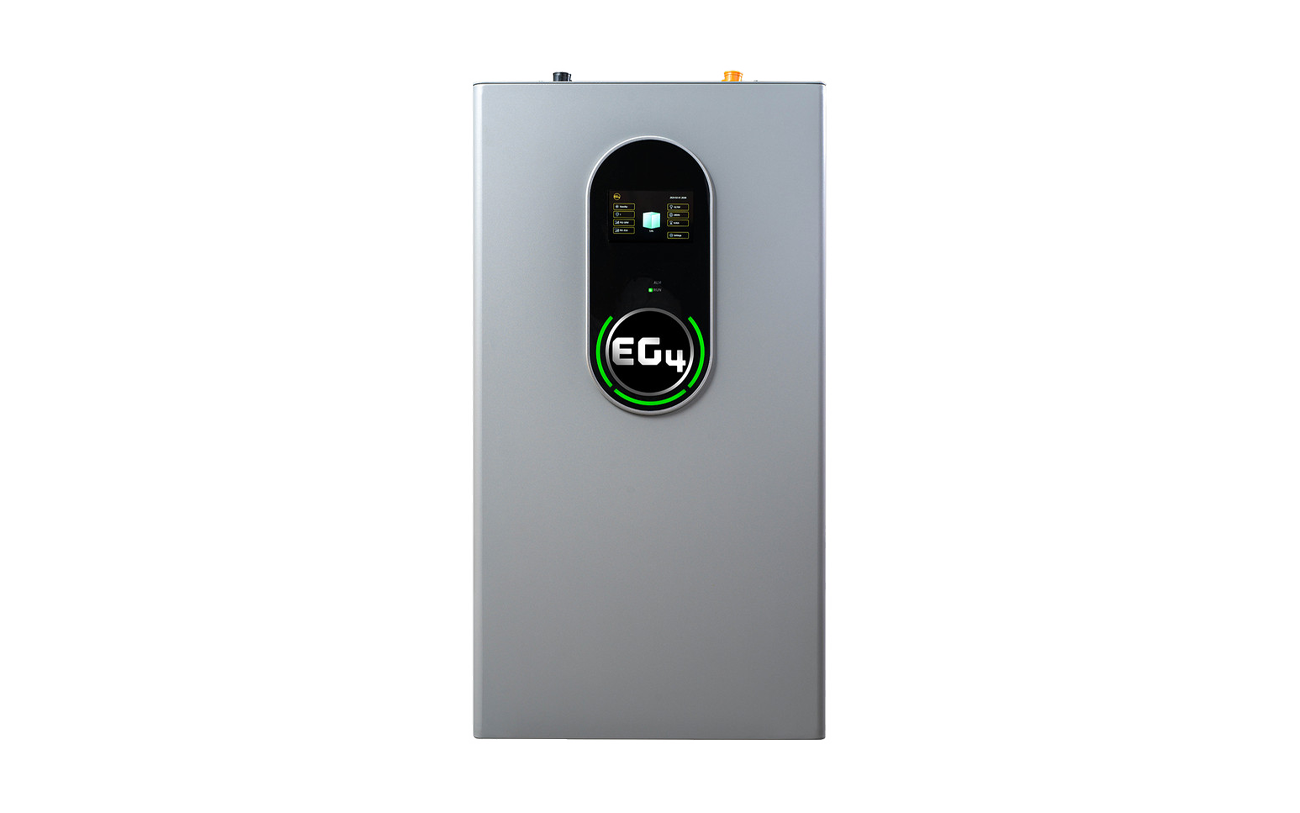

The 48V EG4 WallMount Indoor Battery delivers 14.3kWh of UL-certified LiFePO₄ storage designed for residential and commercial ESS applications. With over 8,000 cycles at 80% DoD, an intelligent BMS with real-time monitoring, and an LCD touchscreen, it ensures reliable, long-lasting energy performance. Featuring automatic self-heating, and emergency stop capability, it provides secure, efficient power storage. Equipped with RS485 and CANBus communication, it integrates seamlessly with leading hybrid inverters for flexible grid-tied and off-grid setups.

EG4 Indoor revolutionizing home power
EG4 Indoor Features
UL Certified
EG4 Indoor Features
Power that never sleeps at night
Simple system expansion with inverters
GridBoss

.

See More On YouTube

Battery Downloads

SKU#:FEWMT-48143-G1
Spec Sheet:DownloadDOWNLOAD
Quick Start Guide:DownloadDOWNLOAD
UL9540A Certificate:DownloadDOWNLOAD
UL1973 Certificate:DownloadDOWNLOAD
Connection Guide:DownloadDOWNLOAD
Monitoring & Settings Guide:DownloadDOWNLOAD
Maintenance Guide:DownloadDOWNLOAD
Firmware Update Guide:DownloadDOWNLOAD
CEC Listing- EG4 WallMount Indoor:Go to linkGO TO LINK

Battery Specifications

System Voltage:48V
Nominal Voltage:51.2V
Chemistry:LiFePO4
kWh Capacity:14.3kWh
Ah Capacity:280Ah
BMS Charging Voltage (Bulk/Absorb):56V (±0.8V)
Rec. Charging Voltage (Bulk/Absorb):56.2V (±0.2V)
Rec. Float Setting:54V (±0.2V)
Rec. SoC Cutoff Setting:20%
Max. Continuous Charge/Discharge Current:200A
Rec. Charge Current:60 – 160A
Rec. Discharge Current:160A
Max Continuous Discharge Rate:10240W
Voltage:56V
Power Consumption:224W
Internal Temperature Cutoffs:≤32ºF (On) | ≥41ºF (Off)
Charging Temperature Range:32ºF – 113ºF (0ºC – 45ºC)
Discharging Temperature Range:-4ºF – 122ºF (-20ºC – 50ºC)
Storage Temperature Range:-4ºF – 122ºF (-20ºC – 50ºC)
Protection Rating:IP20
Communications:RS485 | CANBus
Weight:282.2 lbs (128 kg)
Depth:9.6 in (245 mm)
Width:18.1 in (460 mm)
Height:36.4 in (925 mm)

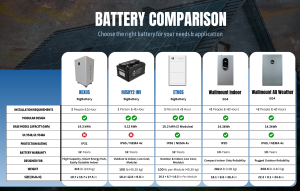

Compare Battery

10-Year EG4 Manufacturer Warranty

×
