Product Summary:
Introducing Apollo 5K: The fastest solar generator, fully solar charged in 90 minutes at 4.4kW. With its groundbreaking 5,376Wh LiFePO4 battery, it can run a full-sized fridge for 60hrs on one charge or 20+ years with solar panels. It’s built to last and impress. That’s why 1,200+ homeowners, homesteaders, off-grid folks and the U.S. Forest Service trust Hysolis. Enjoy 20+ years of regular use with the 5,376Wh battery – one of the largest in any portable power station on the market. Wireless touchscreen to control and monitor your Apollo from up to 60 feet away. Phone app can also be used to control and monitor. Modular & expandable with up to 118kWh of LIFEPO4 expansion battery storage. That’s enough power to power the average home for 4 days straight on a single charge. A wide-variety of AC and DC inputs and outputs enable powering a range of devices and charging from different sources. 100% U.S. based customer service.

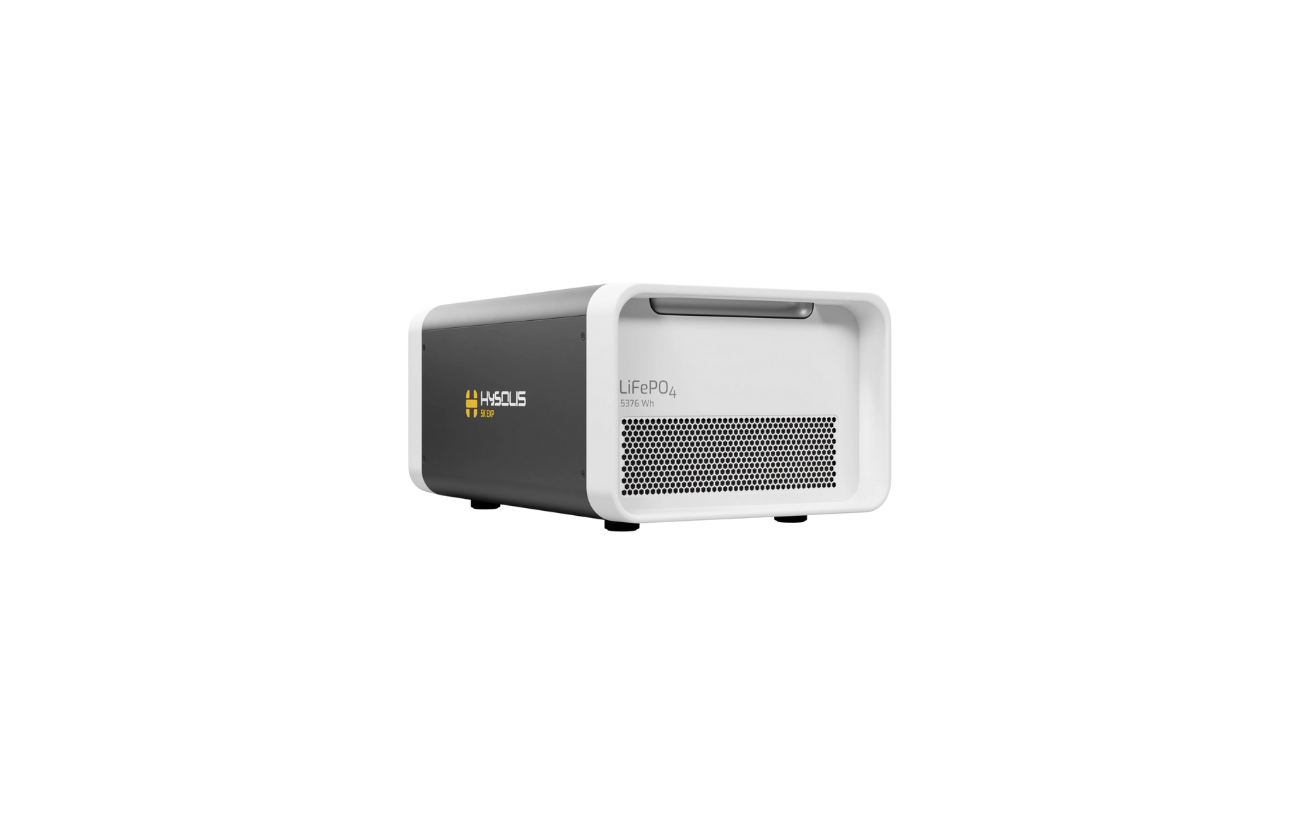

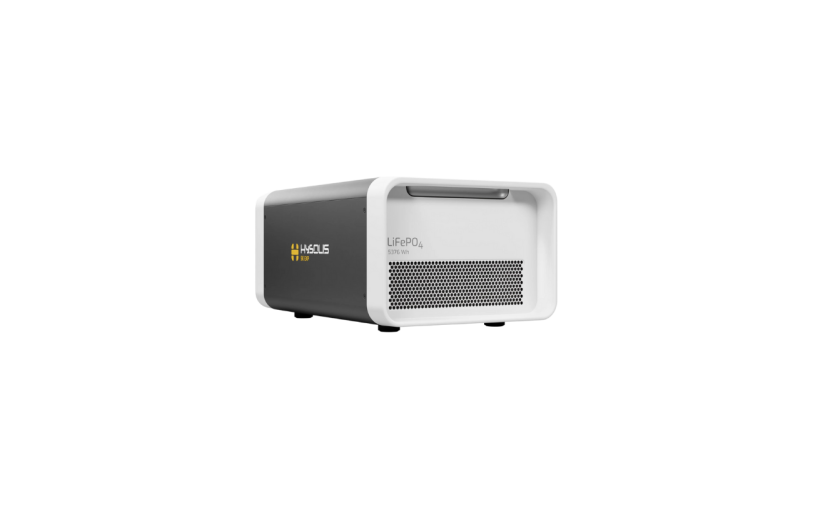

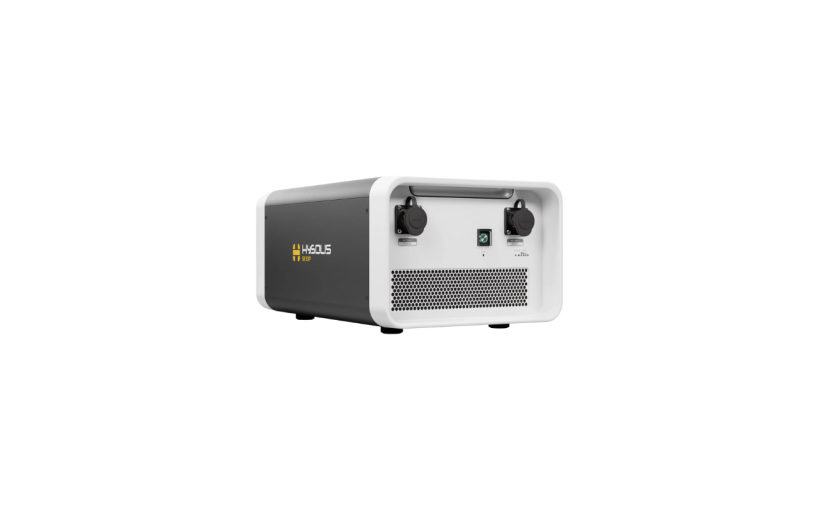

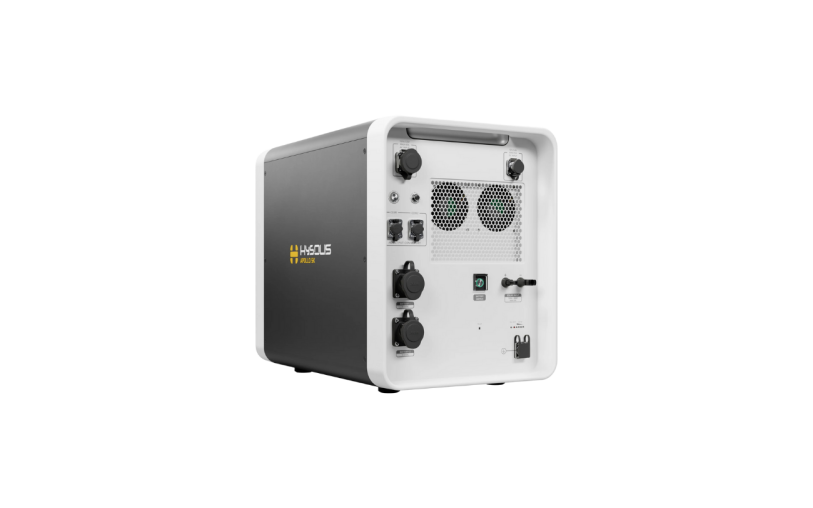

APOLLO 5K
| 120VAC (240VAC with 2 Units) 3,000 W Continuous / 6,000 W Surge (6,000 W Continuous / 12,000W Surge w/ 2 Units) |
BATTERY BANK
| Rated Voltage | 51.2V |
| Battery Type | LiFePO4 |
| Battery Capacity | 5,376Wh |
| Life Cycles | 6,000+ |
BMS SETTINGS
| High Voltage Protection | 60.0 V DC |
| Low Voltage Protection | 40.0 V DC |
| Low Voltage Recovery | 44.8 V DC |
| Floating charge voltage | 58.4 V DC |
| Max Current | 105 A |
AC INPUT
| AC Input Voltage | 65 V – 140 V |
| Frequency | 60 Hz or 50 Hz (Auto detection) |
CHARGE
| AC Charger | 3,000 W |
| Car / DC Charger | 240 W |
| Solar Charger | 4,400 W, MPPT Input (Manufacturer Warrantied Voc range 60 V DC – 500 V DC) |
AC OUTPUT
| Voltage Range | 120 V AC +/- 5% (Inverter Mode) |
| Output Wave | Pure Sine Wave |
| Efficiency | >94% |
| Frequency | 60 Hz or 50 Hz +/- 1% (Inverter Mode) |
| Transfer Time | <20 ms (Typical load) |
DC OUTPUT
| 5 V USB | USB 2.0 x2, USB 3.0 x1, USB-C x1 |
| 12 V DC 30A Anderson Port | x1 |
| 12 V DC 15A Cigarette Lighter | x1 |
| 5 V Wireless Charging Pad | x1 |
| 12 V DC 2A DC5221 Port | x2 |
WORKING TEMPERATURES
| Operating Ambient Temp | +32 to +104 F (0 to +40 C) |
| Storage Ambient Temp | +14 to +115 F (-10 to +45 C) |
SIZE / WEIGHT
| Product Size | L 23.2 in x W 14.6 in x H 18.6 in (18.9 including feet) (L 589mm x W 371mm x H 472mm [480mm including feet]) |
| Weight | 131 lbs (59.5 kg) |
MAX INPUT
| AC Input (UPS + Charge) | 3,600 W |
| Solar Input (Inversion + Charge) | 5,000 W |
| AC + Solar (UPS + Charge) | 7,400 W |
