Product Summary:

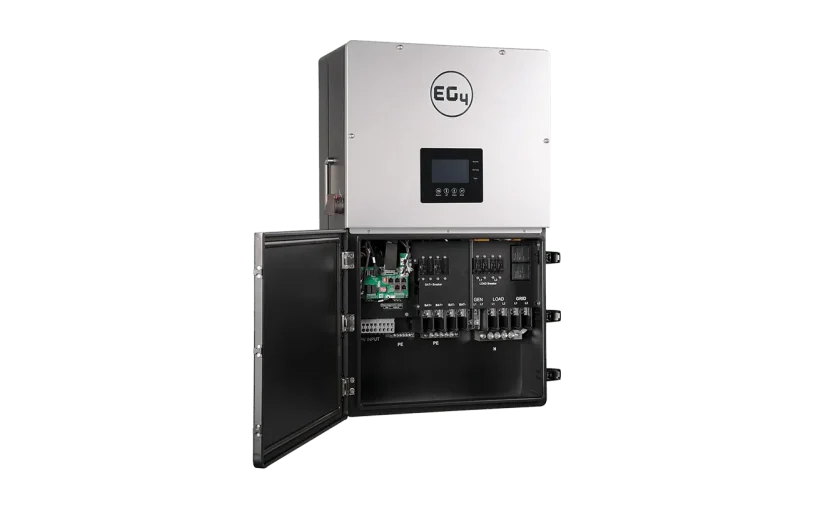

The EG4 12K Hybrid Inverter delivers 12,000W of power with up to 18,000W PV input, ideal for large home or off-grid energy systems. Featuring 3 MPPT inputs, built-in breakers, and a fast 15–30ms UPS switch, it ensures seamless, efficient operation. Its transformer-free design keeps it lightweight and energy-efficient while supporting smart load control, AC coupling, and peak shaving to cut energy costs and protect against grid outages. An intuitive LCD touchscreen and remote monitoring make setup and management simple.

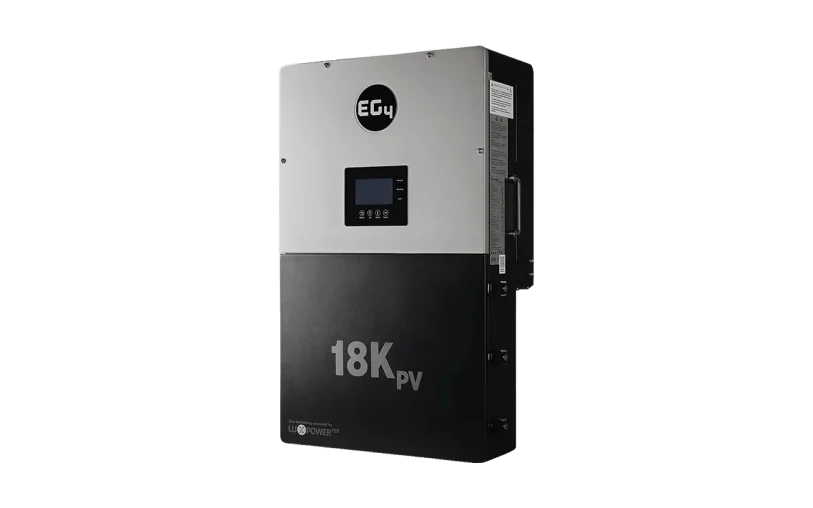

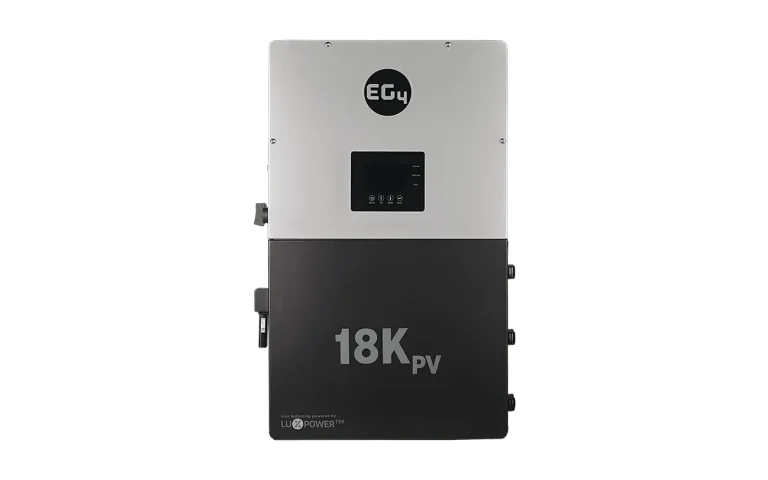

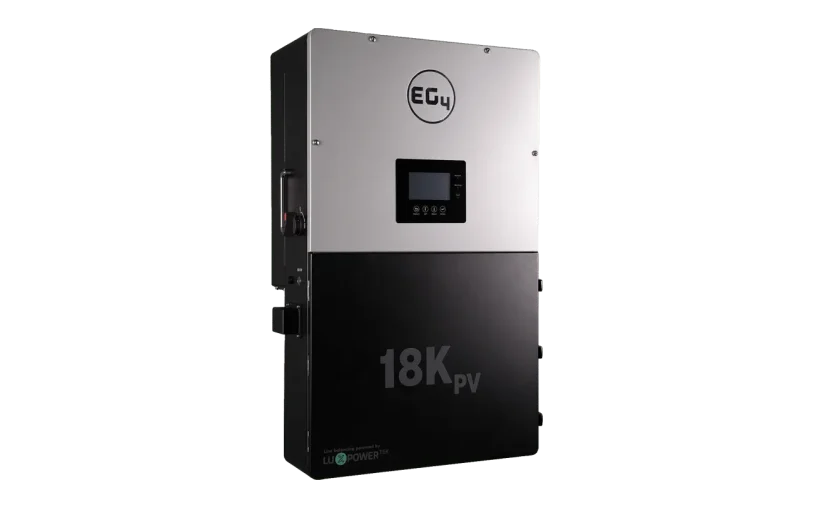

EG4 18kPV All-in-One Hybrid Solar Inverter | 18kW PV / 12kW AC | Split-Phase | 4-MPPT | Scalable | Remote Wi-Fi Monitoring
SKU# INV024
Choose Your Inverter Option*
Choose Your Battery Option*
Choose Your Inverter Quantity*
Standard
Large
3 Phase
.
See More On YouTube
Inverter Downloads
SKU#:INV024
Spec Sheet:
DOWNLOAD
DOWNLOADUser Manual:DOWNLOAD
DOWNLOADUL 1741 Certificate:DOWNLOAD
DOWNLOADUL 1741 CRD PCS Test Verification Of Conformity Security:DOWNLOAD
DOWNLOADRapid Shut Down Wiring Guide:DOWNLOAD
DOWNLOADWhitepapers, Firmware, & Wiring Diagrams:
GO TO LINK
GO TO LINKCEC Listing – EG4 18kPv:GO TO LINK
GO TO LINKInverter Specifications
AC Voltage:120V AC / 240V AC
AC Frequency:50 Hz / 60 Hz
Nominal Voltage:51.2V
Max. Continuous AC Current:50A @ 240V AC
Max. AC Input Power:12000W
Max. AC Bypass:200A
Operating Voltage Range:180 – 270V AC
Output Voltage:120V AC / 240V AC
Max. Continuous Output Current:50A
Output Power:12000W
BMS Cutoff Range:42 – 47V
Surge Capacity (with PV):14700W (10 min) / 15500W (5 min)
Surge Capacity (without PV):13500W (10 min)
Max. Continuous Line Wattage:6000W
Power Factor:0.99 (Full Load)
Reactive Power Adjustment Range:0.8 ~ 0.8 Leading Adjustable
Total Harmonic Distortion:<5% (Full Load)
Transfer Time:10 – 20 ms (Single) / 20 ms (Parallel)
Max. Continuous Output Current:50A
AC Bypass (Generator):90A
Output Voltage:120V AC / 240V AC
Output Power:12000W
Max. Continuous Line Wattage:8000W (per 120V)
Operating Voltage Range:180 – 270V AC
Output Frequency:50 Hz / 60 Hz
Max. Output Power (with PV):14700W (10 min) / 15500W (5 min)
Max. Output Power (without PV):13500W (10 min)
Total Harmonic Distortion Voltage:<5%
Switching Time:10 ms
No. of MPPTs:3
Inputs per MPPT:2 (MPPT 1) / 1 (MPPT 2 & 3)
Max. Input Current:25A (MPPT 1) / 15A (MPPT 2 & 3)
Max. Short Circuit Input Current:31A (MPPT 1) / 19A (MPPT 2 & 3)
DC Input Voltage Range:100 – 600V DC
Start Up Voltage:100V DC
MPPT Operating Voltage Range:140 – 500V DC
MPPT Voltage:360V DC
Max. PV Array Power:18000W
Max. Efficiency:94 – 99.9%
Idle Consumption:~70W (Normal) / ~18W (Standby Mode)
Nominal Voltage:48V DC
Voltage Range:40 – 60V DC
Max. Charge / Discharge Current:250A
Recc. Battery Capacity per Inverter:>200 Ah
Operating / Storage Temperature Range:-13ºF – 140ºF (-25ºC – 60ºC)
Altitude:<6,561 ft (2000 m)
Relative Humidity:0 – 100%
Typical Noise Emission:68 dB @ 3 ft
Protection Rating:IP65 / NEMA 4X
Communications:RS485 / CANBus / WiFi
Max. Parallel Connections:10
Weight:121 lbs (55 kg)
Depth:11.2 in (285 mm)
Width:20.5 in (520 mm)
Height:34.3 in (871 mm)
Compare Inverter
10-Year EG4 Manufacturer Warranty
×
