Product Summary:

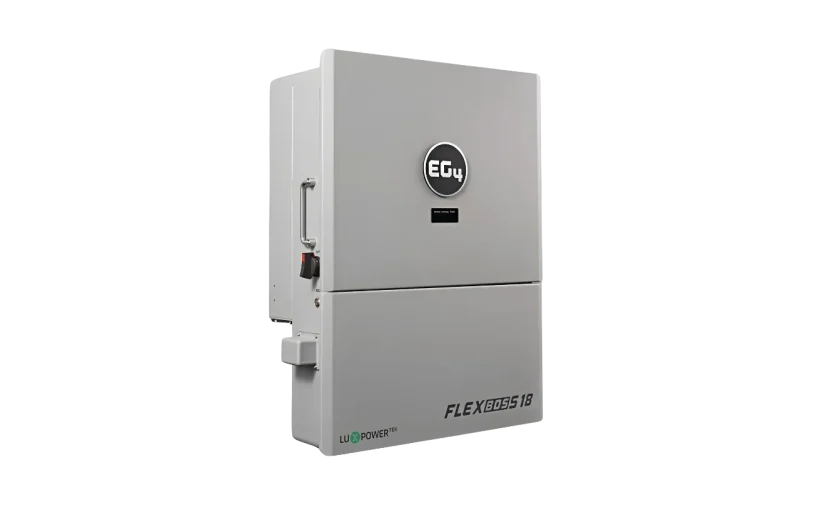

The EG4 FlexBOSS18 is a high-capacity, split-phase hybrid inverter built for powerful residential or commercial energy systems. With 18,000W of PV input, dual MPPTs supporting 4 strings, and 90A grid feed-through at 120/240VAC, it delivers superior flexibility and grid-tied reliability. Seamlessly pairing with EG4’s GridBOSS MID gateway, the FlexBOSS18 enables smart load management, AC coupling, and generator support while reducing installation time and costs. Safety features include rapid shutdown, ground fault and arc fault protection, plus industry-leading certifications. With remote monitoring, Wi-Fi connectivity, and mobile alerts, the FlexBOSS18 offers efficient, scalable power with advanced control. Elevate your solar or off-grid system with this powerful, future-ready inverter.

EG4 FlexBOSS18 Hybrid Solar Inverter | 18kW PV / 13kW AC | Split-Phase | 3-MPPT | Scalable | Remote Wi-Fi Monitoring

$5,059.00$3,499.00
YOU SAVED: $1,560.00
SKU# INV031

Choose Your Inverter Option*

EG4 12kPV EG4 18kPV EG4 FlexBOSS18 EG4 FlexBOSS21

Choose Your Battery Option*

BigBattery ETHOS EG4 280Ah All Weather EG4 280Ah Indoor EG4 314Ah All Weather EG4 314Ah Indoor None

Choose Your Inverter Quantity*

Standard

Standard

Large

Large

3 Phase

3 Phase

Choose Your Inverter Option*

EG4 6000XP EG4 12000XP VICTRON MP II 3000 VICTRON MP II 5000

Choose Your Battery Option*

BigBattery NEXUS BigBattery ETHOS BigBattery HUSKY2 INV EG4 280Ah All Weather EG4 280Ah Indoor
SKU: INV031 Categories: ,

Compatible Accessories & Additional Add-ons

EG4 FlexBoss18 Inverter - easily scalable
UL Certified - EG4 FlexBoss18 Inverter
power stays on in rain and snow - EG4 FlexBoss18 Inverter
GridBoss
EG4 lineup

.

See More On YouTube

Inverter Downloads

SKU#: INV031
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
UL1741 Certificate:DownloadDOWNLOAD
CEC Listing- EG4 FlexBoss18:Go to linkGO TO LINK

Inverter Specifications

Nominal AC Voltage:120/240VAC | 120/208VAC (L1/L2/N required)
Frequency:60 Hz (Default) | 50 Hz
Max. AC Current:54A @ 240V | 54A @ 208V
Max. AC Input Power:13000W
Max. AC Bypass:90A
Operating Voltage Range:180 – 270VAC
Output Voltage:120/240VAC | 120/208VAC (L1/L2/N required)
Max. Output Current:66.7A
Output Frequency:60 Hz (Default) | 50 Hz
Nominal Output Power (without PV):12000W @ 240V | 12000W @ 208V
Nominal Output Power (with PV):16000W @ 240V | 13800kW @ 208V
Power Factor:0.99 (Full Load)
Reactive Power Adjustment Range:-0.8 – 0.8 Leading Adjustable
Total Harmonic Distortion:<5% (Full Load)
Transfer Time:20ms (Default) | 10ms (Configurable) | 20ms (Parallel)
Rated Output Current:50A @ 240V | 57.7A @ 208V
Nominal Output Voltage:120/240VAC | 120/208VAC
Rated Output Power:12000W @ 240VAC | 12000W @ 208VAC
Peak Power:20000W (0.5 sec) | 15000W (1 sec)
12500W (6 min) | 11000W (12 min)
Operating Frequency:60 Hz (Default) | 50 Hz
Total Harmonic Distortion Voltage:<5%
No. of MPPTs:2
Inputs per MPPT:2 (MPPT 1) | 2 (MPPT 2)
Max. Usable Input Current:26A (MPPT 1) | 26A (MPPT 2)
Max. Short Circuit Input Current:31A (MPPT 1) | 31A (MPPT 2)
DC Input Voltage Range:100 – 600VDC
Unit Start-Up Voltage:200VDC
MPPT Operating Voltage Range:120 – 440VDC
Nominal MPPT Voltage:360VDC
Max. Utilized PV Array Power:1818000W
Max. Recommended PV Input:18000W
Max. Efficiency:97.5% (PV to Grid) | 94.5% (PV to Battery) | 94% (Battery to Grid)
Idle Consumption:<65W
Nominal Voltage:48VDC
Voltage Range:40 – 60VDC
Max. Charge / Discharge Power:10000W
Recommended Battery Capacity per Inverter:>300Ah
Operating / Storage Temperature Range:-13ºF – 140ºF (-25ºC – 60ºC)
Operating Altitude:<6,561 ft (2000 m)
Relative Humidity:0 – 100%
Typical Noise Emission:<50dB @ 3 ft
Design Topology:High-Frequency / Transformerless
Protection Rating:IP65 / NEMA 4X
Communications:RS485 / CANBus / WiFi / 4G
Max. Parallel Connections:10
Weight:115 lbs (52 kg)
Depth:11.2 in (287 mm)
Width:22.8 in (567 mm)
Height:30.5 in (775 mm)

10-Year EG4 Manufacturer Warranty

×
