Product Summary:

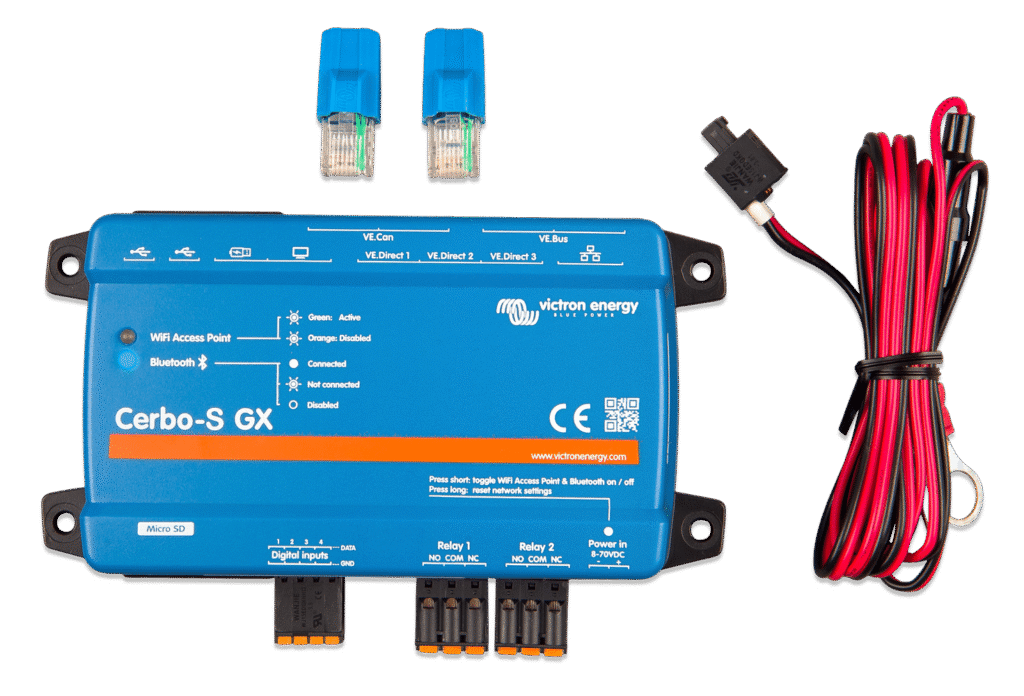

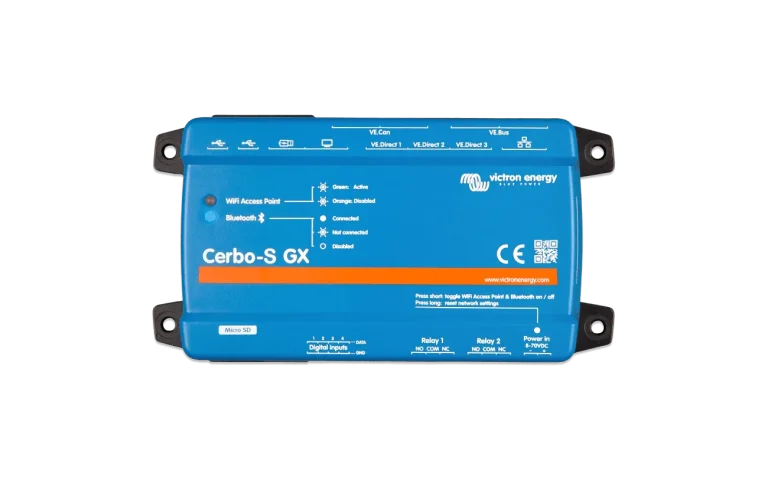

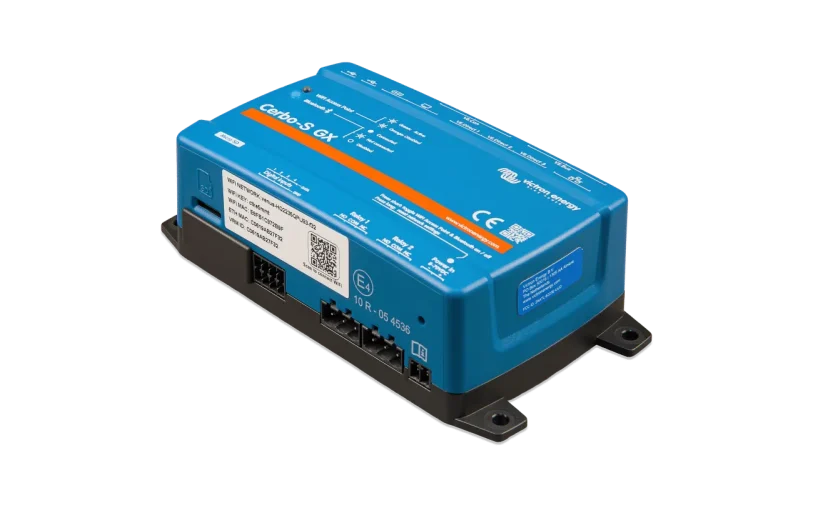

The Victron Cerbo-S GX is a compact, high-performance system communication and monitoring hub designed to deliver complete control over Victron-based energy systems from anywhere. As part of Victron’s GX platform, the Cerbo-S GX centralizes system data and control, allowing users to optimize performance, efficiency, and reliability across off-grid, mobile, and residential ESS installations.



Using the Victron Remote Management (VRM) portal or VictronConnect app, users can monitor battery state of charge, power consumption, solar production, and generator or grid input in real time. Powered by a dual-core processor, the Cerbo-S GX supports up to 15 VE.Direct devices, enables remote configuration, generator auto-start/stop logic, shore power current limits, alerts, and diagnostics. Designed for installer-friendly integration with a simplified single-cable connection, the Cerbo-S GX is an efficient, cost-effective solution for smart energy system monitoring and control.

Features

  • Remote Console Monitoring
  • Built-In WiFi Access Point
  • WiFi & Bluetooth LED Indicators
  • Ethernet, Micro SD, & USB Ports
  • Dual Core Processing Unit
  • Lightweight & Compact

Inverter Downloads

SKU#:CNT059
Spec Sheet:DownloadDOWNLOAD

Inverter Specifications

Supply Voltage:8V – 70V DC
Power Draw:2.8W @ 12V
Operating Temperature Range:-4ºF – 122ºF (-20ºC – 50ºC)
Protection Rating:IP20
Resistive Tank Level Inputs:None
Temperature Sense Inputs:None
Digital Inputs:4
Relays:2 x NO/NC
VE.Direct Ports:3 (isolated)
Max. VE.Direct Devices:15
VE.Bus Ports:2x RJ45 (paralleled, isolated)
VE.Can:Yes (non-isolated)
BMS-Can Port:No
Bluetooth:Yes
Depth:1.9 in
Width:6 in
Height:3.1 in
Certifications:IEC 62368-1, EN 301489-1/17, & ECE R10-6
×
