Aims 2000 Watt Pure Sine Inverter Charger with Transfer Switch
$790
12 Year Warranty
Applied To Batteries Only

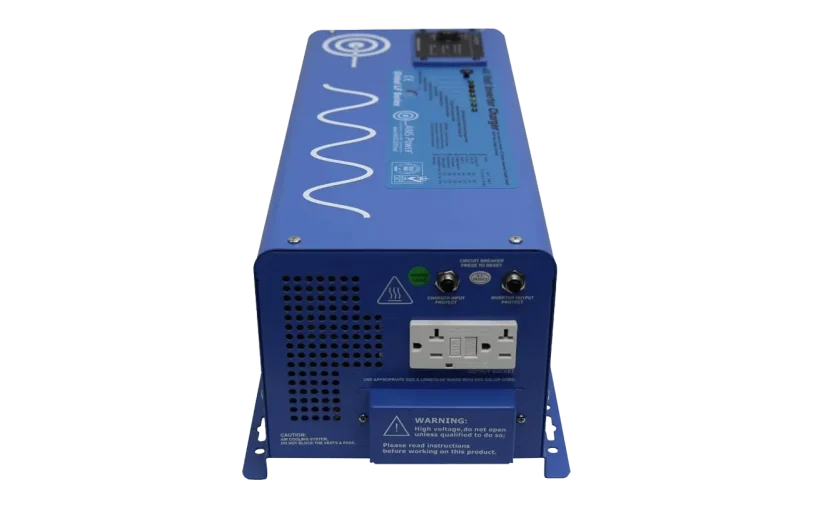

Aims 2000 Watt Pure Sine Inverter Charger with Transfer Switch
$790
Currently building a power system of your own? Or maybe you’re a veteran homesteader looking to expand the 12V system you have. No matter where you are on the path to energy independence, we’ve got the components to keep you moving forward. With this 2000W, Pure Sine Inverter & Charger from AIMS Power®, your solar-powered home, off-grid homestead, solar-equipped RV or camper van, commercial UPS system, mobile power setup, or backup UPS will be operating at peak efficiency, and ensuring your power is readily available when or wherever you need it.
This cutting-edge dual inverter-charger boasts a 300% surge capability, automatic frequency detection, power factor correction, adjustable multi-stage battery charger, and built-in AC transfer switch, guaranteeing incredibly low transfer times. When paired with a lithium battery bank, this automatic transfer switch creates seamless transitions between grid, solar, and battery input priorities and serves as an essential component for any emergency or backup power system looking to serve as a truly uninterrupted power supply. This inverter also comes equipped with an integrated low-frequency transformer. This heavy-duty transformer greatly reduces the levels of harmonic distortion during the conversion process, resulting in a cleaner, more efficient delivery of power to the rest of your system, increasing overall system reliability and efficiency, and creating a significantly quieter operating experience.
With robust features, setting selectability, and extensive protections, the AIMS Power® 2kW Inverter & Charger is one of the safest, most reliable, most versatile, and most essential inclusions for any energy enthusiast looking to set up or upgrade their power system!
Tech Specs
SKU: | PICOGLF20W12V120VR |
Battery Voltage: | 12VDC |
INVERTER OUTPUT
Continuous Output Power: | 2000W |
Surge Rating: | 6000W (20 sec.) |
Output Waveform: | Pure Sine Wave |
Output Waveform (Bypass Mode): | Same as Input |
Output Frequency (Auto-Detecting): | 50/60Hz (±0.3Hz) |
Nominal Efficiency (Peak): | >88% |
Line Mode Efficiency: | >95% |
Transfer Time: | 10ms (Max.) |
Total Harmonic Distortion: | <10% DC |
Ambient Operating Temperature: | -10ºC (14ºF) - 50ºC (122ºF) |
INVERTER INPUT
Nominal Input Voltage: | 12VDC |
Minimum Start Voltage: | 10VDC |
High Battery Voltage Alarm: | 16VDC |
Low Battery Voltage Alarm: | 10.5 - 11VDC |
Low Battery Voltage Trip: | 10 - 10.5VDC |
Low Battery Voltage Restart: | 13.3VDC |
Idle Consumption: | 28W |
Idle Consumption (Power Saver Mode): | 12.7W |
AC CHARGER
Output Voltage: | Adjustable |
Charge Rate: | 70A |
Over Charge Protection Shutdown: | 15.7V |
DIMENSIONS
Weight: | 41 lbs |
Depth: | 16.5 in |
Width: | 8.75 in |
Height: | 7.1 in |
Manual Download | Click Here |
Features
- 300% Surge Capability
- Heavy-Duty Low-Frequency Transformer
- 30A Automatic Transfer Switch & Bypass Terminal Breaker
- Battery Priority Selector
- AC Direct Connect Terminal Block
- Auto Frequency Detection
- Power Factor Correction
- Integrated Four-Stage Smart Charger
- Charger Settings for 7 Battery Types
- Adjustable Charge Current
- 20A Charger Breaker
- 15A GFCI Outlet
- Selectable 25W Power Save (Hibernation) Mode
- Grounding Electrode Terminal
- Protected, Conformal-Coated Boards
- Compact & Portable
Suitable For
- 12V Power Systems
- Residential Solar Systems
- Small to Mid-Sized Off-Grid Systems
- Commercial UPS Systems
- RV & Camper Van Systems
- Industrial Power Tools
- Emergency & Backup Power
- Mobile Power Conversion
- Marine & Boat APS Systems
For more information or larger quantity inquiries, visit our B2B page or please call our sales team at #(818) 280-3091
