48V 1X HUSKY 2 KIT – 3K Growatt Inverter
$2,650
10 Year Warranty
Applied To Batteries Only

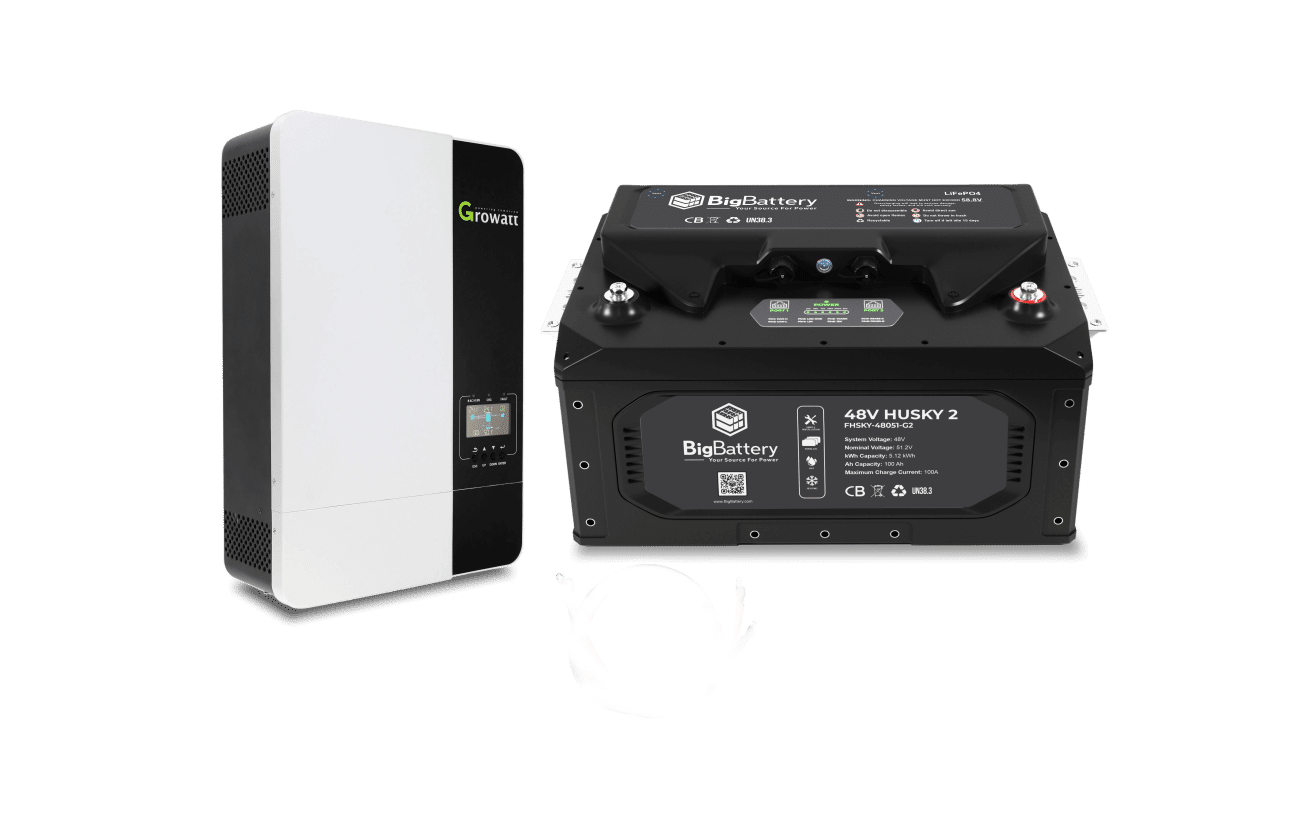

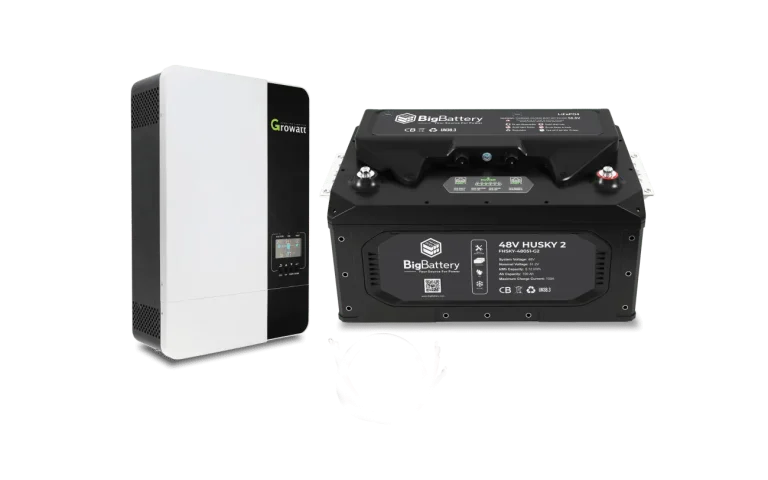

48V 1X HUSKY 2 KIT – 3K Growatt Inverter
$2,650
Included Components
Included Components
SECOND GENERATION POWER STORAGE IS HERE! This 48V 5.12kWh LiFePO4 HUSKY 2 Kit is the latest and greatest from BigBattery, providing a robust solution, with unmatched reliability and efficiency, for any off-grid power system, emergency backup, or mobile power setup in your RV or camper van.
The HUSKY 2 is our most energy-dense 48V solution to date, designed to provide ultimate peace of mind during operation, whether that’s in your home during a blackout, or while out boondocking in the countryside! From its Tier 1 LFP cells to its generous operating parameters and wide temperature range, this battery redefines versatility and durability when it comes to lithium power storage, and boasts comprehensive BMS protections against Over/Under Voltage and Over Current statuses, as well as a thermal management system that affords a generous operating temperature range. But that’s not all!
The HUSKY 2 comes with state-of-the-art features to enhance the safety and visibility of your power. Not only is it housed in an IP65-rated, vibration-resistant casing, and equipped with an advanced BMS capable of auto-balancing cells, but it also boasts a self-heating function which supports cold weather charging, ensuring you have reliable power through every season. Plus, the HUSKY 2 features full CANBus & RS485 communication protocols, and we pair the HUSKY 2 with a cutting-edge 3000W Growatt inverter, equipped with its own in-depth LCD display, so you can always stay up to date on the status and performance of your power, including remote monitoring from anywhere in the world with this inverter’s independent WiFi module.
Equipped with the 48V HUSKY 2, you’ll be saving space and weight no matter the application, and you can rest easy knowing you’re powered and prepared day in and day out. Shop the all-new 48V HUSKY 2 & HUSKY 2 Kits today!
300%
10 Year Savings Vs Lead-Acid
1/3
4X
100%
Battery Specs
SKU: | FHSKY-48051-G2 |
GTIN-12 (U.P.C.): | 850061252678 |
System Voltage: | 48V |
Nominal Voltage: | 51.2V |
Chemistry: | LiFePO4 |
kWh Capacity: | 5.12kWh |
Ah Capacity: | 100Ah |
Charging Voltage Range: | 55.6 - 57V |
Max Charge Voltage: | 58.8V |
Operating Voltage Range: | 48 – 57V |
Suggested Low Voltage Cutoff: | 48 – 50.8V |
BMS Cutoff Range: | 42 - 47V |
Cell Configuration: | 16S |
Max Continuous Discharge Current: | 150A |
Recommended Continuous Discharge Current: | 100A |
Max Continuous Power: | 7500W |
Recommended Continuous Power: | 4000W |
Max Discharge Peak Current: | 225A (Max 5 seconds) |
Max Charge Current: | 100A |
Charge Temperature Range: | -4°F - 113°F (-20°C - 45°C) |
Discharge Temperature Range: | -4°F - 122°F (-20°C - 50°C) |
Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
Storage Temperature Range: | -4°F - 122°F (-20°C - 50°C) (Max 6 months) |
Weight: | 100 lb (45.4 kg) |
Depth: | 12.6 in (320 mm) |
Width: | 18.1 in (460 mm) |
Height: | 9.8 in (249 mm) |
Max Connections: | Up to (16) Parallel |
Protection Rating: | IP65 |
Communications: | CANBus / RS485 |
Self-Heating: | Yes |
Spec Sheet Download: | Click Here |
User Manual Download: | Click Here |
Safety Data Sheet Download: | Click Here |

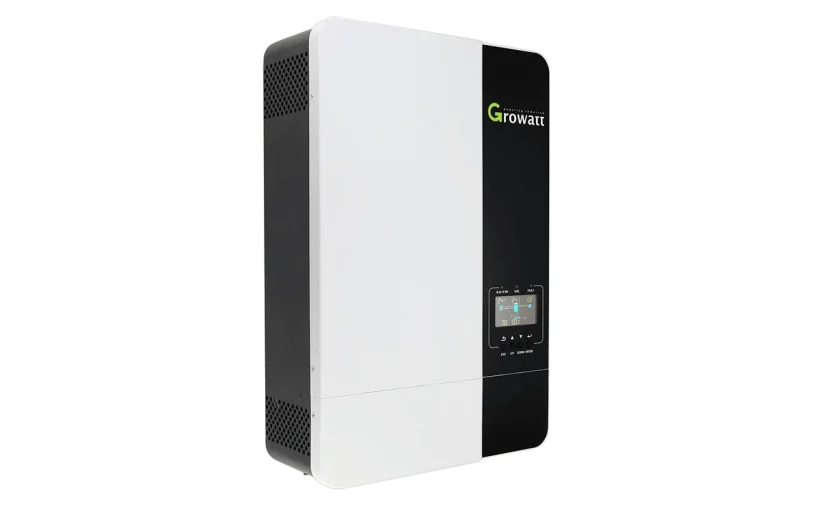

Inverter Specs
SKU: | SPF 3000TL LVM-ES |
Battery Voltage: | 48VDC |
INVERTER OUTPUT
Rated Power: | 3000VA/3000W |
Surge Power: | 6000VA |
AC Voltage Regulation (Battery Mode): | 100/110/120VAC at 50/60Hz |
Waveform: | Pure Sine Wave |
Efficiency (Peak): | 90% |
Transfer Time (Typical) : | 10ms |
Transfer Time (Max.) : | 20ms |
Parallel Capability: | Yes (Max 6 units) |
AC CHARGER
Input Voltage: | 120VAC |
Selectable Voltage Range (For Personal Computers): | 95 - 140VAC |
Selectable Voltage Range (Home Appliances): | 65 - 140VAC |
Charge Current | 40A |
Frequency Range (Auto-Sensing): | 50/60Hz |
SOLAR CHARGER
Max. PV Array Power: | 4000W |
Max. PV Charge Current: | 80A |
Max. PV Array Open Circuit Voltage: | 250VDC |
No. of Independent MPP Trackers / Strings Per MPP Tracker: | 1/1 |
Standby Power Consumption: | 2W |
DIMENSIONS
Weight: | 26.5 lbs |
Depth: | 5.3 in |
Width: | 13 in |
Height: | 19.1 in |
OPERATING ENVIRONMENT
Operating Temperature: | 0°C (32°F) - 50°C (122°F) |
Storage Temp: | -15°C (5°F) - 60°C (140°F) |
Relative Humidity (Non-Condensing): | 5% - 95% |
Protection Rating: | IP20 |
Manual Download | Click Here |
Spec Sheet Download | Click Here |
Shine WiFi-F Spec Sheet Download | Click Here |
Designed For 48V Applications
- LEAD ACID REPLACEMENT
- OFF-GRID SYSTEMS
- EMERGENCY BACKUP
- CLASS A, B, & C RVs
- CAMPER VANS
- FOOD TRUCKS
- COMMERCIAL VEHICLES
- MOBILE POWER SETUPS
- INCLUDES INTERNAL WARMERS
- OPERATES IN SUB-ZERO TEMPS
For more information or larger quantity inquiries, visit our B2B page or please call our sales team at #(818) 280-3091
