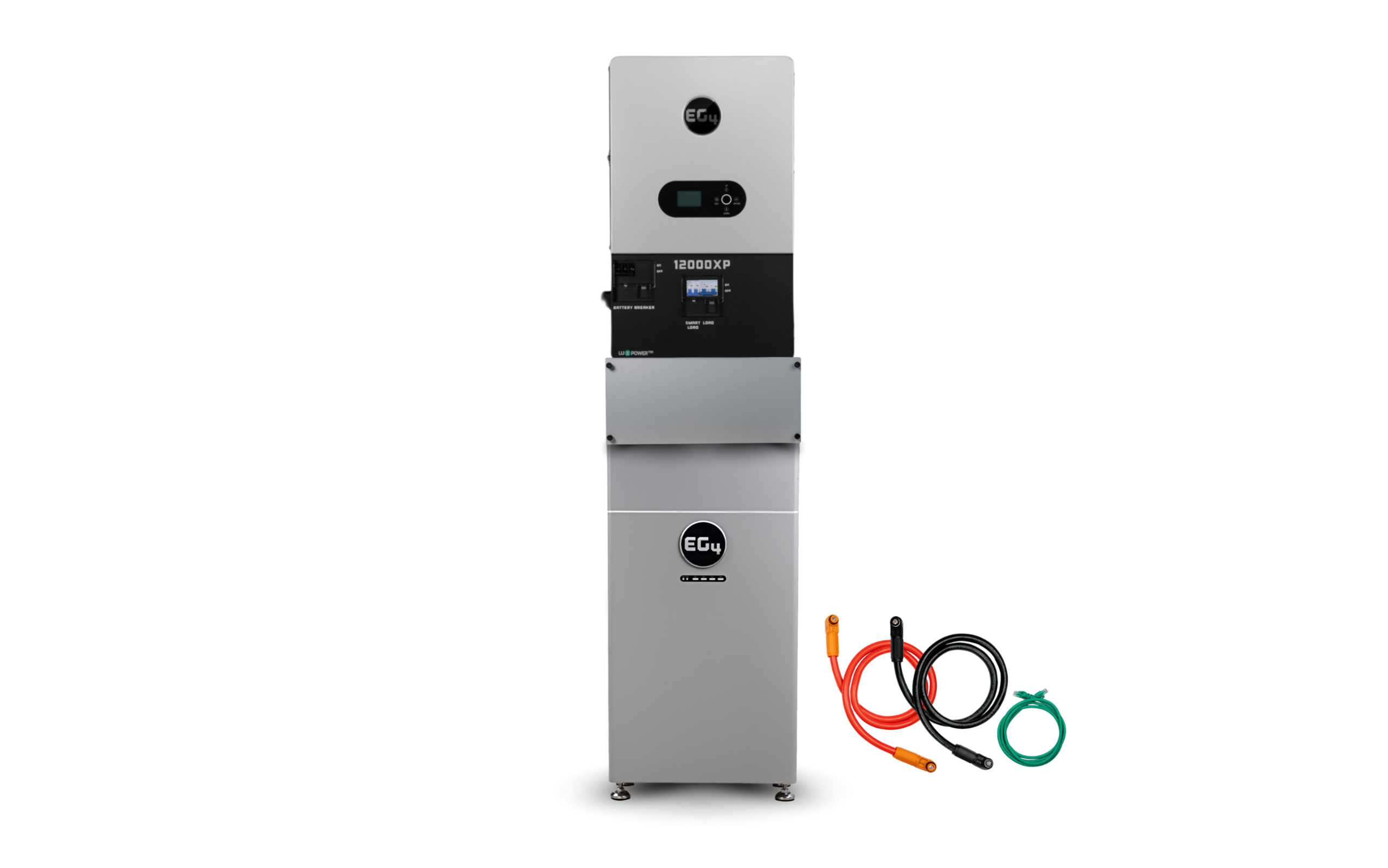

EG4 WallMount 314Ah Indoor Battery + 12000XP V2 Inverter
EG4 WallMount 314Ah Indoor Battery + 12000XP V2 Inverter - Image 2
EG4 WallMount 314Ah Indoor Battery + 12000XP V2 Inverter - Image 3
EG4 WallMount 314Ah Indoor Battery + 12000XP V2 Inverter - Image 4
EG4 WallMount 314Ah Indoor Battery + 12000XP V2 Inverter - Image 5
EG4 WallMount 314Ah Indoor Battery + 12000XP V2 Inverter - Image 6
EG4 WallMount 314Ah Indoor Battery + 12000XP V2 Inverter - Image 7

Product Summary:

The EG4 314Ah Indoor Battery + EG4 12000XP ESS System delivers smart power, simple reliability, and scalable energy independence for both on-grid and off-grid applications. Combining the high-capacity 16.1kWh EG4 WallMount Indoor LiFePO₄ battery with the powerful EG4 12000XP hybrid inverter, this system provides dependable whole-home backup and efficient energy management in a compact, space-saving design.



The EG4 12000XP delivers up to 12,000W split-phase output with 24,000W PV input and dual MPPTs, enabling strong solar production and seamless power management between solar, battery, and grid. Paired with the 314Ah battery – featuring 200A continuous output, 8,000+ cycle life, and an advanced BMS with real-time monitoring – this system ensures stable, long-lasting performance for homes and small businesses.



Designed for safe indoor installation, the battery includes self-heating for cold environments, RS485/CANBus communication for closed-loop integration, and a clean wall-mount design for easy setup. With smart energy controls and maintenance-free operation, this ESS is ideal for energy savings, outage protection, and full energy independence.

Ships From: Texas, USA
Warranty: 10 Years (Battery), 5 Years (Inverter)
Support: Lifetime USA-Based Tech Support



Compatibility

Integrated & Optimized System:

  • EG4 314Ah Indoor Battery + EG4 12000XP Hybrid Inverter

Expandable & Flexible:

  • Compatible with other EG4 battery systems
  • Scalable energy storage for growing system needs
  • Supports grid-tied, hybrid, and off-grid installations
Key Features
  • Complete ESS Solution – Battery + inverter system designed to work seamlessly together
  • 12,000W Split-Phase Output – Reliable power for whole-home and commercial applications
  • 24,000W PV Input – High solar capacity with dual MPPT optimization
  • 16.1kWh LiFePO₄ Battery (314Ah) – High-capacity, safe indoor energy storage
  • 200A Continuous Output (~9.6kW) – Supports whole-home and critical loads
  • 8,000+ Cycle Life – Long-lasting performance at 80% DoD
  • Advanced BMS Monitoring – Real-time system visibility and protection
  • Self-Heating Function – Reliable operation in colder environments
  • Closed-Loop Communication – Seamless coordination between battery and inverter
  • Smart Energy Management – Supports peak shaving, load control, and AC coupling
  • Wall-Mount Indoor Design – Clean, space-saving installation
  • Maintenance-Free Operation – No routine servicing required

A high-capacity, scalable energy storage system built for reliability, efficiency, and long-term energy independence.

EG4 WallMount 314Ah Indoor Battery + 12000XP V2 Inverter

$5,895.00
SKU# K0257

Choose Your Inverter Option*

EG4 18kPV EG4 FlexBoss18 EG4 FlexBoss21 None

Choose Your Battery Option*

BigBattery ETHOS EG4 280Ah All Weather EG4 280Ah Indoor EG4 314Ah All Weather EG4 314Ah Indoor None

Choose Your Inverter Option*

APEX-6.5K APEX-10K EG4 6000XP EG4 12000XP VICTRON MP II 3000 VICTRON MP II 5000 None

Choose Your Battery Option*

BigBattery NEXUS BigBattery ETHOS BigBattery HUSKY2 INV EG4 280Ah All Weather EG4 280Ah Indoor EG4 314Ah All Weather EG4 314Ah Indoor None

Choose Your ESS Configuration*

1x Inverter

Standard

2x Inverter

Large

3x Inverter

3 Phase

SKU: K0257-V Category:
Free Shipping on orders $5000+

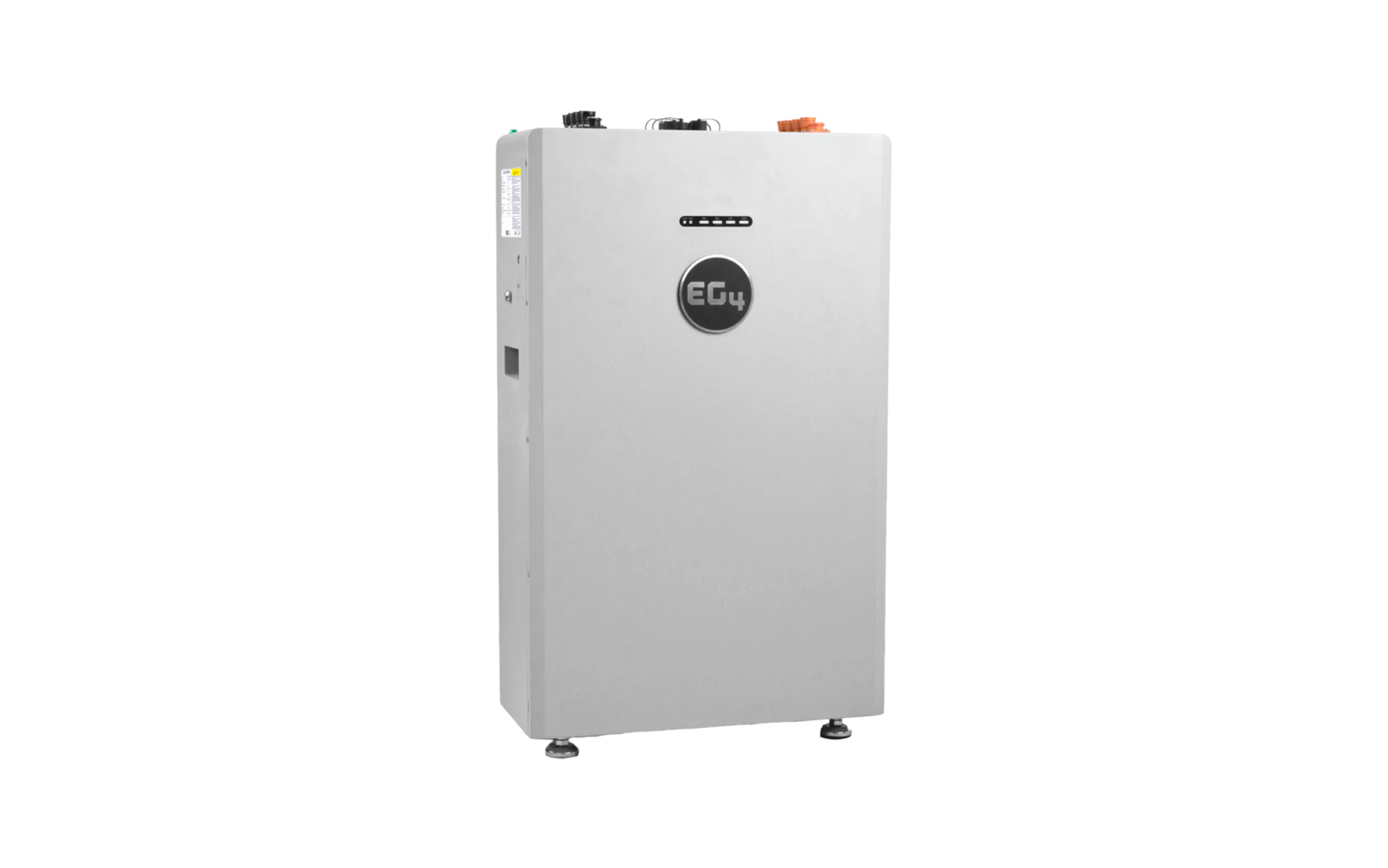

Introducing the Indoor 314Ah Batteries!

Smart power. Simple reliability. Whether you want lower energy costs or more control during outages, the EG4 WallMount 314Ah Indoor Battery delivers dependable whole-home backup in a compact design. With 16.1 kWh of storage capacity and 200A continuous output, it provides consistent performance for your home or small business — all while fitting seamlessly into your indoor setup.

Battery Downloads

SKU#:FEWMT-48161-G1
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
Quick Start Guide:DownloadDOWNLOAD
Certification of Compliance:DownloadDOWNLOAD
Certification of Conformity:DownloadDOWNLOAD

Battery Specifications

Product Type:Low Voltage LFP Battery
Battery Type:Lithium Iron Phosphate (LFP)
Model Number:WM-48-314-IN-XX (XX is a number between 00 – 99)
Nominal Energy Capacity:16kWh
Usable Energy (DOD%):12.86kWh (80% recommended)
Voltage Range:47.5 – 57.6 VDC
Nominal Voltage:51.2 VDC
Capacity:314Ah
Charging Voltage Range:56 – 57 VDC
Discharging Cut-off Voltage:47.5 VDC
Max Continuous Charge Current:157A
Max Continuous Discharge Current:200A
Continuous Charge/Discharge Power:8/10.2 kW
Recommended Charging/Discharging Rate:0.5C
Peak Power:12.8kW (3 sec)
Round-trip Efficiency:95%
Max Parallel Units:16
Protection Features:Over/Under Voltage, Over-Current, Short Circuit, High/Low Temp
Battery Management System (BMS):Integrated, Active Balancing
Communication Protocols:RS485, CAN
Battery Breaker:250A
Storage Temperature Range**:-4 – 131°F (-20 – 55°C)
Humidity Range:5% – 95% RH (non-condensing)
Altitude:9843 ft. (<3000 m)
Cooling Method:Natural Convection
Dimensions (H × W × D):34.1 in. × 18.1 in. × 9.6 in. (865 mm × 460 mm × 245 mm)
Operating Temperature Range:Charge: 32 – 122°F (0 – 50°C); Discharging: -4 – 131°F (-20 – 55°C)
Recommended DOD Setting Note*:EG4 recommends this value be set no lower than 20% to maintain the recommended 80% Depth of Discharge.
Storage Temperature Note**:Less than 3 months of storage. If longer than 3 months, recommended storage temperature will be 59°F – 86°F (15°C – 30°C).
Weight:293.2 lbs. (133 kg)
Enclosure Rating:IP20
Mounting Options:Wall/Floor mount
Display/Indicators:LED Status
Connector Type:Degson quick connector/screw terminal
UL 1973:Yes
UL 9540A:Batt to Batt spacing of 6 in.
UN 38.3:Yes
FCC Part 15 (EMC):Yes
Protection Class:Class B
Cycle Life (70% EOL Capacity):10000 cycles @ 0.5C, 25°C, 80% DOD
Design Life*:10 years
Warranty:10 years or 10000 cycles
Application Type:Residential/Commercial/Off-grid/Backup
Lifetime Energy Throughput (Calculated):(51.2V×314Ah/1000×80%×10000/1000)90% = 115.7 MWh or (12861 kWh×10000 cycles×90% efficiency) = 115.7 MWh
Note:Information subject to change without notice.

Inverter Downloads

SKU:K0257, K02258, K0259, K0260, K0261, K0262, K0263
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
UL1741 Certificate:DownloadDOWNLOAD
UL9540 Certificate:DownloadDOWNLOAD
WiFi Configuration Guide:DownloadDOWNLOAD
CEC Listing – EG4 12000XP:Go to linkGO TO LINK

Inverter Specifications

Nominal AC Voltage:120/240VAC | 120/208VAC (L1/L2/N required)
Frequency (Grid | Generator):60 Hz (Default) | 50 Hz (Configurable)
Max Continuous AC Current (Grid | Generator):100A @ 240VAC | 62.5A @ 240VAC
Max AC Input Power:24000W
AC Bypass (Grid | Generator):100A | 90A
Recommended Generator Capacity:6000W – 15000W
Output Voltage:120/240VAC | 208VAC
Output Frequency:60 Hz (Default) | 50 Hz (Configurable)
Max Continuous Output Current:50A @ 240VAC | 57.7A @ 208VAC
Nominal Output Power (without PV):12000W @ 240V | 12000W @ 208V
Nominal Output Power (with PV):12000W @ 240V | 12000W @ 208V
Max Continuous Wattage:12000W (L1/L2) | 6000W (L1-N/L2-N)
Surge Capacity:18000W (5 sec) | 15000W (10 sec)
Power Factor:0.99
Total Harmonic Distortion:<3%
Switching Time:<10 ms (Single) | <20 ms (Parallel)
No. of MPPTs (Inputs per MPPT):2 (2)
Max Input Current:35A / 35A
Max Short Circuit Input Current:44A / 44A
DC Input Voltage Range:100 – 480VDC
Min Start Up Voltage:100VDC
MPPT Operating Voltage Range:120 – 385VDC
Nominal MPPT Voltage:320VDC
Max Utilized PV Power:24000W (12000W per MPPT)
Max Recommended PV Input:28000W (14000W per MPPT)
Efficiency:99% (MPPT) | 93.5% (PV to Loads) | 92.8% (PV to Battery) | 92.5% (AC to Battery) | 90.2% (Battery to Loads)
Idle Consumption (Standby Mode):<70W
Nominal Voltage:48VDC
Battery Voltage Range:46.4 – 60VDC
Max Charge / Discharge Current:250A
Max Charge / Discharge Power:12000W
DC Cut-Off Voltage:59VDC
Recommended Battery Capacity per Inverter:>400Ah
Max Parallel Connections:6
Protection Rating:IP20
Communication Interface:RS485 / CANBus / WiFi
Operating Temperature (Full Load):32ºF – 113ºF (0ºC – 45ºC)
Storage Temperature:5ºF – 140ºF (-15ºC – 60ºC)
Altitude:<6,561 ft (2000 m)
Relative Humidity:5 – 95% (Non-Condensing)
Typical Noise Emission:<60 dB
Cooling Method:Fan
Weight:104.7 lbs (47.5 kg)
Depth:5.9 in (150 mm)
Width:20.9 in (530 mm)
Height:34.25 in (870 mm)
