Everything You Need, Included

Everything in the box

MountEG4 Indoor Buildable Conduit Box1× EG4 Indoor Buildable Conduit Box

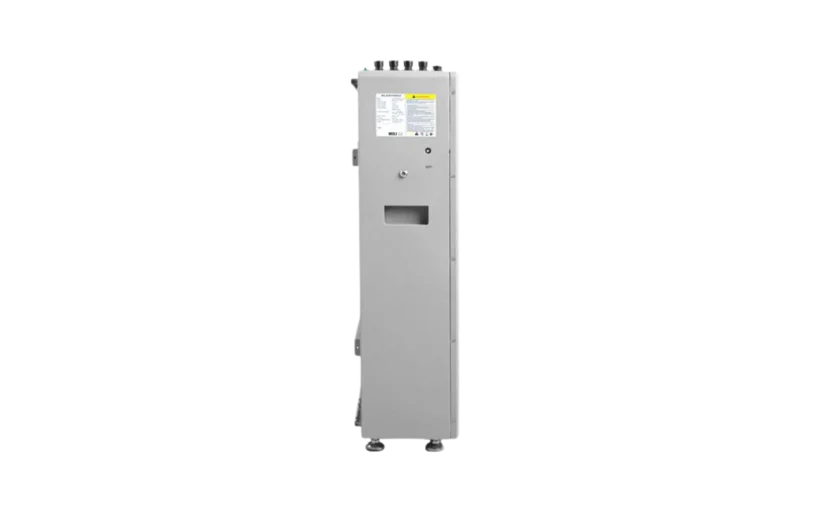

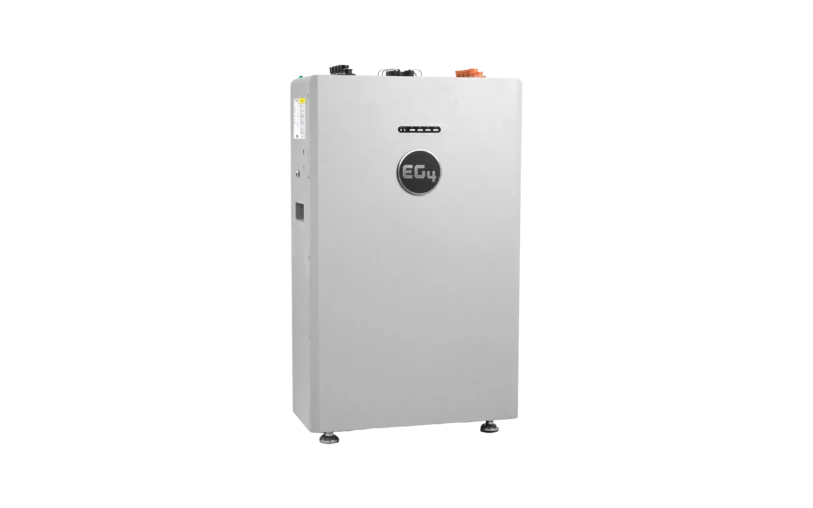

MountEG4-WallMount Indoor Battery1× EG4-WallMount Indoor Battery
InverterEG4 12000XP (24kPV) OFF-GRID INVERTER1× EG4 12000XP (24kPV) OFF-GRID INVERTER
  • U.S. Support
  • LiFePO₄ Safety

EG4 WallMount 314Ah Indoor Battery + 12000XP V2 Inverter | Off-Grid Home Solar System

SKU# K0257

Change inverter or battery

Loading specifications…

Choose Your ESS Configuration*

Compare the available system sizes and choose the configuration that fits your power needs.

1x Inverter

Standard

Great for small homes or basic backup needs.

Residential

2x Inverter

Large

Ideal for larger homes or higher energy demands.

Extended Power

3x Inverter

3 Phase

For commercial, agricultural or high-load applications.

Maximum Capacity
SKU: K0257-V Category:
$5,392.97
Orders over $3,000 Qualify For Free Shipping!
Add to cart for 7% OFF

-

Documents & Certifications

Battery

Inverter

About this item

The EG4 314Ah Indoor Battery + EG4 12000XP ESS System delivers smart power, simple reliability, and scalable energy independence for both on-grid and off-grid applications. Combining the high-capacity 16.1kWh EG4 WallMount Indoor LiFePO₄ battery with the powerful EG4 12000XP hybrid inverter, this system provides dependable whole-home backup and efficient energy management in a compact, space-saving design.



The EG4 12000XP delivers up to 12,000W split-phase output with 24,000W PV input and dual MPPTs, enabling strong solar production and seamless power management between solar, battery, and grid. Paired with the 314Ah battery – featuring 200A continuous output, 8,000+ cycle life, and an advanced BMS with real-time monitoring – this system ensures stable, long-lasting performance for homes and small businesses.



Designed for safe indoor installation, the battery includes self-heating for cold environments, RS485/CANBus communication for closed-loop integration, and a clean wall-mount design for easy setup. With smart energy controls and maintenance-free operation, this ESS is ideal for energy savings, outage protection, and full energy independence.

Ships From: Texas, USA
Warranty: 10 Years (Battery), 5 Years (Inverter)
Support: Lifetime USA-Based Tech Support



Compatibility

Integrated & Optimized System:

  • EG4 314Ah Indoor Battery + EG4 12000XP Hybrid Inverter

Expandable & Flexible:

  • Compatible with other EG4 battery systems
  • Scalable energy storage for growing system needs
  • Supports grid-tied, hybrid, and off-grid installations
Key Features
  • Complete ESS SolutionBattery + inverter system designed to work seamlessly together
  • 12,000W Split-Phase OutputReliable power for whole-home and commercial applications
  • 24,000W PV InputHigh solar capacity with dual MPPT optimization
  • 16.1kWh LiFePO₄ Battery (314Ah)High-capacity, safe indoor energy storage
  • 200A Continuous Output (~9.6kW)Supports whole-home and critical loads
  • 8,000+ Cycle LifeLong-lasting performance at 80% DoD
  • Advanced BMS MonitoringReal-time system visibility and protection
  • Self-Heating FunctionReliable operation in colder environments
  • Closed-Loop CommunicationSeamless coordination between battery and inverter
  • Smart Energy ManagementSupports peak shaving, load control, and AC coupling
  • Wall-Mount Indoor DesignClean, space-saving installation
  • Maintenance-Free OperationNo routine servicing required

A high-capacity, scalable energy storage system built for reliability, efficiency, and long-term energy independence.

Introducing the Indoor 314Ah Batteries!

Smart power. Simple reliability. Whether you want lower energy costs or more control during outages, the EG4 WallMount 314Ah Indoor Battery delivers dependable whole-home backup in a compact design. With 16.1 kWh of storage capacity and 200A continuous output, it provides consistent performance for your home or small business — all while fitting seamlessly into your indoor setup.

Battery Downloads

SKU#:FEWMT-48161-G1
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
Quick Start Guide:DownloadDOWNLOAD
Certification of Compliance:DownloadDOWNLOAD
Certification of Conformity:DownloadDOWNLOAD
DC ESS UL-9540 Certification:DownloadDOWNLOAD

Battery Specifications

Product Type:Low Voltage LFP Battery
Battery Type:Lithium Iron Phosphate (LFP)
Model Number:WM-48-314-IN-XX (XX is a number between 00 – 99)
Nominal Energy Capacity:16kWh
Usable Energy (DOD%):12.86kWh (80% recommended)
Voltage Range:47.5 – 57.6 VDC
Nominal Voltage:51.2 VDC
Capacity:314Ah
Charging Voltage Range:56 – 57 VDC
Discharging Cut-off Voltage:47.5 VDC
Max Continuous Charge Current:157A
Max Continuous Discharge Current:200A
Continuous Charge/Discharge Power:8/10.2 kW
Recommended Charging/Discharging Rate:0.5C
Peak Power:12.8kW (3 sec)
Round-trip Efficiency:95%
Max Parallel Units:16
Protection Features:Over/Under Voltage, Over-Current, Short Circuit, High/Low Temp
Battery Management System (BMS):Integrated, Active Balancing
Communication Protocols:RS485, CAN
Battery Breaker:250A
Storage Temperature Range**:-4 – 131°F (-20 – 55°C)
Humidity Range:5% – 95% RH (non-condensing)
Altitude:9843 ft. (<3000 m)
Cooling Method:Natural Convection
Dimensions (H × W × D):34.1 in. × 18.1 in. × 9.6 in. (865 mm × 460 mm × 245 mm)
Operating Temperature Range:Charge: 32 – 122°F (0 – 50°C); Discharging: -4 – 131°F (-20 – 55°C)
Recommended DOD Setting Note*:EG4 recommends this value be set no lower than 20% to maintain the recommended 80% Depth of Discharge.
Storage Temperature Note**:Less than 3 months of storage. If longer than 3 months, recommended storage temperature will be 59°F – 86°F (15°C – 30°C).
Weight:293.2 lbs. (133 kg)
Enclosure Rating:IP20
Mounting Options:Wall/Floor mount
Display/Indicators:LED Status
Connector Type:Degson quick connector/screw terminal
UL 1973:Yes
UL 9540:DC ESS, AC ESS with EG4 18kPV, 12kPV, FlexBOSS 21, FlexBOSS 18*
UL 9540A:Batt to Batt spacing of 6 in.
UN 38.3:Yes
FCC Part 15 (EMC):Yes
Protection Class:Class B
Cycle Life (70% EOL Capacity):10000 cycles @ 0.5C, 25°C, 80% DOD
Design Life*:10 years
Warranty:10 years or 10000 cycles
Application Type:Residential/Commercial/Off-grid/Backup
Lifetime Energy Throughput (Calculated):(51.2V×314Ah/1000×80%×10000/1000)90% = 115.7 MWh or (12861 kWh×10000 cycles×90% efficiency) = 115.7 MWh
Note:Information subject to change without notice.



Inverter Downloads

SKU: INV030
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
UL1741 Certificate:DownloadDOWNLOAD
WiFi Configuration Guide:DownloadDOWNLOAD
CEC Listing – EG4 12000XP:Go to linkGO TO LINK

Inverter Specifications

Nominal AC Voltage:120/240VAC | 120/208VAC (L1/L2/N required)
Frequency (Grid | Generator):60 Hz (Default) | 50 Hz (Configurable)
Max Continuous AC Current (Grid | Generator):100A @ 240VAC | 62.5A @ 240VAC
Max AC Input Power:24000W
AC Bypass (Grid | Generator):100A | 90A
Recommended Generator Capacity:6000W – 15000W
Output Voltage:120/240VAC | 208VAC
Output Frequency:60 Hz (Default) | 50 Hz (Configurable)
Max Continuous Output Current:50A @ 240VAC | 57.7A @ 208VAC
Nominal Output Power (without PV):12000W @ 240V | 12000W @ 208V
Nominal Output Power (with PV):12000W @ 240V | 12000W @ 208V
Max Continuous Wattage:12000W (L1/L2) | 6000W (L1-N/L2-N)
Surge Capacity:18000W (5 sec) | 15000W (10 sec)
Power Factor:0.99
Total Harmonic Distortion:<3%
Switching Time:<10 ms (Single) | <20 ms (Parallel)
No. of MPPTs (Inputs per MPPT):2 (2)
Max Input Current:35A / 35A
Max Short Circuit Input Current:44A / 44A
DC Input Voltage Range:100 – 480VDC
Min Start Up Voltage:100VDC
MPPT Operating Voltage Range:120 – 385VDC
Nominal MPPT Voltage:320VDC
Max Utilized PV Power:24000W (12000W per MPPT)
Max Recommended PV Input:28000W (14000W per MPPT)
Efficiency:99% (MPPT) | 93.5% (PV to Loads) | 92.8% (PV to Battery) | 92.5% (AC to Battery) | 90.2% (Battery to Loads)
Idle Consumption (Standby Mode):<70W
Nominal Voltage:48VDC
Battery Voltage Range:46.4 – 60VDC
Max Charge / Discharge Current:250A
Max Charge / Discharge Power:12000W
DC Cut-Off Voltage:59VDC
Recommended Battery Capacity per Inverter:>400Ah
Max Parallel Connections:6
Protection Rating:IP20
Communication Interface:RS485 / CANBus / WiFi
Operating Temperature (Full Load):32ºF – 113ºF (0ºC – 45ºC)
Storage Temperature:5ºF – 140ºF (-15ºC – 60ºC)
Altitude:<6,561 ft (2000 m)
Relative Humidity:5 – 95% (Non-Condensing)
Typical Noise Emission:<60 dB
Cooling Method:Fan
Weight:104.7 lbs (47.5 kg)
Depth:5.9 in (150 mm)
Width:20.9 in (530 mm)
Height:34.25 in (870 mm)
