Product Summary:

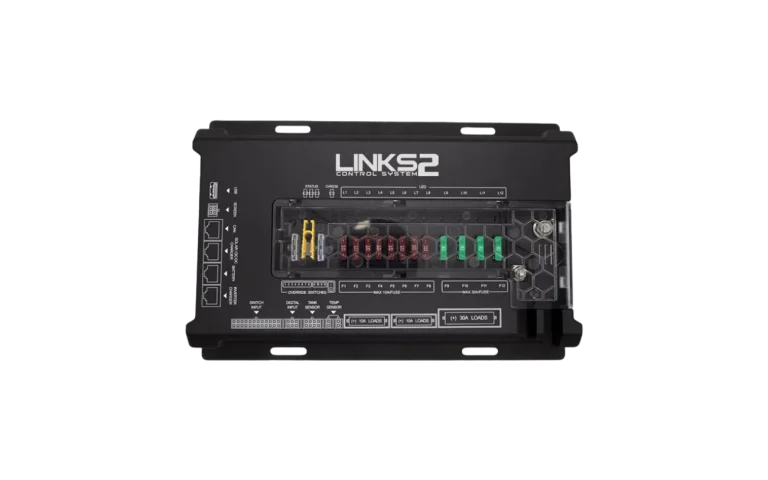

The Links2 Node 12 RV Control System is a powerful hub with 80A max input and 30A output channels, supporting 12 override switches, multiple sensors, and RS485/RV-C interfaces for seamless RV system management.
Description
Take control of your RV with the Links2 Node 12 RV Control System, an advanced solution from Links2, a sister company of LinksWell, Inc. Designed for robust performance, this control system operates at 9-18V with a maximum input current of 80A and features four 30A output channels (including two H-Bridge sets) and eight 10A dimmable PWM channels for precise control of RV systems. With 12 override switches and 12 digital input channels, it offers unparalleled flexibility for managing your RV’s functions.
The Links2 Node 12 includes comprehensive sensor support, featuring two temperature sensors, four tank sensors, four fuel sensors, four LPG sensors, and one voltage sensor, ensuring real-time monitoring of critical systems. Its versatile connectivity options include three RJ45 RS485 ports, one 4-pin RS485 port, one RJ45 CAN/RV-C port, and a USB Type-A port, enabling seamless integration with other RV components. Built with the reliability and innovation of LinksWell, Inc., the Links2 Node 12 is the ultimate control hub for RV enthusiasts seeking efficiency, durability, and advanced system management on their adventures.
Features
| Operating Voltage | 9 ~ 18V |
| MAX.Input Current | 80A |
| MAX.Output Current | 30A |
| Output Channel | 30A x 4 (2 Set H-Bridge), 10A x 8 (Dimmable PWM) |
| Override Switches | 12 |
| Digital Input | 12 (12 Channels) |
| Temperature Sensor | 2 PCS |
| Tank Sensor Input | 4 PCS |
| Fuel Sensor Input | 4 PCS |
| LPG Sensor Input | 4 PCS |
| Voltage Sensor Input | 1 PCS |
| Digital Input | 6 |
| Interface | RJ45(RS485) x 3, 4pin (RS485) x 1, RJ45(CAN/RV-C) x 1, USB x TypeA x 1 |
Description
Take control of your RV with the Links2 Node 12 RV Control System, an advanced solution from Links2, a sister company of LinksWell, Inc. Designed for robust performance, this control system operates at 9-18V with a maximum input current of 80A and features four 30A output channels (including two H-Bridge sets) and eight 10A dimmable PWM channels for precise control of RV systems. With 12 override switches and 12 digital input channels, it offers unparalleled flexibility for managing your RV’s functions.
The Links2 Node 12 includes comprehensive sensor support, featuring two temperature sensors, four tank sensors, four fuel sensors, four LPG sensors, and one voltage sensor, ensuring real-time monitoring of critical systems. Its versatile connectivity options include three RJ45 RS485 ports, one 4-pin RS485 port, one RJ45 CAN/RV-C port, and a USB Type-A port, enabling seamless integration with other RV components. Built with the reliability and innovation of LinksWell, Inc., the Links2 Node 12 is the ultimate control hub for RV enthusiasts seeking efficiency, durability, and advanced system management on their adventures.
Features
| Operating Voltage | 9 ~ 18V |
| MAX.Input Current | 80A |
| MAX.Output Current | 30A |
| Output Channel | 30A x 4 (2 Set H-Bridge), 10A x 8 (Dimmable PWM) |
| Override Switches | 12 |
| Digital Input | 12 (12 Channels) |
| Temperature Sensor | 2 PCS |
| Tank Sensor Input | 4 PCS |
| Fuel Sensor Input | 4 PCS |
| LPG Sensor Input | 4 PCS |
| Voltage Sensor Input | 1 PCS |
| Digital Input | 6 |
| Interface | RJ45(RS485) x 3, 4pin (RS485) x 1, RJ45(CAN/RV-C) x 1, USB x TypeA x 1 |
Links2 Node 12
