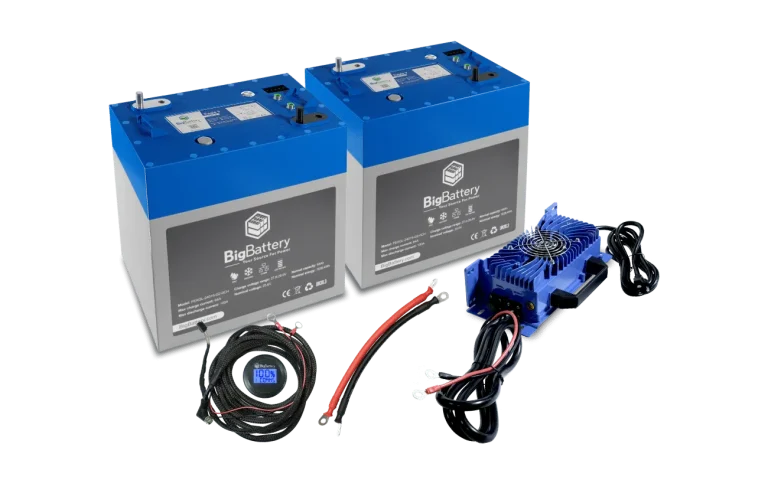

24V 2X EAGLE 2 KIT
$1,845
Included Components
Included Components
2ND GENERATION POWER TAKES FLIGHT! Introducing BigBattery’s all-new 24V 3.26 kWh LiFePO4 2x EAGLE 2 Kit. The EAGLE 2 embodies the reliability and durability you’ve come to expect from BigBattery solutions, packing Tier 1 LFP cells in a compact, GC2 form factor. This energy-dense design allows for effortless installations in your RVs, camper vans, scissor lifts, or other industrial equipment, and the EAGLE 2 serves as a mirror-image replacement for any stock T-105 lead-acid battery.
But the 24V EAGLE 2 provides so much more than efficient, long-lasting lithium power storage. This battery comes standard with advanced features that enhance the safety and visibility of your power. Not only does the EAGLE 2 come equipped with a durable, vibration-resistant casing and an LED capacity meter on the top of the unit, but also supports CANBus communication protocols, so you can always monitor the status and performance of your battery system. Plus, the EAGLE 2 is IP67-rated for comprehensive protection against dust, water, and other contaminants while you’re cruising around the campsite or warehouse.
But that’s not all. The EAGLE 2 was designed to support your applications through every season. Whether you’re going boondocking in the heat of summer, or working at the warehouse or job site in the dead of winter, the EAGLE 2’s advanced BMS supports a wide temperature operating range, and a self-heating function ensures that you never have to put your vacation or work day on pause due to unreliable power. Quit worrying about your power and get back to working hard and playing harder when you equip your vehicle with the all-new 24V EAGLE 2 from BigBattery. Shop 24V EAGLE 2 Kits today and get free shipping when you order 4 or more EAGLE 2 batteries!
SELF-HEATING
COMMUNICATIONS
INSTALLATION

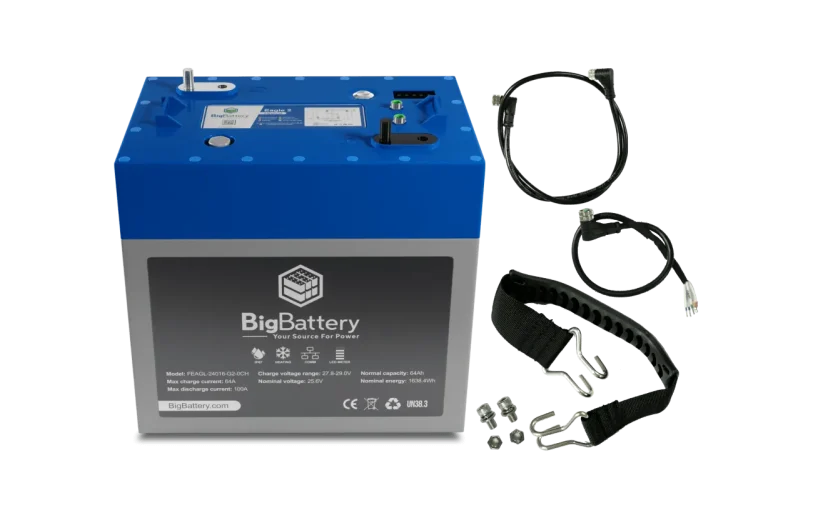

Single Battery Tech Specs
SKU: | FEAGL-24016-G2-0CH |
GTIN-12 (U.P.C.): | 850061252883 |
System Voltage: | 24V |
Nominal Voltage: | 25.6V |
Chemistry: | LiFePO4 |
kWh Capacity: | 1.63kWh |
Ah Capacity: | 64Ah |
Charging Voltage Range: | 27.8 - 29V |
Max Charge Voltage: | 29.2V |
Operating Voltage Range: | 24 - 28.8V |
Suggested Low Voltage Cutoff: | 24 - 25.4V |
BMS Cutoff Range: | 21 - 23.5V |
Cell Configuration: | 8S |
Max Continuous Discharge Current: | 100A |
Max Continuous Power: | 2560W |
Max Discharge Peak Current: | 200A (Max 5 seconds) |
Max Charge Current: | 64A |
Charge Temperature Range: | -4°F - 131°F (-20°C - 55°C) |
Discharge Temperature Range: | -4°F - 140°F (-20°C - 60°C) |
Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
Storage Temperature Range: | 23°F - 95°F (-5°C - 35°C) (Max 3 months) 32°F - 77°F (0°C - 25°C) (Max 12 months) |
Weight: | 38 lb (17.2 kg) |
Depth: | 7.1 in (180 mm) |
Width: | 10.2 in (260 mm) |
Height: | 10.8 in (274 mm) |
Max Connections: | Up to (10) Parallel |
Protection Rating: | IP67 / NEMA 6 |
Communications: | CANBus |
Self-Heating: | Yes |
Spec Sheet Download: | Click Here |
User Manual Download: | Click Here |
CE Certificate: | Click Here |
EMC Certificate: | Click Here |
UN38.3 Certificate: | Click Here |
Designed For 24V Applications
- T-105 EXACT REPLACEMENT
- LIGHT INDUSTRIAL EQUIPMENT
- FLOOR SWEEPERS
- FLOOR SCRUBBERS
- PALLET JACKS
- SCISSOR LIFTS
- LIGHT TOWERS
- CLASS A, B, & C RVs
- CAMPER VANS
- EMERGENCY BACKUP
