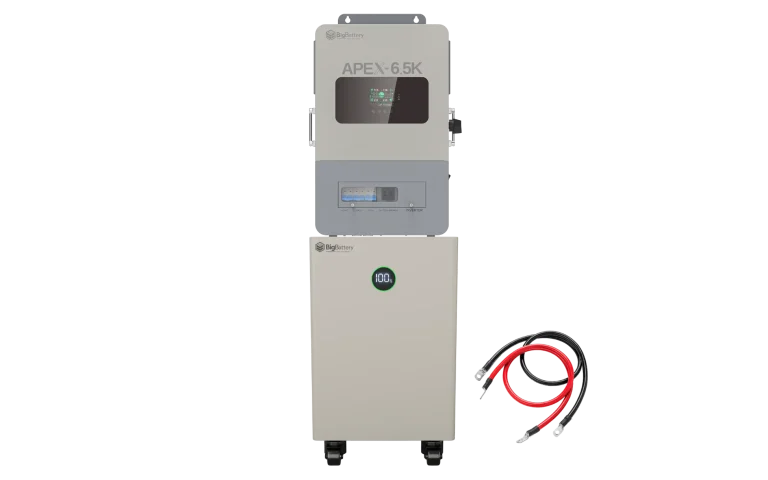

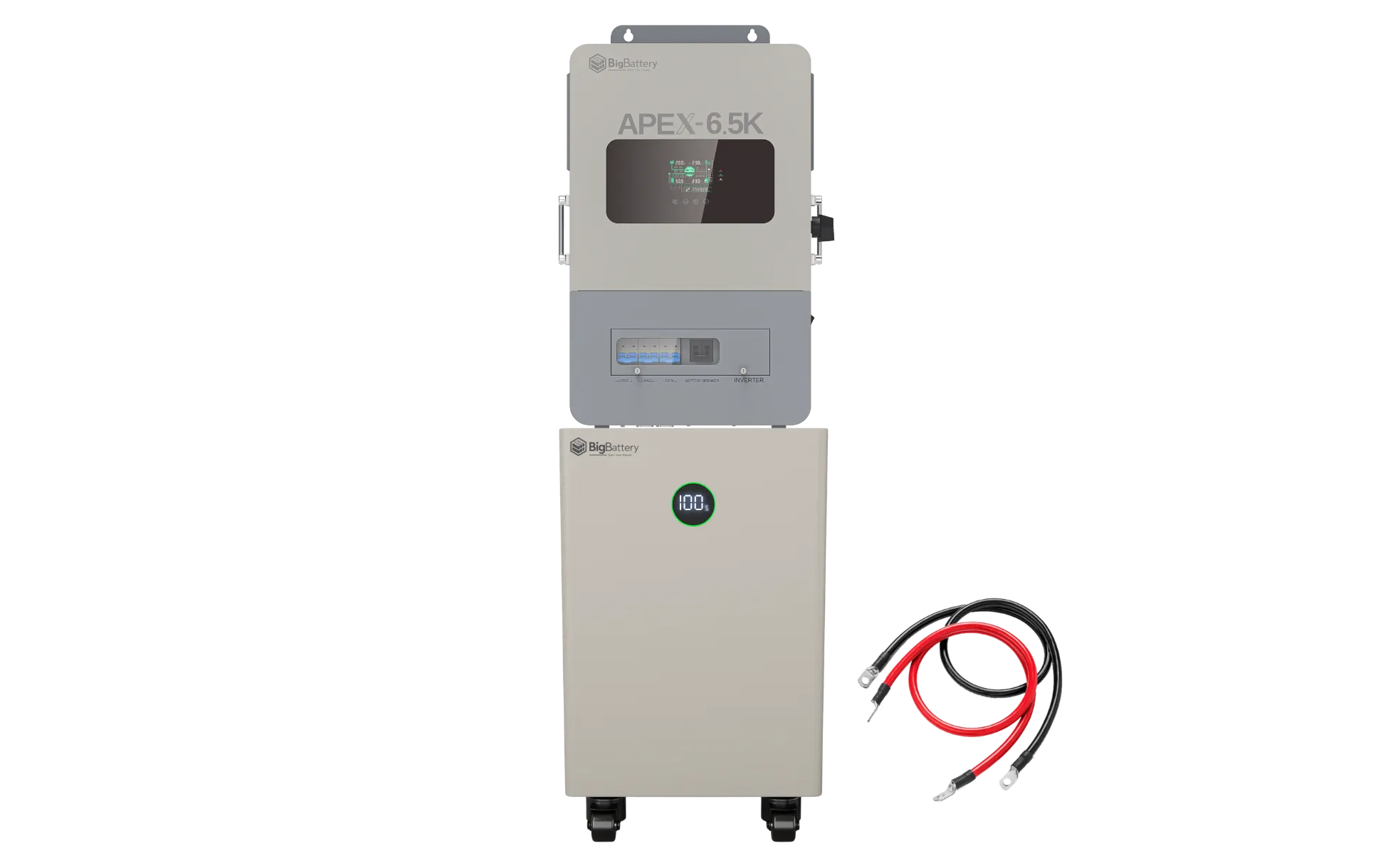

The APEX-6.5K delivers 6,500W of continuous pure sine-wave output with 13,000W of surge capacity, providing reliable power for household appliances, pumps, tools, air conditioners, and other demanding loads. Its configurable single-phase and split-phase output supports standard 120/240V applications, while a typical 10ms switching time helps maintain uninterrupted power when transitioning between available energy sources.

Paired with the NEXUS 2—featuring 16kWh of LiFePO₄ storage, 314Ah capacity, 150A continuous discharge, and up to 7.6kW of continuous battery power—the system is properly sized to support the inverter’s full 6.5kW output. The battery’s 270A one-second peak discharge rating also provides additional current for short equipment-startup demands.

These products are designed for seamless integration. The APEX-6.5K includes a dedicated BigBattery/EG4 BMS communication protocol, allowing it to communicate directly with the NEXUS 2 through RS485 or CAN. Once connected, closed-loop communication allows the inverter to receive battery voltage, state of charge, temperature, charge limits, discharge limits, and protection data directly from the NEXUS 2 BMS.

This coordinated communication helps optimize charging and discharging while protecting the battery from overvoltage, undervoltage, overcurrent, over-temperature, and excessive discharge conditions. Because the inverter follows limits communicated by the NEXUS 2 BMS, the system requires less manual configuration and provides more accurate battery monitoring.

The APEX-6.5K features two independent MPPT channels capable of accepting up to 10,000W of combined solar input, with up to 140A of solar charging current. Separate grid and generator inputs provide flexible supplemental charging and load support, while timed charge and discharge controls allow the system to take advantage of time-of-use electricity rates.

The NEXUS 2 features a rugged IP54-rated floor-standing enclosure, integrated BMS with multiple safety redundancies, and advanced LiFePO₄ cells rated for more than 8,000 cycles. Its indoor/outdoor installation capability and expandable architecture provide dependable energy storage for both residential and remote-power environments.

Ships From: Texas, USA
Warranty: 12 Years (Battery), 5 Years (Inverter)
Support: Lifetime USA-Based Tech Support

Compatibility

Designed to Work Together:

• BigBattery NEXUS 2 48V LiFePO₄ Battery + BigBattery APEX-6.5K Hybrid Inverter
• Matching 48V battery and inverter architecture
• Dedicated BigBattery/EG4 BMS communication protocol
• Closed-loop battery communication through RS485 or CAN
• Automatic communication of battery state of charge and operating limits
• One NEXUS 2 supplies sufficient continuous power for the inverter’s full 6,500W output
• Inverter charging output remains within the NEXUS 2’s 150A maximum charge rating

Expandable & Flexible:

• Expand the NEXUS 2 battery bank up to 15 batteries in parallel
• Maximum battery configuration rated at up to 241.5kWh
• Parallel up to six APEX-6.5K inverters for increased output capacity
• Supports single-phase, split-phase, two-phase, and three-phase configurations
• Supports solar, battery, grid-assisted, and generator-assisted operation
• Suitable for homes, cabins, workshops, sheds, and remote installations

Key Features

• Purpose-Built BigBattery System – Battery and inverter engineered for seamless operation as one complete energy-storage solution
• Dedicated BMS Protocol – Native BigBattery/EG4 communication profile simplifies closed-loop configuration
• Seamless RS485/CAN Connectivity – Enables coordinated charging, discharging, monitoring, and system protection
• 6,500W Continuous Output – Reliable pure sine-wave power for residential and off-grid applications
• 13,000W Surge Capacity – Handles short startup demands from motors, pumps, compressors, and appliances
• 120/240V Split-Phase Output – Supports standard North American household loads from a single inverter
• Fast 10ms Switching – Helps maintain uninterrupted power during source transitions
• 10,000W Maximum Solar Input – Two independent 5,000W PV channels provide strong solar-production capacity
• Dual MPPT Solar Inputs – Independently tracks two solar arrays for flexible system design
• Up to 140A Solar Charging – Provides rapid charging for the high-capacity NEXUS 2 battery
• 16kWh LiFePO₄ Battery – High-capacity energy storage with a 314Ah rating
• 7.6kW Continuous Battery Power – Supports the APEX-6.5K at its full rated output
• 150A Continuous Discharge – Delivers reliable current for demanding household and off-grid loads
• 270A Peak Discharge – Provides one-second support for equipment startup
• 8,000+ Battery Cycles – Engineered to provide more than 12 years of daily cycling
• Advanced Battery Management System – Multiple safety redundancies protect the battery and connected equipment
• Grid and Generator Inputs – Separate AC inputs provide flexible charging and load-support options
• Timed Charging and Discharging – Allows energy use to be scheduled around time-of-use electricity rates
• LCD System Monitoring – Displays real-time power flow, battery status, solar production, and operating conditions
• Optional Wi-Fi Monitoring – Enables remote access to system status and inverter parameters
• 360° Inverter Protection – Includes short-circuit, overcurrent, overvoltage, undervoltage, overload, and thermal protection
• Expandable Battery Storage – Connect up to 15 NEXUS 2 batteries in parallel
• Expandable Inverter Output – Parallel up to six APEX-6.5K inverters for larger installations
• Indoor/Outdoor Battery Installation – Rugged IP54-rated NEXUS 2 enclosure
• Maintenance-Free Operation – Long-lasting LiFePO₄ chemistry with no routine servicing required

A powerful, seamlessly connected BigBattery energy system designed for simple installation, intelligent battery management, expandable storage, and dependable power for years to come.
