ETHOS 2x Expansion Kit
$3,770
10 Year Warranty
Applied To Batteries Only
ETHOS 2x Expansion Kit
$3,770
Included Components
Included Components
REVOLUTIONIZING RESIDENTIAL ESS! BigBattery’s 48V ETHOS systems are here, and this 10.24kWh Expansion Kit is the ideal solution for upgrading your current ETHOS System in your home or office. Please note that this Expansion Kit does not include a Control Box, and these 2 stackable battery modules (up to 16 total per Control Box) can be connected in parallel to your ETHOS Control Box to complete an energy storage system that fits your specific power needs.

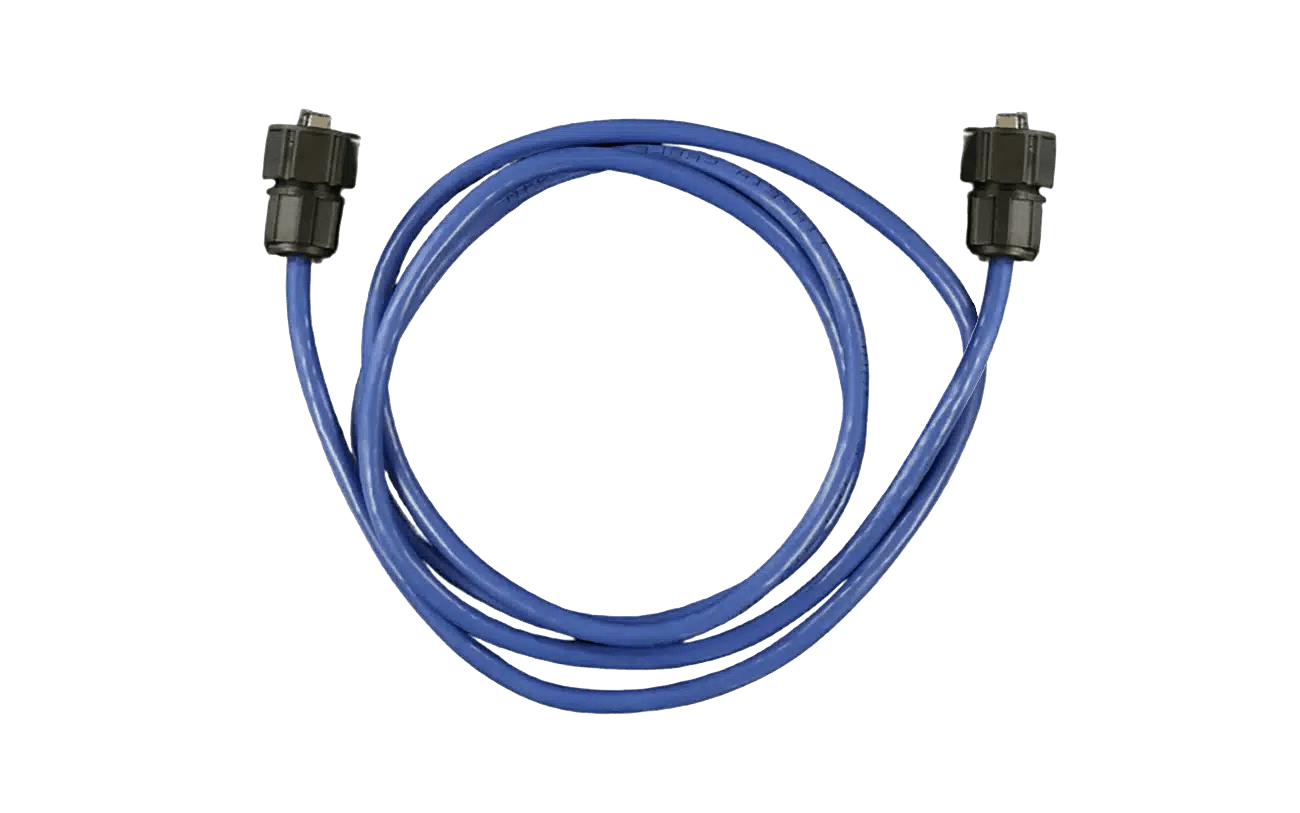

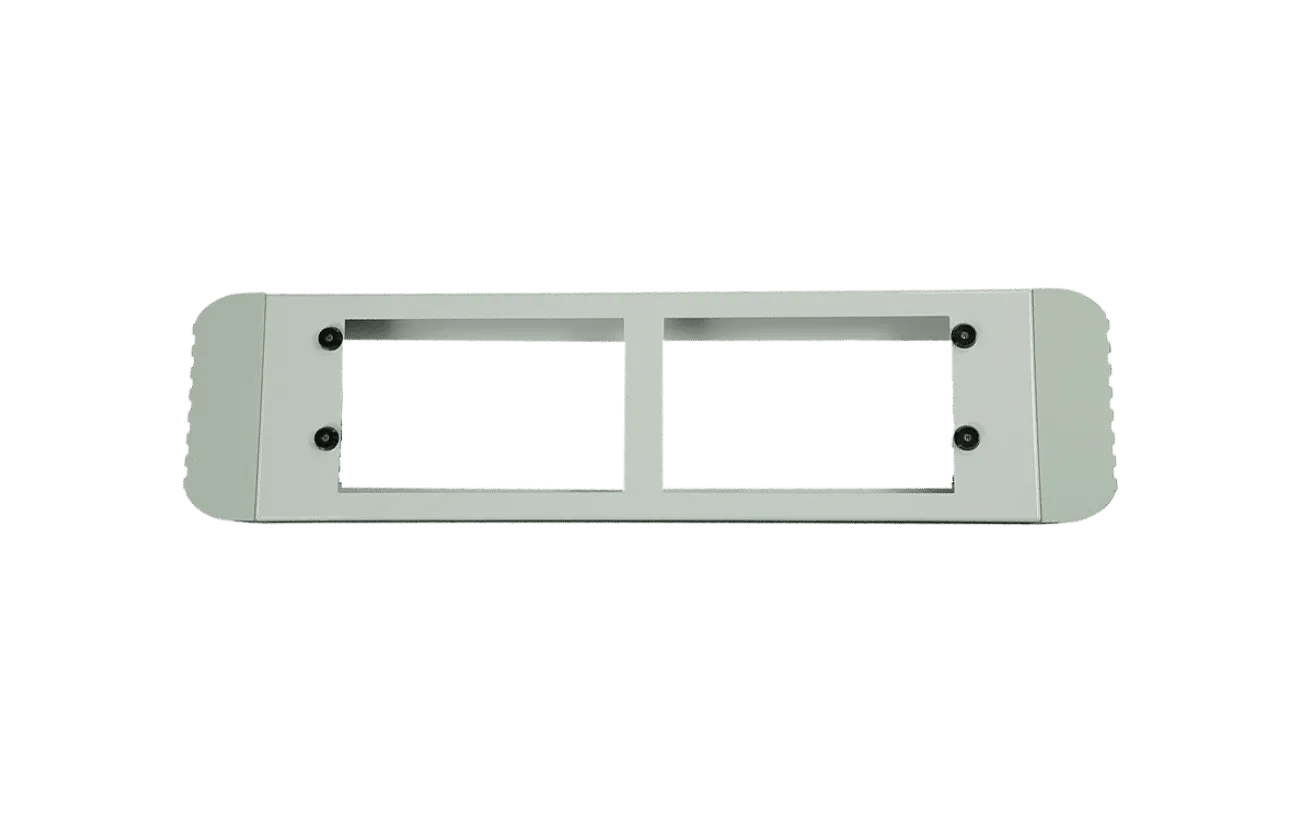

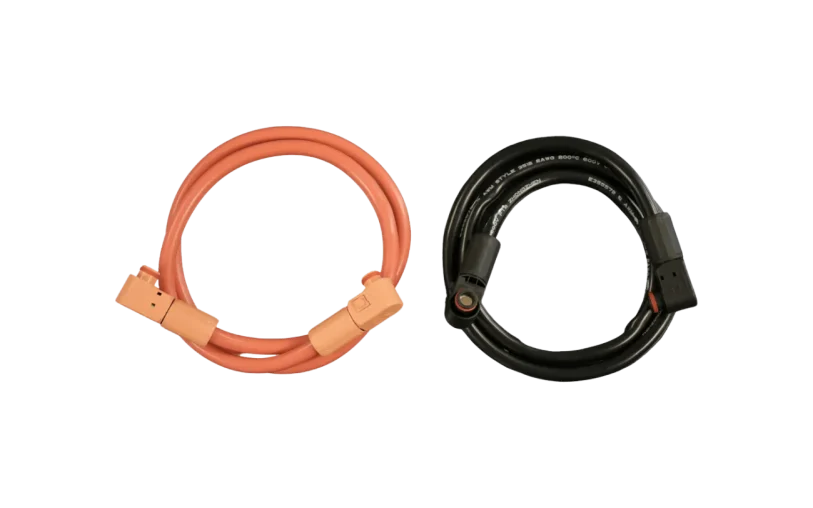

This kit comes with the 2 ETHOS battery modules, a rack base, and each power and communication cable needed to easily connect your additional batteries to your existing ETHOS System.
Whether you’re looking to ensure emergency backup power is always available, or you’re looking to outfit your home with a powerful solar system, the ETHOS ensures reliable, efficient power delivery day in and day out, allowing you to save on utilities, or get rewarded for giving back to the grid through net metering programs and other tax incentives. Take control of your home’s power and shop the 48V ETHOS & ETHOS Expansion Kits today!
300%
10 Year Savings Vs Lead-Acid
1/3
4X
100%
Tech Specs
SKU: | KIT0698 |
GTIN-12 (U.P.C.): | 850061252173 |
System Voltage: | 48V |
Nominal Voltage: | 51.2V |
Chemistry: | LiFePO4 |
kWh Capacity: | 10.24kWh |
Ah Capacity: | 200Ah |
Charging Voltage Range: | 55.6 - 57V |
Max Charge Voltage: | 57V |
Operating Voltage Range: | 48 – 57V |
Suggested Low Voltage Cutoff: | 48 – 50.8V |
Cell Configuration: | 16S 2P |
Max Continuous Discharge Current: | 200A |
Max Continuous Power: | 10240W |
Max Discharge Peak Current: | 300A (Max 5 seconds) |
Max Charge Current: | 200A |
Charge Temperature Range: | 32°F - 113°F (0°C - 45°C) |
Discharge Temperature Range: | -4°F - 140°F (-20°C - 60°C) |
Optimal Discharge Temperature Range: | 59°F - 95°F (15°C - 35°C) |
Storage Temperature Range (SoC >50%): | -4°F - 113°F (-20°C - 45°C) (Max 6 months) |
Weight: | 273 lb (123.8 kg) |
Depth: | 6.7 in (170 mm) |
Width: | 26.5 in (674 mm) |
Height: | 43.3 in (1100 mm) |
Max Connections: | Up to (16) parallel connections per control box |
Protection Rating: | IP65 |
Communications: | CANBus / RS485 |
Certifications: | UL9540, UL9540a, UL1973, & UN38.3 |
Spec Sheet Download: | Click Here |
User Manual Download: | Click Here |
UL9540 Certification Download: | Click Here |
Safety Data Sheet Download: | Click Here |
Designed For 48V Applications
- RESIDENTIAL POWER SYSTEMS
- HOME SOLAR SYSTEMS
- UL-CERTIFIED ESS
- CABINS & TINY HOMES
- FAMILY HOMES & MANSIONS
- OFF-GRID HOMESTEADS
- EMERGENCY POWER
- WHOLE HOME BACKUP
- LEAD ACID REPLACEMENT
For more information or larger quantity inquiries, visit our B2B page or please call our sales team at #(818) 280-3091
