ETHOS Control Box

SKU# CNT060

Change inverter or battery

Loading specifications…
SKU: CNT060 Category:

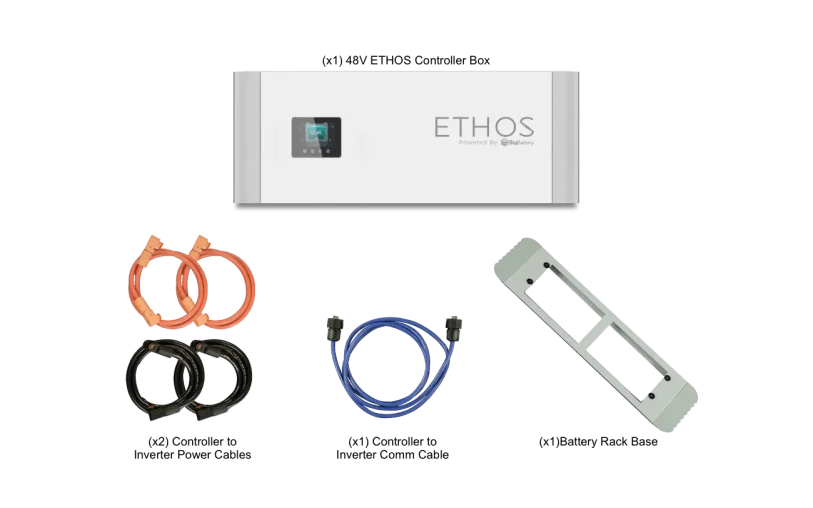

Items Included

ETHOS Control Box
INCLUDED FREE IN BOX:

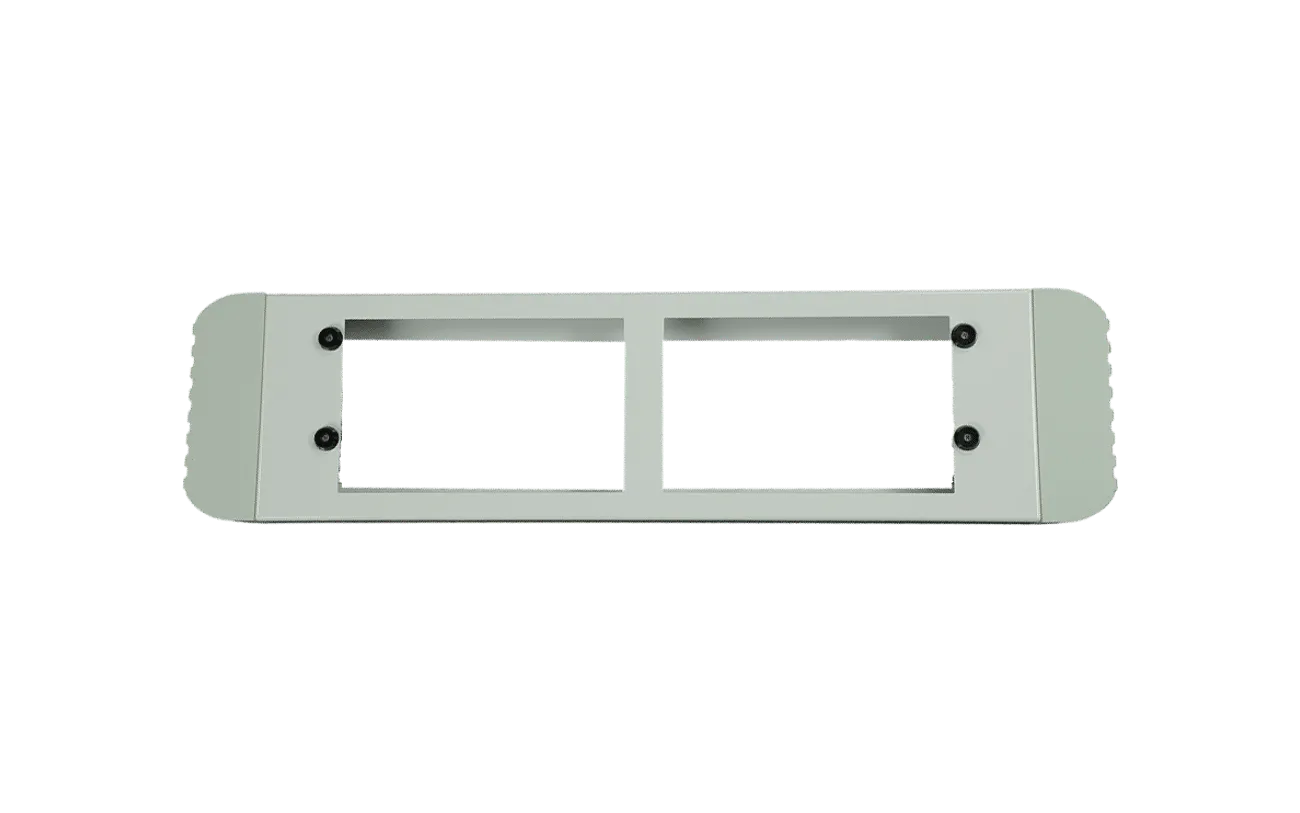

(1) ETHOS Rack Base

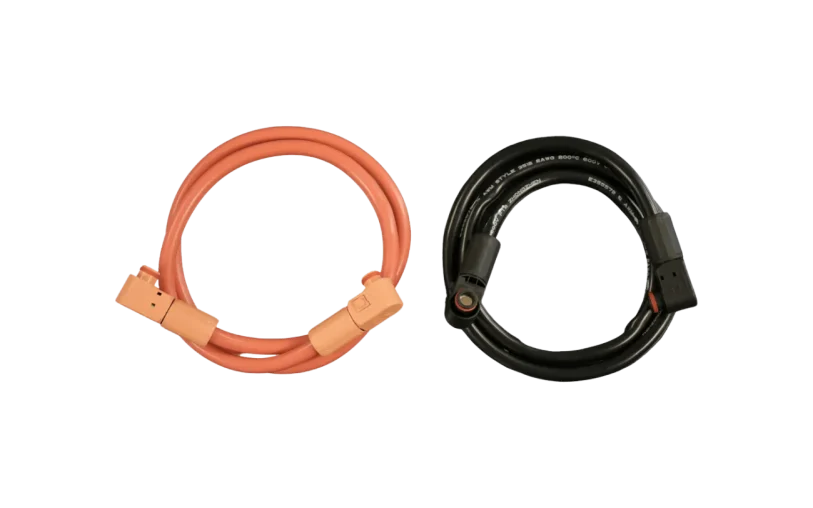

(2) Red & Black Controller to Inverter Power Cable (4.9 FT)
(1) Controller to Inverter Comm Cable (4.9 FT)
$280.00
Orders over $3,000 Qualify For Free Shipping!

-

Documents & Certifications

About this item

The ETHOS Control Box is the central hub that connects your inverter and ETHOS battery modules, regulating and monitoring system performance. The front LED interface provides at-a-glance visibility into system voltage, remaining capacity, BMS status codes, and inverter communication settings, so you can quickly assess health and operation. This unit is not a battery and must be paired with at least two stackable 48V 5.12kWh ETHOS battery modules to form a complete, working system.

Designed For 48V Applications
  • RESIDENTIAL POWER SYSTEMS
  • HOME SOLAR SYSTEMS
  • UL-CERTIFIED ESS
  • CABINS & TINY HOMES
  • FAMILY HOMES & MANSIONS
  • OFF-GRID HOMESTEADS
  • EMERGENCY POWER
  • WHOLE HOME BACKUP

Battery Downloads

SKU#:CNT060
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
CEC Listing – BigBattery ETHOS:Go to linkGO TO LINK

Battery Specifications

Operating Voltage Range:30 – 60V
Max Continuous Discharge Current:200A
Max Charge Current:200A
Charge Temperature Range:-4°F – 122°F (-20°C – 50°C)
Discharge Temperature Range:-4°F – 122°F (-20°C – 50°C)
Optimal Discharge Temperature Range:-4°F – 122°F (-20°C – 50°C)
Weight:22 lb (10 kg)
Depth:6.7 in (170 mm)
Width:26.5 in (674 mm)
Height:8.3 in (211 mm)
Max Connections:Up to (16) parallel connections per control box
Communications:CANBus / RS485

BigBattery batteries are backed by a 12-year warranty, giving you reliable long-term performance and confidence in every charge. Designed for durability and engineered to last, our batteries are built to power your setup for over a decade. For more information, please visit our policy page

Designed For 48V Applications
  • RESIDENTIAL POWER SYSTEMS
  • HOME SOLAR SYSTEMS
  • UL-CERTIFIED ESS
  • CABINS & TINY HOMES
  • FAMILY HOMES & MANSIONS
  • OFF-GRID HOMESTEADS
  • EMERGENCY POWER
  • WHOLE HOME BACKUP

Battery Downloads

SKU#:CNT060
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
CEC Listing – BigBattery ETHOS:Go to linkGO TO LINK

Battery Specifications

Operating Voltage Range:30 – 60V
Max Continuous Discharge Current:200A
Max Charge Current:200A
Charge Temperature Range:-4°F – 122°F (-20°C – 50°C)
Discharge Temperature Range:-4°F – 122°F (-20°C – 50°C)
Optimal Discharge Temperature Range:-4°F – 122°F (-20°C – 50°C)
Weight:22 lb (10 kg)
Depth:6.7 in (170 mm)
Width:26.5 in (674 mm)
Height:8.3 in (211 mm)
Max Connections:Up to (16) parallel connections per control box
Communications:CANBus / RS485

BigBattery batteries are backed by a 12-year warranty, giving you reliable long-term performance and confidence in every charge. Designed for durability and engineered to last, our batteries are built to power your setup for over a decade. For more information, please visit our policy page

×
