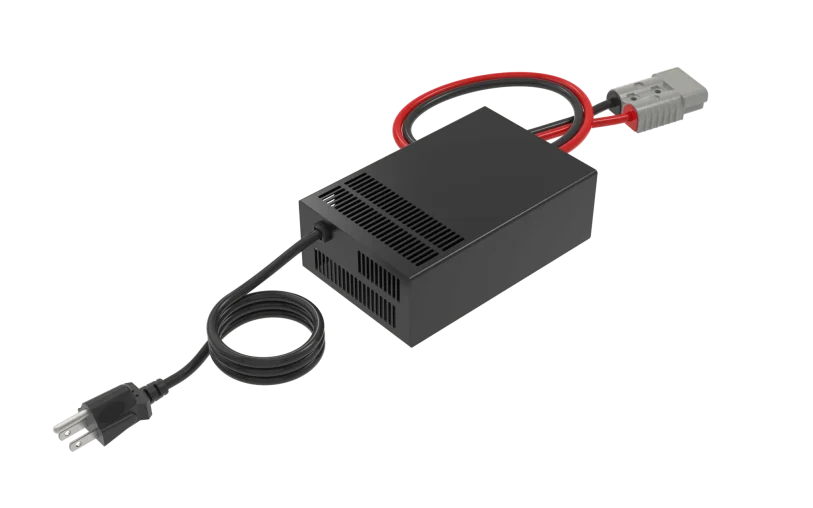

12V 110V AC 60A Lithium Charger (14.6V DC)

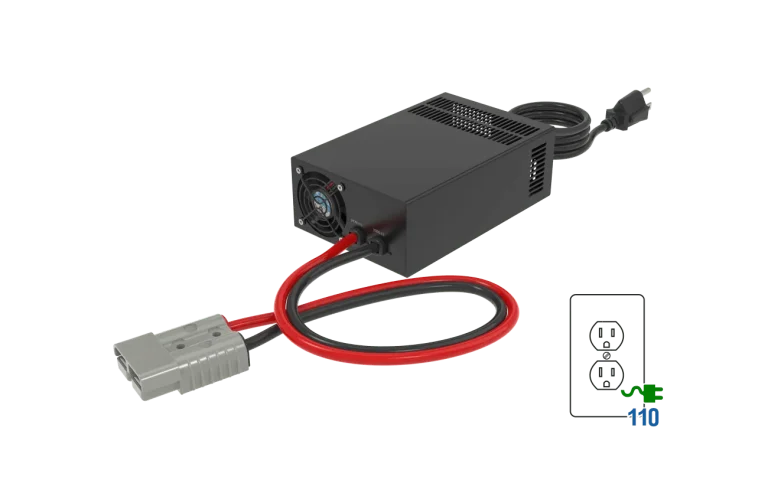

12V 110V AC 60A Lithium Charger (14.6V DC) - Image 2

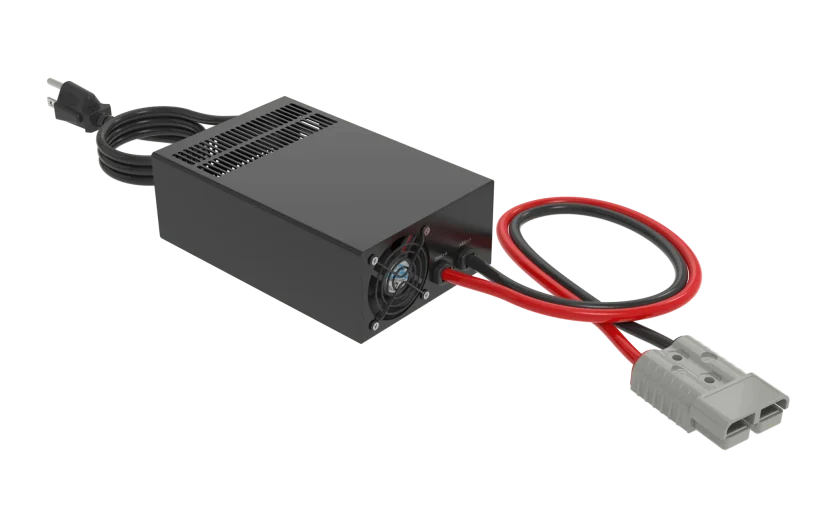

12V 110V AC 60A Lithium Charger (14.6V DC) - Image 3
  • U.S. Support

12V 110V AC 60A Lithium Charger (14.6V DC)

SKU# PWS015

Change inverter or battery

Loading specifications…
SKU: PWS015 Categories: ,

Items Included

This charger (CHG1001) is only compatible with: 12V RAZORBACK, 12V OWL, 12V OWL MAX 2, 12V SEAL. If you use a different battery, you must pair with the correct BigBattery charger.
$245.00$220.00
YOU SAVED: $25.00
Orders over $3,000 Qualify For Free Shipping!

-

Contact Us
About this item

12V RAZORBACK

12V OWL

12V OWL MAX 2

12V SEAL



Safely and reliably charge your 12V batteries with this high-tech charger from BigBattery. With an easy Anderson-style connection for your battery, and a 110VAC cable for plugging directly into any standard wall outlet, you’ll be plugging in, charging up, and getting back to business in no time. Plus, with a compact, portable form factor, this charger ensures you always have power when and where you need it.

Tech Specs

SKU: PWS015
Voltage: 12V
Input Voltage: 110V AC
Max. Output Voltage: 14.6
Max. Output Current: 60A
Output Frequency: 50/60Hz
Connection Type: 175A Anderson

DIMENSIONS

Weight: 3.4 lbs
Depth: 8 in
Width: 5.2 in
Height: 2.75 in
DC Cable Length: 22.3 in
AC Cable Length: 23.2 in

Tech Specs

SKU: PWS015
Voltage: 12V
Input Voltage: 110V AC
Max. Output Voltage: 14.6
Max. Output Current: 60A
Output Frequency: 50/60Hz
Connection Type: 175A Anderson

DIMENSIONS

Weight: 3.4 lbs
Depth: 8 in
Width: 5.2 in
Height: 2.75 in
DC Cable Length: 22.3 in
AC Cable Length: 23.2 in

Frequently Asked Questions

Will this charger work with my Husky 2?

No. This charger (PWS015) is built for the 12V RAZORBACK, 12V OWL, 12V OWL MAX 2 and 12V SEAL. The Husky 2 needs a different BigBattery charger. Pairing a charger to the wrong battery risks incorrect charge voltage, so always match the charger to your specific model.

Can I charge a LiFePO4 battery with a normal charger?

Not reliably. Lead-acid and AGM chargers use absorption and float voltages designed for a different chemistry, which typically leaves a lithium battery undercharged and can confuse the BMS. A LiFePO4 charger delivers the right profile, in this case up to 14.6V DC, which is what a 12V lithium pack actually needs.

What voltage should a 12V LiFePO4 charger be?

A 12V LiFePO4 pack is nominally 12.8V and needs a charger that tops out around 14.4V to 14.6V. This unit delivers a maximum 14.6V DC at up to 60A. Anything materially higher risks the BMS cutting out; anything lower leaves capacity on the table.

How long does it take to charge at 60 amps?

Roughly speaking, divide the battery's amp hours by the charge current. A 200Ah pack from empty takes a little over three hours at 60A, allowing for the taper near full. Charge time scales with capacity, so a larger bank on the same charger takes proportionally longer.

How does this charger connect to the battery?

It uses a 175A Anderson-style connector on the DC side and a standard 110V AC cable on the input, so it plugs straight into any wall outlet. At 3.4 lbs with 22-inch DC and 23-inch AC cables, it is compact enough to carry between vehicles or store in a cabinet.

×
