Product Summary:

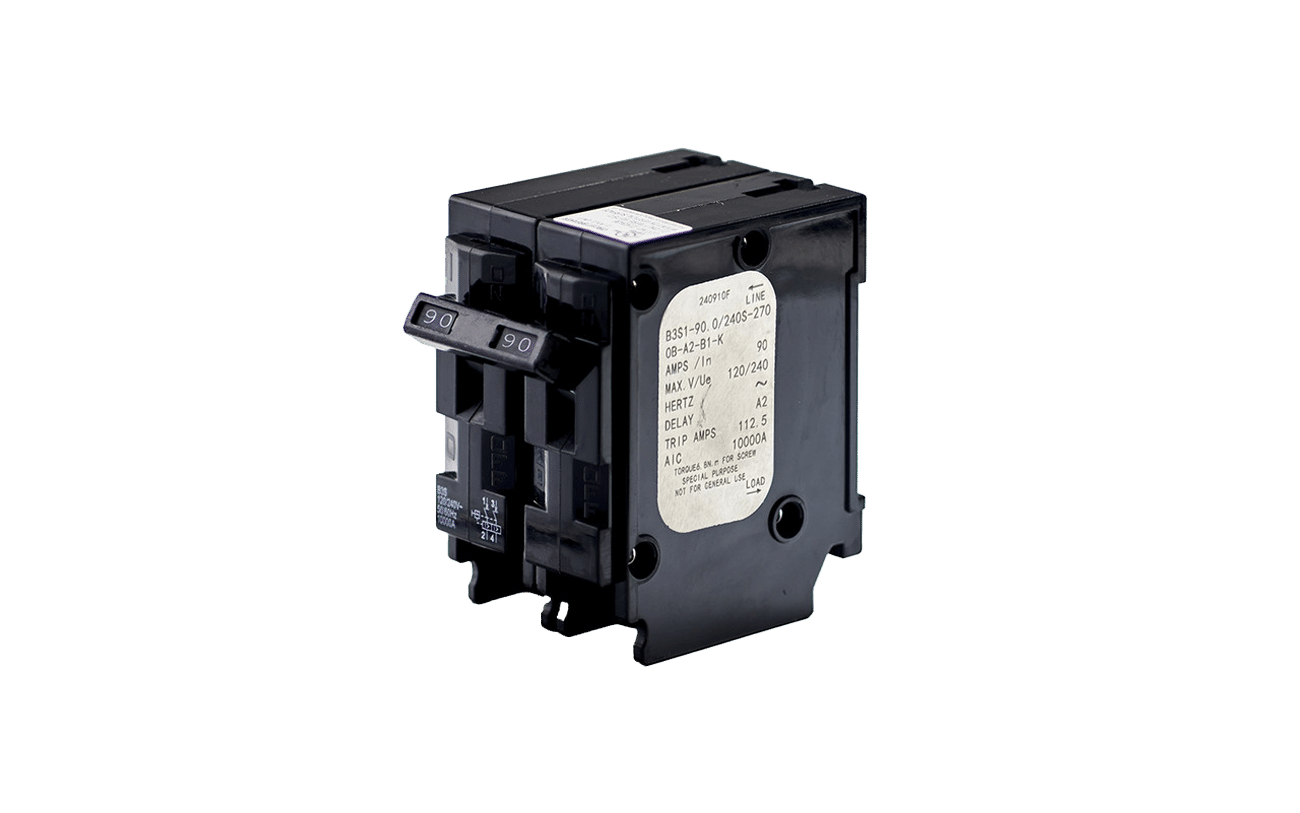

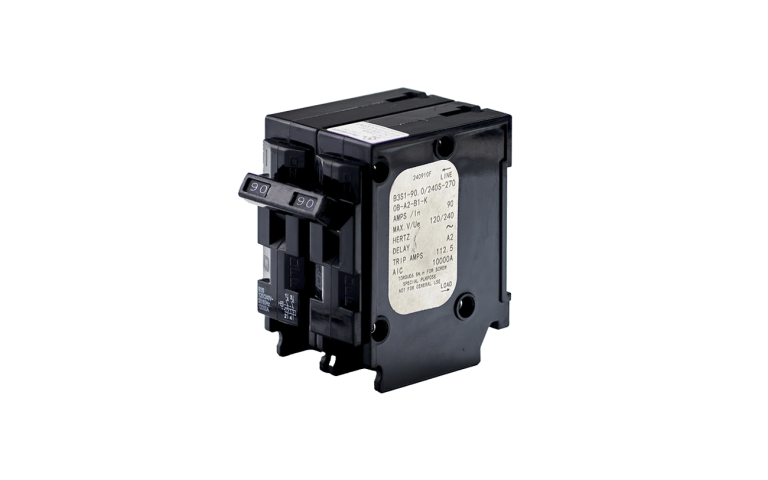

This 90A AC Circuit Breaker is designed to provide reliable overload and short circuit protection for your EG4 power system. Durably constructed and designed specifically to be compatible with EG4’s FlexBOSS21 Hybrid Inverter, this standards-compliant circuit breaker ensures seamless integration and enhanced safety for both residential and commercial applications, featuring trip-free operation, a high-interrupting capacity, and an indicating handle. Ensure your EG4 system has advanced protections with this 90A AC Circuit Breaker today.
Current Rating: 90A
Voltage Rating: 120VAC / 240VAC
Insulation Voltage Rating: 500V
Impulse Withstand Voltage Rating: 4000V
Interrupting Capacity: Up to 10000A
Operating Temperature Range: -40ºF – 185ºF (-40ºC – 85ºC)
Torque Range: 2.8 – 6.8 Nm
Electrical Lifespan: ~6,000 cycles
Mechanical Lifespan: ~10,000 cycles
Protections: PV Reverse Polarity, Over-Voltage, & Surge
Current Rating: 90A
Voltage Rating: 120VAC / 240VAC
Insulation Voltage Rating: 500V
Impulse Withstand Voltage Rating: 4000V
Interrupting Capacity: Up to 10000A
Operating Temperature Range: -40ºF – 185ºF (-40ºC – 85ºC)
Torque Range: 2.8 – 6.8 Nm
Electrical Lifespan: ~6,000 cycles
Mechanical Lifespan: ~10,000 cycles
Protections: PV Reverse Polarity, Over-Voltage, & Surge
