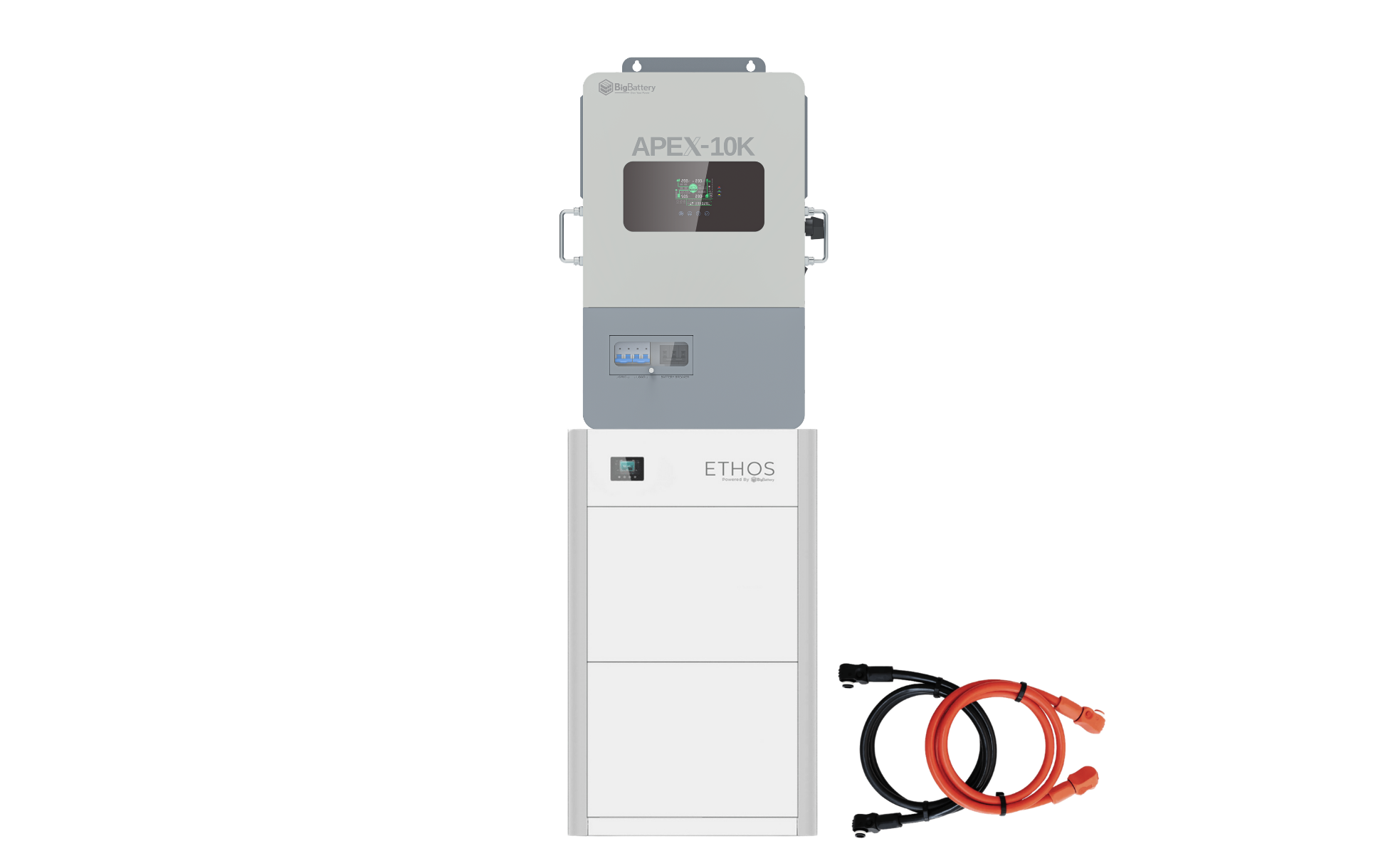

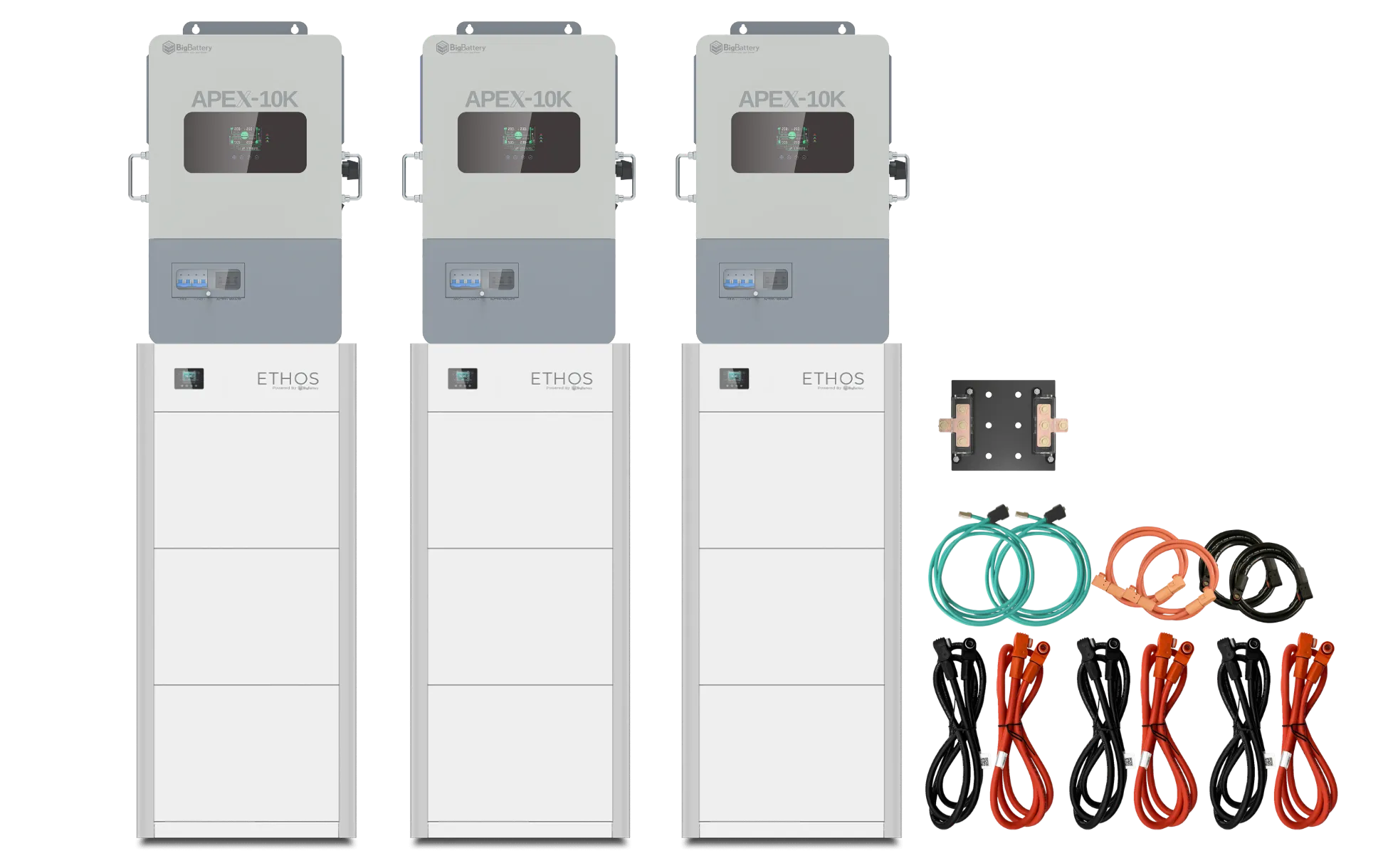

BigBattery ETHOS Battery & APEX-10K Inverter | 10.24–30.72kWh | Off- Grid System

SKU# K0311

Documents & Certifications

About this item

The BigBattery ETHOS™ + EG4 6000XP ESS System is a compact, modular energy solution designed for both on-grid and off-grid applications. Combining the scalable ETHOS 48V LiFePO₄ battery system with the efficient EG4 6000XP inverter-charger, this system delivers reliable, flexible energy for tiny homes, cabins, and backup power setups.



The EG4 6000XP provides up to 6,000W split-phase output with solar input support and seamless integration of battery, solar, and generator power. Paired with the ETHOS battery system – expandable up to 80+ kWh – this setup ensures long-lasting, maintenance-free energy storage with consistent performance.



Built with advanced battery management, and U.S.-engineered design, this system delivers safe, intelligent energy control with closed-loop communication and real-time monitoring. Ideal for backup power, energy savings, and full off-grid independence.

Ships From: Texas, USA
Warranty: 12 Years (Battery), 5 Years (Inverter)
Support: Lifetime USA-Based Tech Support



Compatibility

Integrated & Optimized System:

  • ETHOS Battery System + EG4 6000XP Inverter-Charger

Expandable & Flexible:

  • Scalable ETHOS battery capacity up to 80+ kWh
  • Compatible with additional ETHOS modules for future expansion
  • Supports grid-tied, hybrid, and off-grid installations
Key Features
  • Complete ESS SolutionBattery + inverter system designed to work seamlessly together
  • 6,000W Split-Phase OutputReliable power for small homes, cabins, and backup systems
  • LiFePO₄ Battery ChemistrySafe, stable lithium technology with long lifespan
  • 6,000+ Cycle LifeBuilt for years of daily use and long-term savings
  • Closed-Loop CommunicationOptimized coordination between battery and inverter
  • Advanced BMS ProtectionMulti-layer protection for safe and reliable operation
  • Modular ExpansionEasily scale storage capacity as energy needs grow
  • Solar + Generator ReadyFlexible input options for continuous energy availability
  • UPS Backup CapabilitySeamless transition during outages
  • Remote Monitoring & ControlReal-time system tracking and performance insights
  • Maintenance-Free OperationNo routine servicing required

A compact, scalable energy storage system built for reliability, flexibility, and long-term energy independence – perfect for smaller off-grid and backup applications.

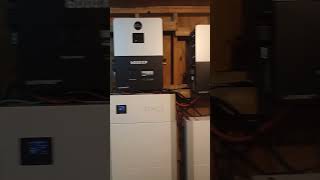

Real Installations From Customers Like You!

Enter your build here to show off your build and receive a gift-box from us! Selected photos will be featured on our website and product pages.

Newcomerstown, OH
St. Joseph, MI
Riverside, CA
Denver, CO
Mojave, AZ
San Antonio, TX

.

Battery Downloads

SKU#:FETHS-48051-G1
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
UL9540A Certificate:DownloadDOWNLOAD
UL1973 Certificate:DownloadDOWNLOAD
UN38.3 Certificate:DownloadDOWNLOAD
Safety Data Sheet:DownloadDOWNLOAD
CEC Listing- BigBattery ETHOS:Go to linkGO TO LINK

Battery Specifications

GTIN-12 (U.P.C.):850061252005
System Voltage:48V
Nominal Voltage:51.2V
Chemistry:LiFePO4
kWh Capacity:5.12 – 92.16 kWh
Ah Capacity:200Ah
Charging Voltage Range:55.6 – 57V
Max Charge Voltage:57V
Operating Voltage Range:48 – 57V
Suggested Low Voltage Cutoff:48 – 50.8V
BMS Cutoff Range:42 – 47V
Cell Configuration:16S 2P
Max Continuous Discharge Current:200A
Max Continuous Power:10240W
Max Discharge Peak Current:300A (Max 5 seconds)
Max Charge Current:200A
Charge Temperature Range:32°F – 113°F (0°C – 45°C)
Discharge Temperature Range:-4°F – 140°F (-20°C – 60°C)
Optimal Discharge Temperature Range:59°F – 95°F (15°C – 35°C)
Storage Temperature Range (SoC >50%):-4°F – 113°F (-20°C – 45°C)(Max 6 months)
Weight:273 lb (123.8 kg)
Depth:6.7 in (170 mm)
Width:26.5 in (674 mm)
Height:43.3 in (1100 mm)
Max Connections:Up to (16) parallel connections per control box
Protection Rating:IP65 / NEMA 4X
Communications:CANBus / RS485
Certifications:UL9540, UL9540A, UL1973, & UN38.3

Inverter Downloads

SKU#:INV035
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
APEX-10K Quick Start Guide:DownloadDOWNLOAD

Inverter Specifications

Document Title:APEX-6.5K & APEX 10K INVERTER SPECIFICATIONS
Brand:BigBattery
GTIN/UPC(APEX-6.5K/APEX-10K): 00199874185712 / 00199874999463
Model:APEX-6.5K / APEX-10K
Rated Output Power:APEX-6.5K: 6,500W; APEX-10K: 10,000W
Max. Output Power:APEX-6.5K: 13,000VA; APEX-10K: 20,000VA
Rated Output Voltage:120/240 Vac (single-phase / split-phase)
Load capacity of motors:APEX-6.5K: 4 HP; APEX-10K: 6 HP
Rated Frequency:50/60Hz
Output Wave:Pure sine wave
Switching Time:10ms (typical value)
Battery Type:Lithium-ion battery / lead-acid battery / user-defined battery
Rated Battery Voltage:48V
Voltage Range:40–60Vdc
Max. Solar Charging Current:APEX-6.5K: 140A; APEX-10K: 200A
Max. Grid / Generator Charging Current:APEX-6.5K: 80A; APEX-10K: 120A
Max. Hybrid Charge Current:APEX-6.5K: 140A; APEX-10K: 200A
Section:Solar input
No. of MPPT:1 + 1
Max. Input Power:APEX-6.5K: 5,000W + 5,000W; APEX-10K: 5,000W + 5,500W
Max. Input Current:APEX-6.5K: 18A + 18A; APEX-10K: 22A + 22A
Max. Open Circuit Voltage:550Vdc + 550Vdc
MPPT Voltage Range:125–450Vdc
Input Voltage Range:65–140Vac
Input Frequency Range:50/60Hz
Bypass Overload Current:APEX-6.5K: 40A; APEX-10K: 63A
AC Inputs:APEX-6.5K: 2 inputs (Grid & Generator); APEX-10K: 1 input (Grid or Generator)
Max. Efficiency:99.9%
MPPT Tracking Efficiency:APEX-6.5K: 93%; APEX-10K: 92%
Parallel Capacity:Up to 6 units (3 or more units in parallel can form a three-phase output)
Dimension:APEX-6.5K: 25.51 × 16.14 × 5.51 inches; APEX-10K: 28.46 × 17.64 × 5.91 inches
Weight:APEX-6.5K: 48 lbs; APEX-10K: 62 lbs
Protection Degree:IP20 (indoor only)
Temperature:14–131°F, derate above 113°F
External Module (Optional):Wi-Fi / GPRS
Certificate:UL1741 / RoHS / EN61000-6-1 / EC61000-6-3 / FCC Part15 Class B / IEC62109-1 / IEC62109-2
Noise:<60dB
Cooling Method:Intelligent fan
Warranty:5 years
Communication:RS485 / CAN / USB / Dry contact
Integrated Circuit Breaker:Utility / Load / Battery / PV
Section:Overload protection
Overload protection behavior:After overload protection is enabled, the inverter output will be restored after 3 minutes, and after 5 times of overload, the output will be off until the inverter is restarted. (102% < APEX-10K load < 110%): an error will be reported and the output will be turned off after 5 minutes. (110% < load < 125%): an error will be reported and the output will be turned off after 10 seconds. Load > 125%: an error will be reported and the output will be turned off after 5 seconds.
Protection features:Has PV input current limiting protection, PV input over-voltage protection, PV night reverse current protection, AC input over-voltage protection, AC input under-voltage protection, battery over-voltage protection, battery under-voltage protection, battery over-current protection, AC output short-circuit protection, heat sink over-temperature protection, inverter over-load protection.

BigBattery batteries are backed by a 12-year warranty, giving you reliable long-term performance and confidence in every charge. Designed for durability and engineered to last, our batteries are built to power your setup for over a decade. For more information, please visit our policy page



Real Installations From Customers Like You!

Enter your build here to show off your build and receive a gift-box from us! Selected photos will be featured on our website and product pages.

Newcomerstown, OH
St. Joseph, MI
Riverside, CA
Denver, CO
Mojave, AZ
San Antonio, TX

.

.

Battery Downloads

SKU#:FETHS-48051-G1
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
UL9540A Certificate:DownloadDOWNLOAD
UL1973 Certificate:DownloadDOWNLOAD
UN38.3 Certificate:DownloadDOWNLOAD
Safety Data Sheet:DownloadDOWNLOAD
CEC Listing- BigBattery ETHOS:Go to linkGO TO LINK

Battery Specifications

GTIN-12 (U.P.C.):850061252005
System Voltage:48V
Nominal Voltage:51.2V
Chemistry:LiFePO4
kWh Capacity:5.12 – 92.16 kWh
Ah Capacity:200Ah
Charging Voltage Range:55.6 – 57V
Max Charge Voltage:57V
Operating Voltage Range:48 – 57V
Suggested Low Voltage Cutoff:48 – 50.8V
BMS Cutoff Range:42 – 47V
Cell Configuration:16S 2P
Max Continuous Discharge Current:200A
Max Continuous Power:10240W
Max Discharge Peak Current:300A (Max 5 seconds)
Max Charge Current:200A
Charge Temperature Range:32°F – 113°F (0°C – 45°C)
Discharge Temperature Range:-4°F – 140°F (-20°C – 60°C)
Optimal Discharge Temperature Range:59°F – 95°F (15°C – 35°C)
Storage Temperature Range (SoC >50%):-4°F – 113°F (-20°C – 45°C)(Max 6 months)
Weight:273 lb (123.8 kg)
Depth:6.7 in (170 mm)
Width:26.5 in (674 mm)
Height:43.3 in (1100 mm)
Max Connections:Up to (16) parallel connections per control box
Protection Rating:IP65 / NEMA 4X
Communications:CANBus / RS485
Certifications:UL9540, UL9540A, UL1973, & UN38.3

Inverter Downloads

SKU#:INV035
Spec Sheet:DownloadDOWNLOAD
User Manual:DownloadDOWNLOAD
APEX-10K Quick Start Guide:DownloadDOWNLOAD

Inverter Specifications

Document Title:APEX-6.5K & APEX 10K INVERTER SPECIFICATIONS
Brand:BigBattery
GTIN/UPC(APEX-6.5K/APEX-10K): 00199874185712 / 00199874999463
Model:APEX-6.5K / APEX-10K
Rated Output Power:APEX-6.5K: 6,500W; APEX-10K: 10,000W
Max. Output Power:APEX-6.5K: 13,000VA; APEX-10K: 20,000VA
Rated Output Voltage:120/240 Vac (single-phase / split-phase)
Load capacity of motors:APEX-6.5K: 4 HP; APEX-10K: 6 HP
Rated Frequency:50/60Hz
Output Wave:Pure sine wave
Switching Time:10ms (typical value)
Battery Type:Lithium-ion battery / lead-acid battery / user-defined battery
Rated Battery Voltage:48V
Voltage Range:40–60Vdc
Max. Solar Charging Current:APEX-6.5K: 140A; APEX-10K: 200A
Max. Grid / Generator Charging Current:APEX-6.5K: 80A; APEX-10K: 120A
Max. Hybrid Charge Current:APEX-6.5K: 140A; APEX-10K: 200A
Section:Solar input
No. of MPPT:1 + 1
Max. Input Power:APEX-6.5K: 5,000W + 5,000W; APEX-10K: 5,000W + 5,500W
Max. Input Current:APEX-6.5K: 18A + 18A; APEX-10K: 22A + 22A
Max. Open Circuit Voltage:550Vdc + 550Vdc
MPPT Voltage Range:125–450Vdc
Input Voltage Range:65–140Vac
Input Frequency Range:50/60Hz
Bypass Overload Current:APEX-6.5K: 40A; APEX-10K: 63A
AC Inputs:APEX-6.5K: 2 inputs (Grid & Generator); APEX-10K: 1 input (Grid or Generator)
Max. Efficiency:99.9%
MPPT Tracking Efficiency:APEX-6.5K: 93%; APEX-10K: 92%
Parallel Capacity:Up to 6 units (3 or more units in parallel can form a three-phase output)
Dimension:APEX-6.5K: 25.51 × 16.14 × 5.51 inches; APEX-10K: 28.46 × 17.64 × 5.91 inches
Weight:APEX-6.5K: 48 lbs; APEX-10K: 62 lbs
Protection Degree:IP20 (indoor only)
Temperature:14–131°F, derate above 113°F
External Module (Optional):Wi-Fi / GPRS
Certificate:UL1741 / RoHS / EN61000-6-1 / EC61000-6-3 / FCC Part15 Class B / IEC62109-1 / IEC62109-2
Noise:<60dB
Cooling Method:Intelligent fan
Warranty:5 years
Communication:RS485 / CAN / USB / Dry contact
Integrated Circuit Breaker:Utility / Load / Battery / PV
Section:Overload protection
Overload protection behavior:After overload protection is enabled, the inverter output will be restored after 3 minutes, and after 5 times of overload, the output will be off until the inverter is restarted. (102% < APEX-10K load < 110%): an error will be reported and the output will be turned off after 5 minutes. (110% < load < 125%): an error will be reported and the output will be turned off after 10 seconds. Load > 125%: an error will be reported and the output will be turned off after 5 seconds.
Protection features:Has PV input current limiting protection, PV input over-voltage protection, PV night reverse current protection, AC input over-voltage protection, AC input under-voltage protection, battery over-voltage protection, battery under-voltage protection, battery over-current protection, AC output short-circuit protection, heat sink over-temperature protection, inverter over-load protection.

BigBattery batteries are backed by a 12-year warranty, giving you reliable long-term performance and confidence in every charge. Designed for durability and engineered to last, our batteries are built to power your setup for over a decade. For more information, please visit our policy page

Frequently Asked Questions

Which ETHOS and APEX 10K capacity should I buy on Black Friday?

Start with daily energy use and desired days of backup, then choose among the battery capacity options offered on the page. Higher kWh storage can extend runtime, while the APEX 10K inverter defines power delivery.

Is a larger ETHOS battery bundle always the better Cyber Monday deal?

Not necessarily. Compare cost per usable kWh, expected load, charging resources, and expansion plans. Oversizing storage without enough solar or generator charging capacity may not improve practical value.

×
